521 SSE (621502x37NA) - Husqvarna 21" Snow Blower (2006-11) Discharge Chute Group Parts Diagram

21" Snow Blower

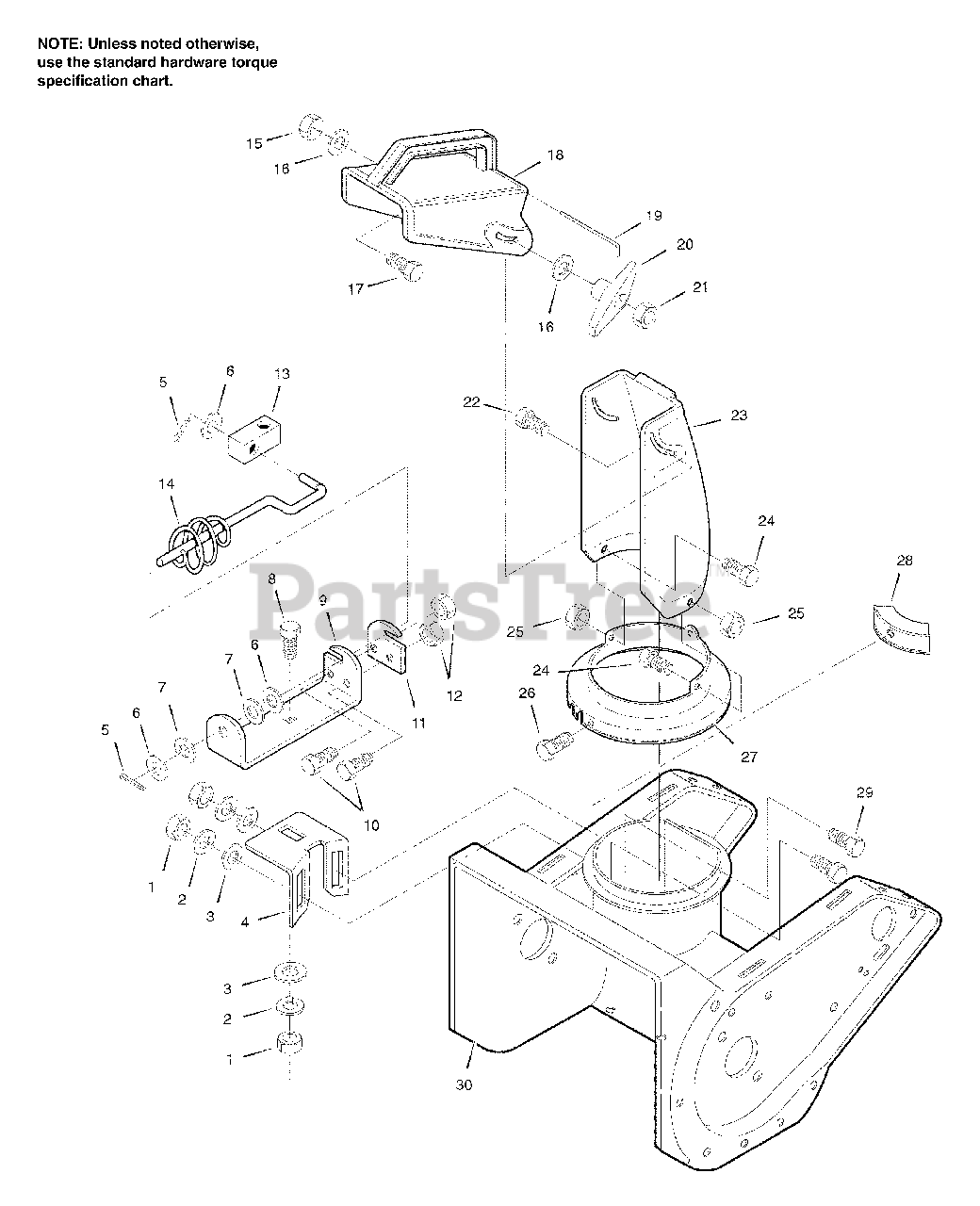

Discharge Chute Group Parts Diagram

  • Title
1

Husqvarna 601400007

NUT, .31-18 HEX

$

$

Not available

2

Husqvarna 601400079

WASHER, LOCK
(Superseded to 532198552)

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 601400081

WASHER, FLAT .349-0.69-.07

$

$

Not available

4

Husqvarna 601400025

BRKT, WORM ADJUST

$

$

Not available

5

Husqvarna 601400083

PIN, COTTER.094 x 0.75L

$

$

Not available

6

Husqvarna 601400003

WASHER, FLAT .400-0.75-.02

$

$

Not available

7

Husqvarna 601001404

WASHER, SPRING .395-0.73-.01

$

$

Not available

8

Husqvarna 601001411

BOLT, CARRIAGE .31-18 x 0.75

$

$

Not available

9

Husqvarna 601400019

BRACKET, CHUTE ROD HOLE

$

$

Not available

10

Husqvarna 601400045

SCREW, .25-20 x 0.50 Hex Head Cap

$

$

Not available

11

Husqvarna 601400027

PLATE, CHUTE ROD

$

$

Not available

12

Husqvarna 601400086

NUT, LOCK .25-20 Hex

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 601001811

BLOCK, PIVOT CHUTE

$

$

Not available

14

Husqvarna 601001810

ROD ASSEMBLY, LOWER CHUTE

$

$

Not available

15

Husqvarna 601400085

NUT, LOCK .31-18 HEX

$

$

Not available

16

Husqvarna 601400081

WASHER, FLAT .349-0.69-.07

$

$

Not available

17

Husqvarna 601002038

SCREW, .31-18 x 0.75

$

$

Not available

18

Husqvarna 601400049

CHUTE, UPPER
(Superseded to 601505194)

$

$

Not available

19

Husqvarna 601001389

WIRE FORM, HINGE

$

$

Not available

20

$14.99

$

In Stock, only 1 left!

0

21

Husqvarna 601400007

NUT, .31-18 HEX

$

$

Not available

22

Husqvarna 601001390

BOLT, CARRIAGE .31-18 x 1.50

$

$

Not available

23

Husqvarna 601400050

CHUTE, LOWER
(Superseded to 601505191)

$

$

Not available

24

Husqvarna 601400045

SCREW, .25-20 x 0.50

$

$

Not available

25

Husqvarna 601400086

NUT, LOCK .25-20

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 601001802

SCREW, .25-14 x 0.62

$

$

Not available

27

Husqvarna 601400008

CHUTE RING

$

$

Not available

28

Husqvarna 601001803

CLIP, CHUTE RING

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 601001411

BOLT, CARRIAGE .31-18 x 0.75

$

$

Not available

30

Husqvarna 601400058

AUGER HOUSING, 21"

$

$

Not available
