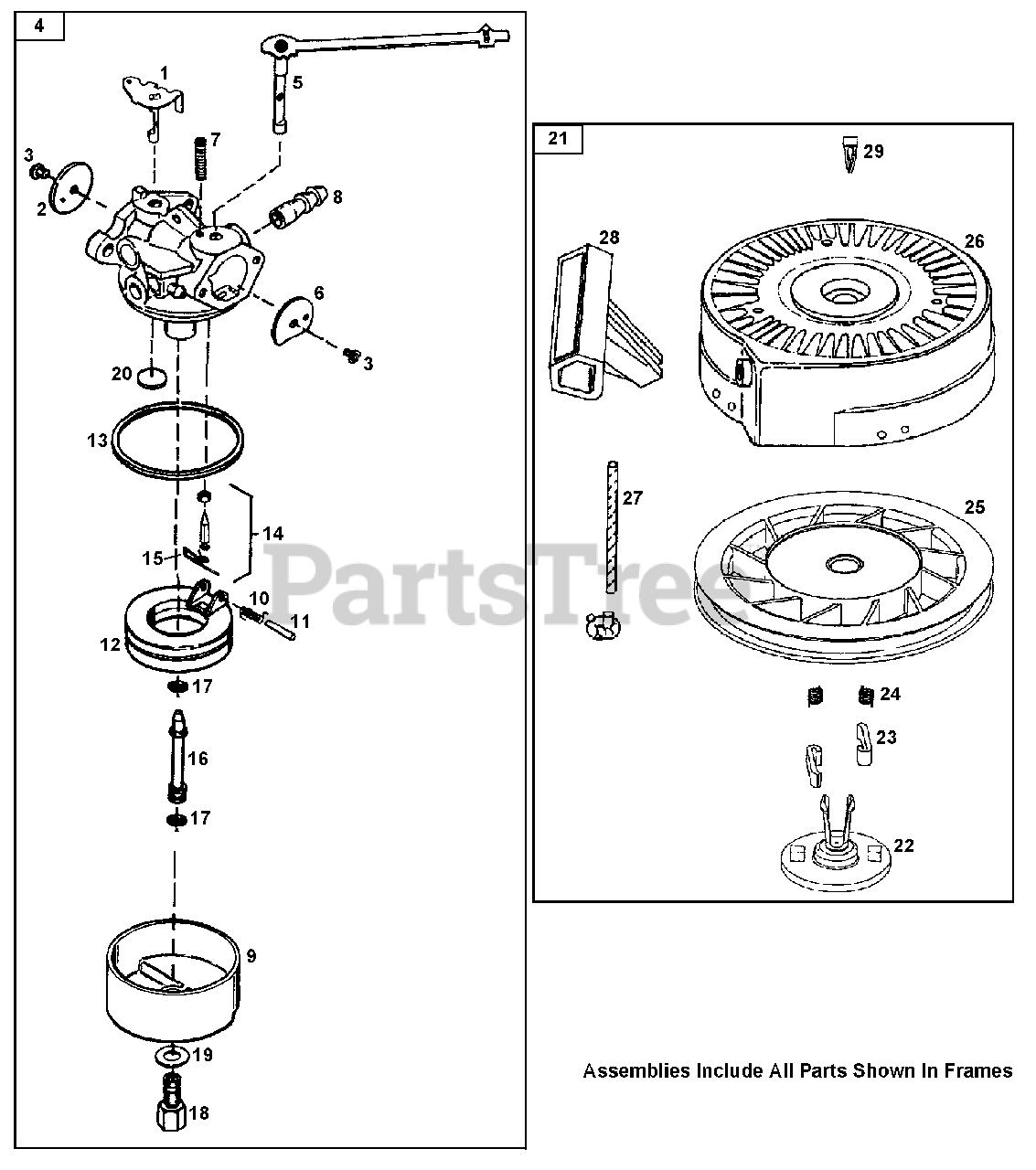

521 R (31A-162-101) - Cub Cadet 21" Snow Thrower Engine (1999) Carburetor & Starter Parts Diagram

21" Snow Thrower Engine

Carburetor & Starter Parts Diagram

  • Title
1

Cub Cadet TC-632538

Throttle Shaft & Lever Ass’y

$7.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631621

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 17

0

4

Cub Cadet TC-640094

Carburetor Assembly
(Superseded to TC-640311)

$

$

Not available

5

Cub Cadet TC-631300

Choke Shaft & Lever Ass’y

$7.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-631815

Choke Shutter

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

8

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 12

0

10

Cub Cadet TC-632386

Float Dampening Screw

$1.49

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 11

0

12

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

13

Cub Cadet TC-631028

Float Bowl O-Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

14

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. Ref #15)

$6.99

$

In Stock, Qty 6

0

15

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-640080

Main Nozzle Tube

$6.99

$

In Stock, only 2 left!

0

17

Cub Cadet TC-630740

O-Ring Main Nozzle Tube

$2.49

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-640089

High Speed Bowl Nut

$7.49

$

Usually ships in 3-12 days

0

19

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

Usually ships in 3-12 days

0

20

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 2 left!

0

21

Cub Cadet TC-590754

Rewind Starter Ass’y

$

$

Currently unavailable

22

$9.49

$

In Stock, Qty 12

0

23

Cub Cadet TC-590616

Starter Dog

$7.49

$

Usually ships in 3-12 days

0

24

Cub Cadet TC-590617

Dog Spring

$3.99

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-590645A

Pulley Ass’y

$

$

Not available

26

Cub Cadet TC-590643

Starter Housing Ass’y

$

$

Not available

27

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 14

0

28

Cub Cadet TC-590452

Starter Handle
(Superseded to TC-590701)

$6.49

$

In Stock, only 2 left!

0

29

Cub Cadet TC-590741

Locking Tab

$

$

Not available
