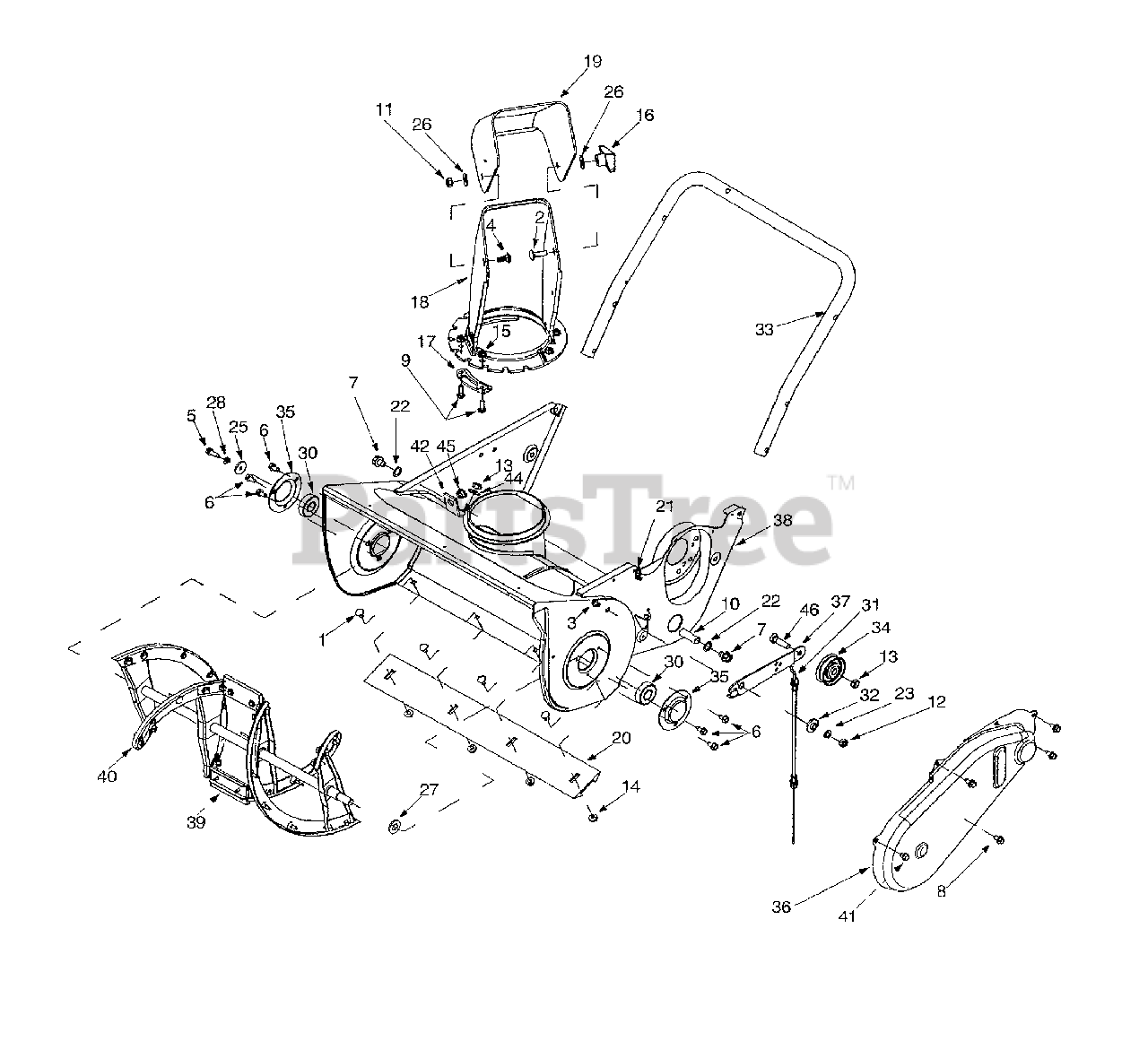

521 E (31AE162-100) - Cub Cadet 21" Snow Thrower (2001) General Assembly Parts Diagram

21" Snow Thrower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0167

Carriage Bolt
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0276

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0323

Pan Head Screw

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1005

Hex Washer Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0773

Hex Washer Screw

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0896

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Hex Cap Screw

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0848A

Axle
(Superseded to 753-05480)

$

$

Not available

11

Cub Cadet 712-0429

Hex Center Lock Nut

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0116

Hex Lock Nut

$4.99

$

In Stock, Qty 6

0

14

UNKNOWN

$

$

Not available

15

Cub Cadet 712-3027

Hex Lock Flanged Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0851A

Chute Keeper

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-0915B

Lower Chute
(Superseded to 731-0915C)

$

$

Not available

19

Cub Cadet 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

20

Cub Cadet 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

21

Cub Cadet 732-0357A

Extension Spring

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 736-0108

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0176

Flat Washer

$4.99

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0326

Flat Washer

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

30

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

31

Cub Cadet 746-0910A

Cable-Clutch
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 16

0

32

Cub Cadet 748-0234

Spacer

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 749-0796

Handle-Lower

Variations

Cub Cadet 749-0796-0637

LOWER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 756-0313

Flat Idler

$26.99

$

In Stock, only 3 left!

0

35

Cub Cadet 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 784-5176

Cover-Belt
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-5175B

Idler/Brake Bracket
(Superseded to 753-05156)

Variations

Cub Cadet 784-5175B-0637

USE 753-05156 KIT:IDLER SINGL - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 684-0114

Blower Housing

Variations

Cub Cadet 684-0114-0483

21" HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0114-0498

21" HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0114-0629

21" HOUSING - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0114-0638

21" HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0114-0650

21" HOUSING - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0114-0662

21" HOUSING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0114-0665

21" HOUSING - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0114-0684

21" HOUSING - ZINC YELLOW (0684)

$

$

Not available

Cub Cadet 684-0114-0687

21" HOUSING - PINE GREEN (0687)

$

$

Not available

Cub Cadet 684-0114-0709

21" HOUSING - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

39

Cub Cadet 784-5485

Auger Ass'y. Comp.
(Superseded to 984-04027A)

Variations

Cub Cadet 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

40

Cub Cadet 753-0613

Auger Rubber Replacement

$130.99

$

In Stock, Qty 5

0

41

Cub Cadet 710-0352

Hex Washer Screw

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 784-5720

Crank Bracket
(Superseded to 784-5720-0637)

Variations

Cub Cadet 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

?43

Cub Cadet 710-0451

Cap Screw

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0191

Hex Screw

$4.99

$

In Stock, Qty 9

0
