521 E (31AE162-100) - Cub Cadet 21" Snow Thrower (2001) Drive & Fuel Tank Parts Diagram

21" Snow Thrower

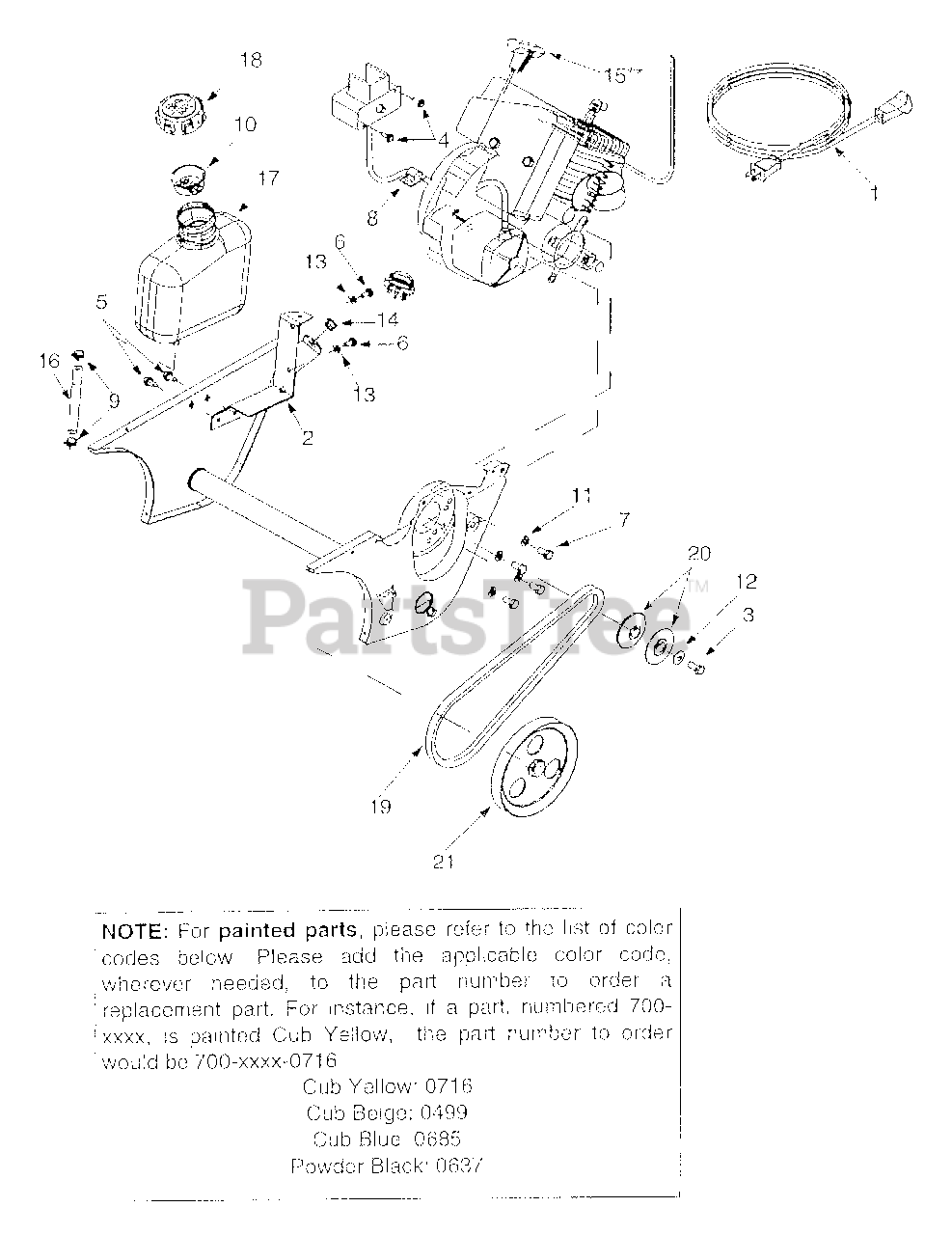

Drive & Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 629-0236

Extension Cord

$

$

Not available

2

Cub Cadet 705-5139A

Support Bracket: Gas Tank
(Superseded to 705-5139A-0637)

Variations

Cub Cadet 705-5139A-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0157

Hex Screw 5/16-24 x .75"

$4.49

$

In Stock, Qty 18

0

4

Cub Cadet 710-1003

Special Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1652

Self-Tapping Screw

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3013

Hex Screw 1/4-20 x .50"

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-3025

Hex Screw 5/16-24 x .625

$3.99

$

In Stock, Qty 8

0

8

Cub Cadet 726-0152

Mounting Clamp

$

$

Not available

9

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-2113A

Cup

$

$

Currently unavailable

11

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

15

Recoil Handle

Note: Obtain from engine manufacturer

$

$

Not available

16

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

17

Cub Cadet 751-0540A

Fuel Tank: 2 Quart

$

$

Not available

18

Cub Cadet 751-0800

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

20

Cub Cadet 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

21

Cub Cadet 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0
