521 E (31AE162-100) - Cub Cadet 21" Snow Thrower (2000) Drive And Fuel Tank Parts Diagram

21" Snow Thrower

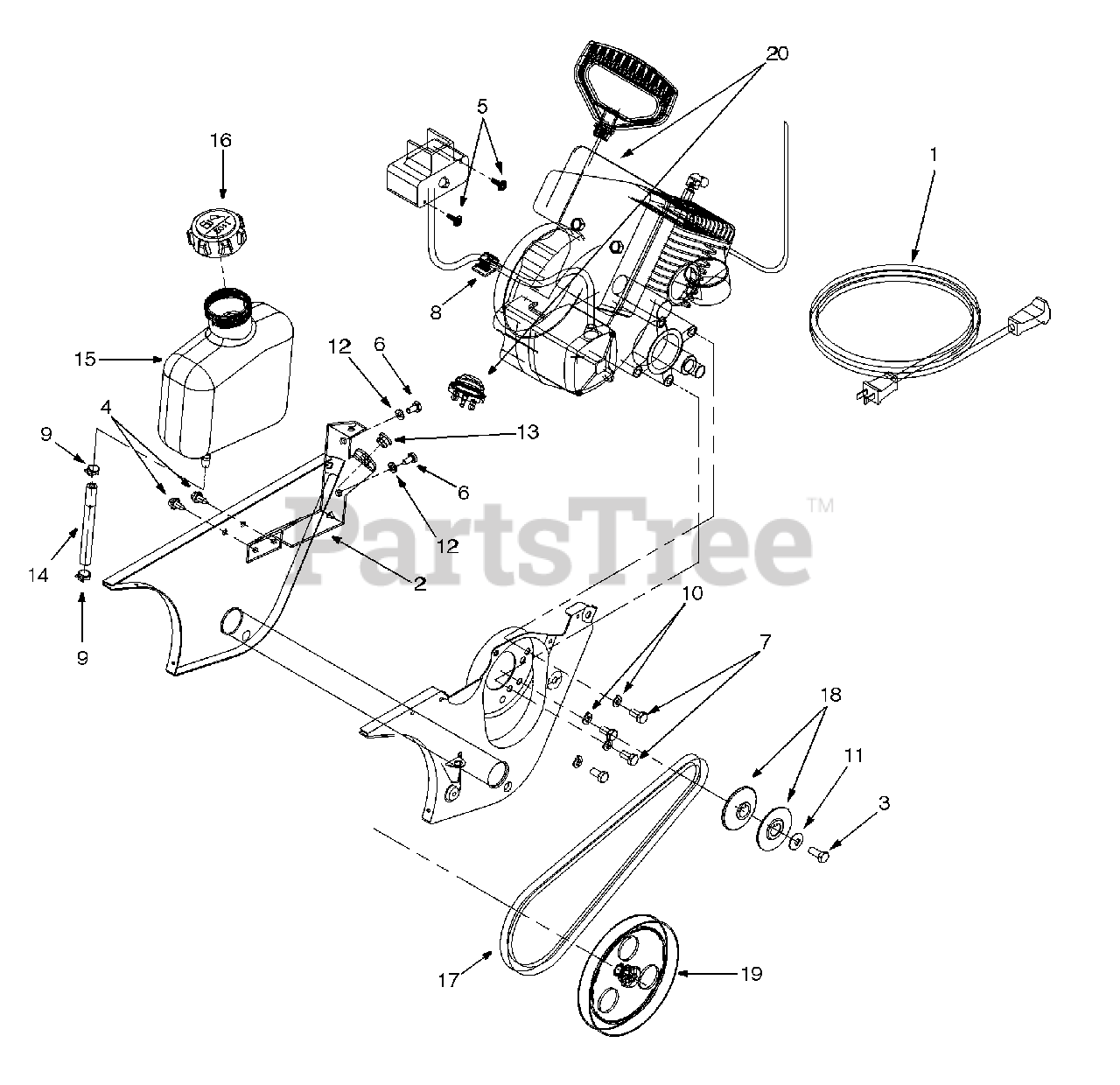

Drive And Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 629-0236

Cord, Extension

$

$

Not available

2

Cub Cadet 705-5139A

Bracket, Gas Tank Support
(Superseded to 705-5139A-0637)

Variations

Cub Cadet 705-5139A-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0157

Screw, Hex Cap

$4.49

$

In Stock, Qty 18

0

4

Cub Cadet 710-0896

Screw, Washer

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1003

Screw, Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3013

Screw, Hex

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-3025

Screw, Hex Cap

$3.99

$

In Stock, Qty 8

0

8

Cub Cadet 726-0152

Clamp, Mounting

$

$

Not available

9

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0119

Washer, Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 751-0535

Hose, Fuel

$

$

Currently unavailable

15

Cub Cadet 751-0540A

Tank, Fuel

$

$

Not available

16

Cub Cadet 751-0800

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 754-0101A

V, Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

18

Cub Cadet 756-0416B

V-Pulley, Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

20

UNKNOWN

$

$

Not available
