521 E (1695701) - Simplicity 21" Snow Thrower, 5.25hp Discharge Chute Parts Diagram

21" Snow Thrower, 5.25hp

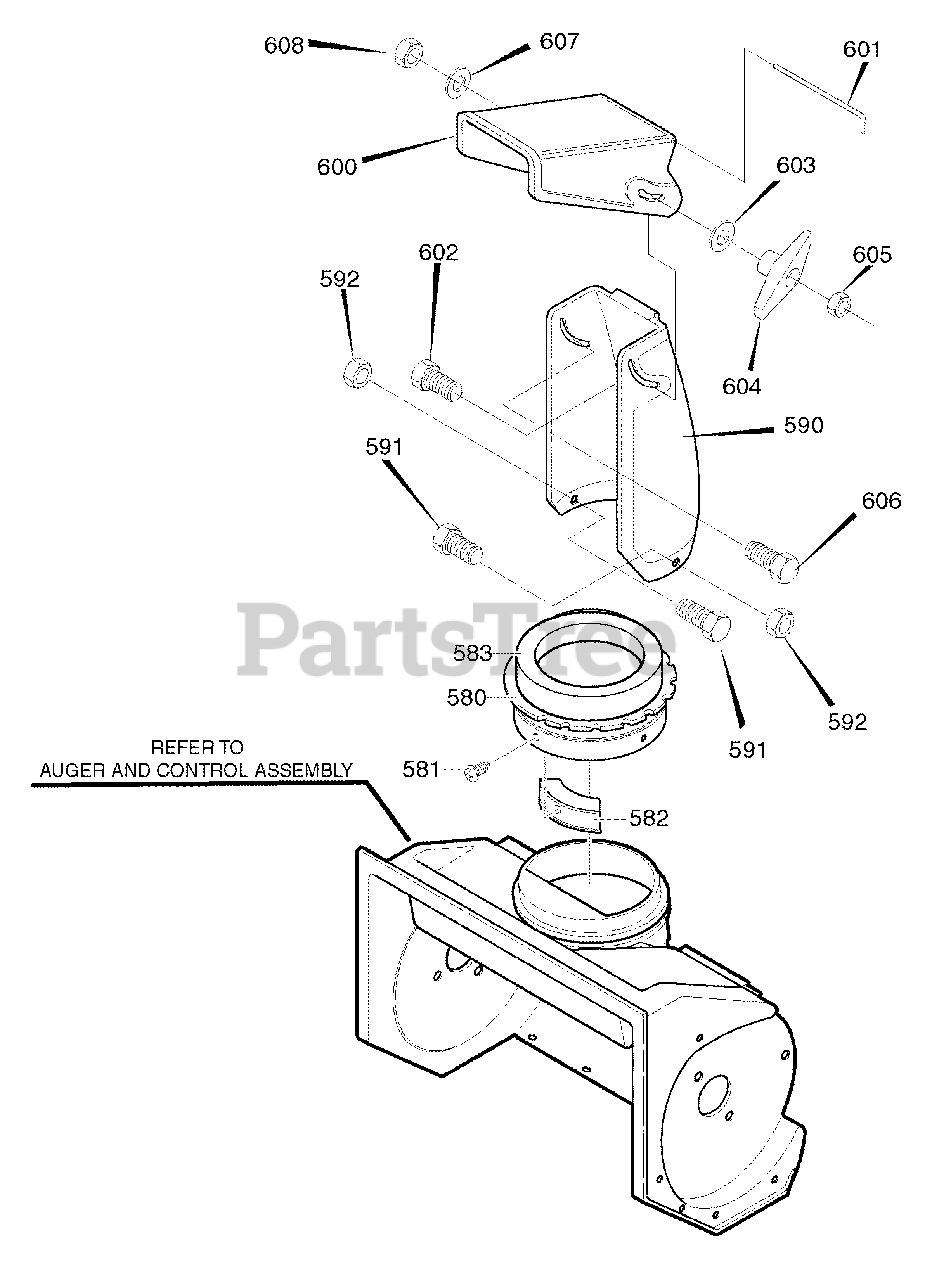

Discharge Chute Parts Diagram

  • Title

580

Simplicity 333859MA

RING, Chute

$

$

Not available

581

Simplicity 711752MA

SCREW, #10 x 1/2

$4.49

$

Usually ships in 2-12 days

0

582

Simplicity 577021MA

GUIDE, Chute

$5.49

$

In Stock, Qty 8

0

583

Simplicity 762173MA

DONUT, Foam

$20.99

$

Usually ships in 2-12 days

0

590

Simplicity 334234MA

CHUTE, Deflector, Lower

$43.99

$

Usually ships in 2-12 days

0

591

Simplicity 302628MA

CAPSCREW, Hex Head, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 7

0

592

Simplicity 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

600

Simplicity 325847MA

CHUTE, Deflector, Upper

$51.99

$

In Stock, Qty 12

0

601

Simplicity 308931MA

WIRE, Chute Hinge

$12.99

$

Usually ships in 2-12 days

0

602

Simplicity 302843MA

BOLT, Carriage, 5/16-18 x 1-1/4

$

$

Not available

603

Simplicity 71071MA

WASHER, Flat 11/32 x 11/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

604

Simplicity 1501260MA

KNOB, Wing, 5/16-18

$7.99

$

In Stock, Qty 5

0

605

Simplicity 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

606

Simplicity 578088MA

SCREW, 5/16-18 x 3/4

$4.99

$

In Stock, only 1 left!

0

607

Simplicity 71071MA

WASHER, Flat, 11/32 x 11/16 OD
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

608

Simplicity 71391MA

NUT, Hex, Control Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0
