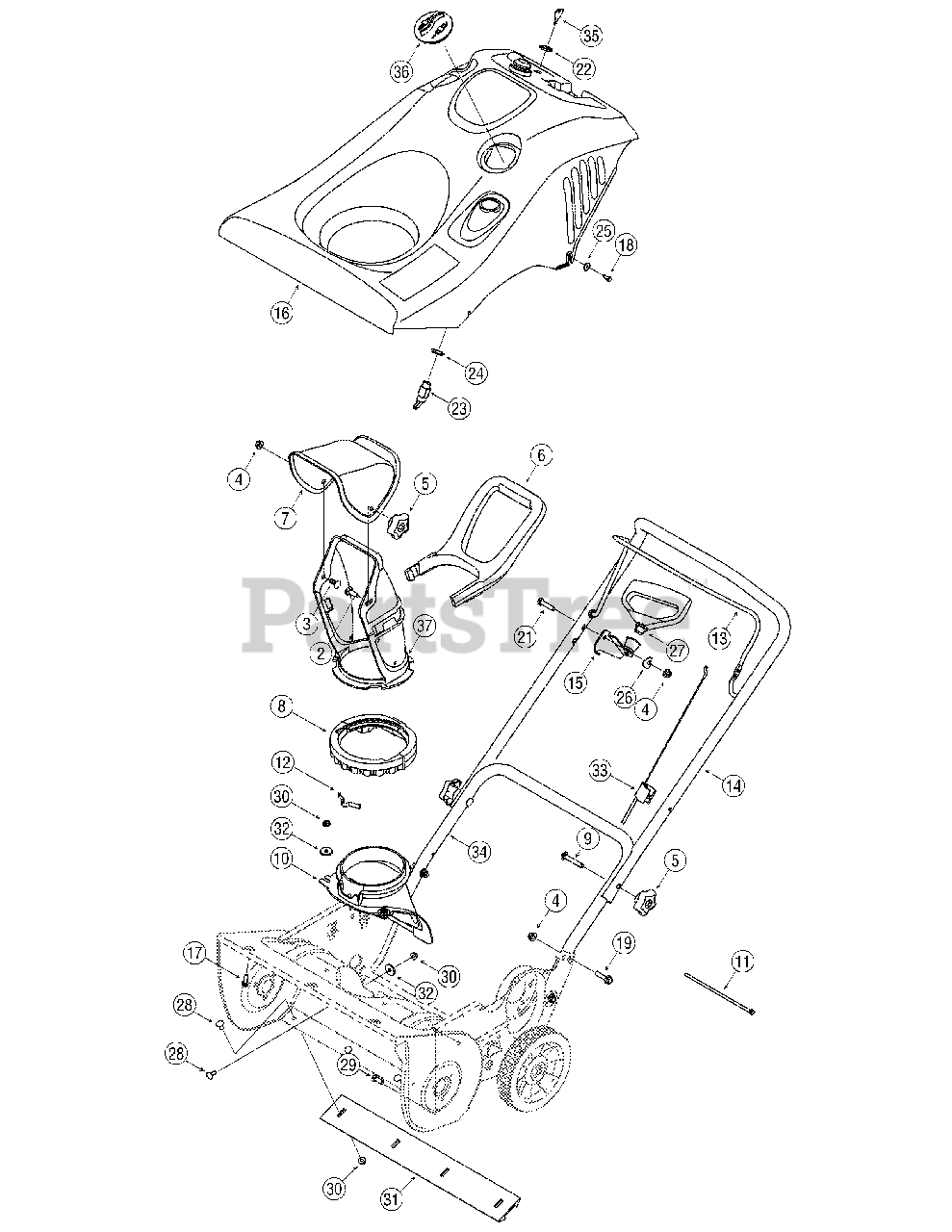

521 (31AS2B5-711) - Troy-Bilt Squall 21" Snow Thrower (2006) Handle Assembly Parts Diagram

Squall 21" Snow Thrower

Handle Assembly Parts Diagram

  • Title
1

Troy-Bilt 684-04127

Chute Assembly (Incl. Ref. 37-41)
(Superseded to 984-04127)

$65.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04071

Carriage Bolt 5/16-18 x 1.0"

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x 0.750"

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04072

Star Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 731-04353

Ring-Lower Chute
(Superseded to 931-04353)

$18.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-04532

Carriage Bolt 5/16-18 x 2.0 Gr. 5

$6.49

$

In Stock, Qty 5

0

10

Troy-Bilt 731-04886

Chute, Adapter 5" Dia
(Superseded to 931-04886)

$20.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 747-04159

Bail, Gull Wing
(Superseded to 747-04159A-0637)

Variations

Troy-Bilt 747-04159-0637

Gull Wing Auger Bail - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 747-04159-0638

Gull Wing Auger Bail - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

$36.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 749-04106

Upper Handle, Gull Wing
(Superseded to 749-04106A)

Variations

Troy-Bilt 749-04106-0637

Upper Handle - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04106-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 684-0178

Mitten Grip Bracket
(Superseded to 984-0178)

$

$

Not available

16

Troy-Bilt 684-04029

Shroud Assembly, Black (Incl. Spark Plug Cover)
(Superseded to 984-04029)

$

$

Not available

17

Troy-Bilt 710-0895

Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

18

Troy-Bilt 710-1003

Self-tapping Screw, #10-16 x .625"
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

19

Troy-Bilt 710-1090

Hex Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-1882

Hex Flange Screw 5/16-18 x 1.50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-3083

Hex Screw, 5/16-18 x 1.375

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 712-0252

Hex Nut 5/8-32 x .12 Special

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 725-2018

Key Switch-Electric Start
(Superseded to 925-2018)

$

$

Not available

24

Troy-Bilt 736-0225

Lock Washer Internal .625 x 1.058

$4.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 736-0400

Flat Washer .194" x .62" x .063

$5.49

$

In Stock, Qty 14

0

26

Troy-Bilt 736-0451

Saddle Washer .320 x .93

$4.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 7510009636

Recoil Handle, Mitten

$

$

Not available

28

Troy-Bilt 710-0134

Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-3008

Truss Machine Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-1033

Shave Plate, 19.88

$47.99

$

In Stock, Qty 14

0

32

Troy-Bilt 736-0176

Flat Washer .265 x .938 x .120

$4.99

$

In Stock, Qty 6

0

33

Troy-Bilt 746-04237

Control Cable
(Superseded to 946-04237)

$24.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

Troy-Bilt 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

36

Troy-Bilt 684-0189

Spark Plug Cover

$

$

Not available

37

Troy-Bilt 731-04127

Lower Chute 5" Dia.
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0
