52070 - Troy-Bilt Walk-Behind Trimmer Trim Head Assembly Parts Diagram

Walk-Behind Trimmer

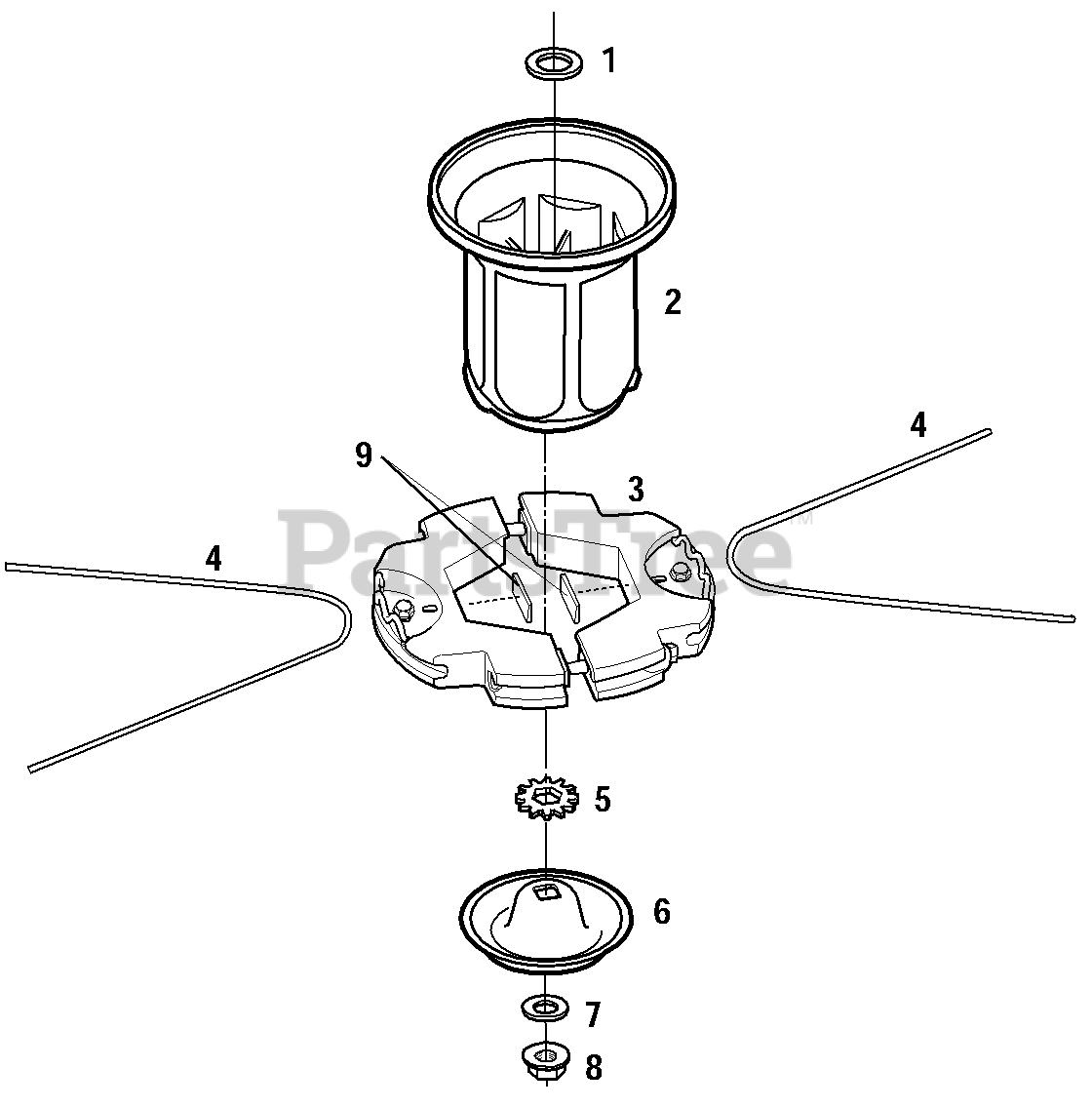

Trim Head Assembly Parts Diagram

  • Title
1

MTD 1910863

Shoulder Washer

$

$

Not available

2

Troy-Bilt 1910861

Spindle Head

$

$

Currently unavailable

3

Troy-Bilt 1918879

Trimmer Head

$

$

Not available

4

Trimmer String

Note: (see Refs. 1 and 2 on "Accessories And Kits")

$

$

Not available

5

Troy-Bilt 1910862

Hex Spline Washer

$

$

Not available

6

MTD 1915220001

Wear Cup

$

$

Not available

7

MTD 1915239

Washer

$

$

Not available

8

Troy-Bilt 1904308

Hex Flange Nut, 1/2-13
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1918332

Rubber Shim Kit (2 shims). Affixed to two inner walls of trimmer head

$

$

Not available
