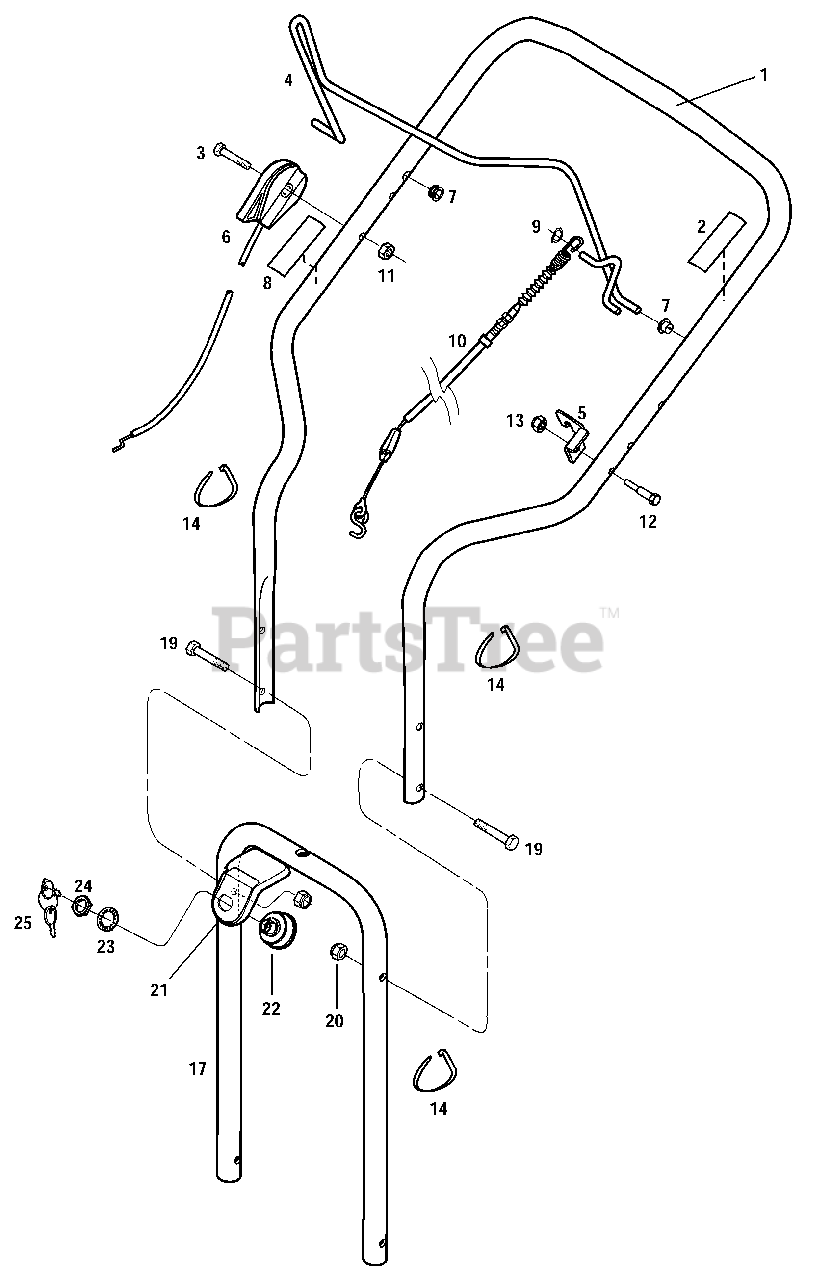

52070 - Troy-Bilt Walk-Behind Trimmer Handlebar Parts Diagram

Walk-Behind Trimmer

Handlebar Parts Diagram

  • Title

1

MTD 1915963

Upper Handlebar

Note: (Incl. Refs. 2 & 8)

$

$

Not available

2

MTD 1915889

Decal-Bail Operation

$

$

Not available

3

MTD 1100807

Hex Hd. Screw, 1/4-20 x 2

$

$

Not available

4

Troy-Bilt 1917175

Trimmer Head Control Bail

$

$

Currently unavailable

5

Troy-Bilt 1749977001

Cable Bracket

$

$

Not available

6

MTD 1918081

Throttle Control & Cable

$

$

Not available

7

Troy-Bilt 1908677

Nyliner Bushing

$

$

Not available

8

MTD 1918304

Decal-Throttle Settings

$

$

Not available

9

Troy-Bilt 1908679

Push Cap, .312 I.D.

$2.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 1910852

Trimmer Head Control Cable
(Superseded to 1910852P)

$75.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1110106

Hex Lock Nut, 1/4-20

$

$

Not available

12

MTD 1983658

Hex Hd. Screw, 1/4-20 x 1-1/8

$

$

Not available

13

Troy-Bilt 1185814

Hex Flange Lock Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

14

Troy-Bilt 1763682

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1910809001

Lower Handlebar

Note: Model 52066

$

$

Not available

MTD 1904508

Lower Handlebar

Note: Model 52070

$

$

Not available

19

Troy-Bilt 1100799

Hex Hd. Screw, 5/16-18 x 1-1/2, Gr. 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1732499

Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

21

MTD 1904406

Decal - Keyswitch

Note: Model 52070

$

$

Not available

22

Troy-Bilt 1900455

Keyswitch
(Superseded to 1900455P)

Note: Model 52070

$

$

Not available

23

Troy-Bilt 1187950

Lockwasher, 5/8
(Superseded to 736-0225)

Note: Model 52070

$4.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 92018

Hex Nut, 5/8-32
(Superseded to 712-0252)

Note: Model 52070

$5.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 96520

Key
(Superseded to 925-0201)

Note: Model 52070

$9.49

$

In Stock, only 1 left!

0
