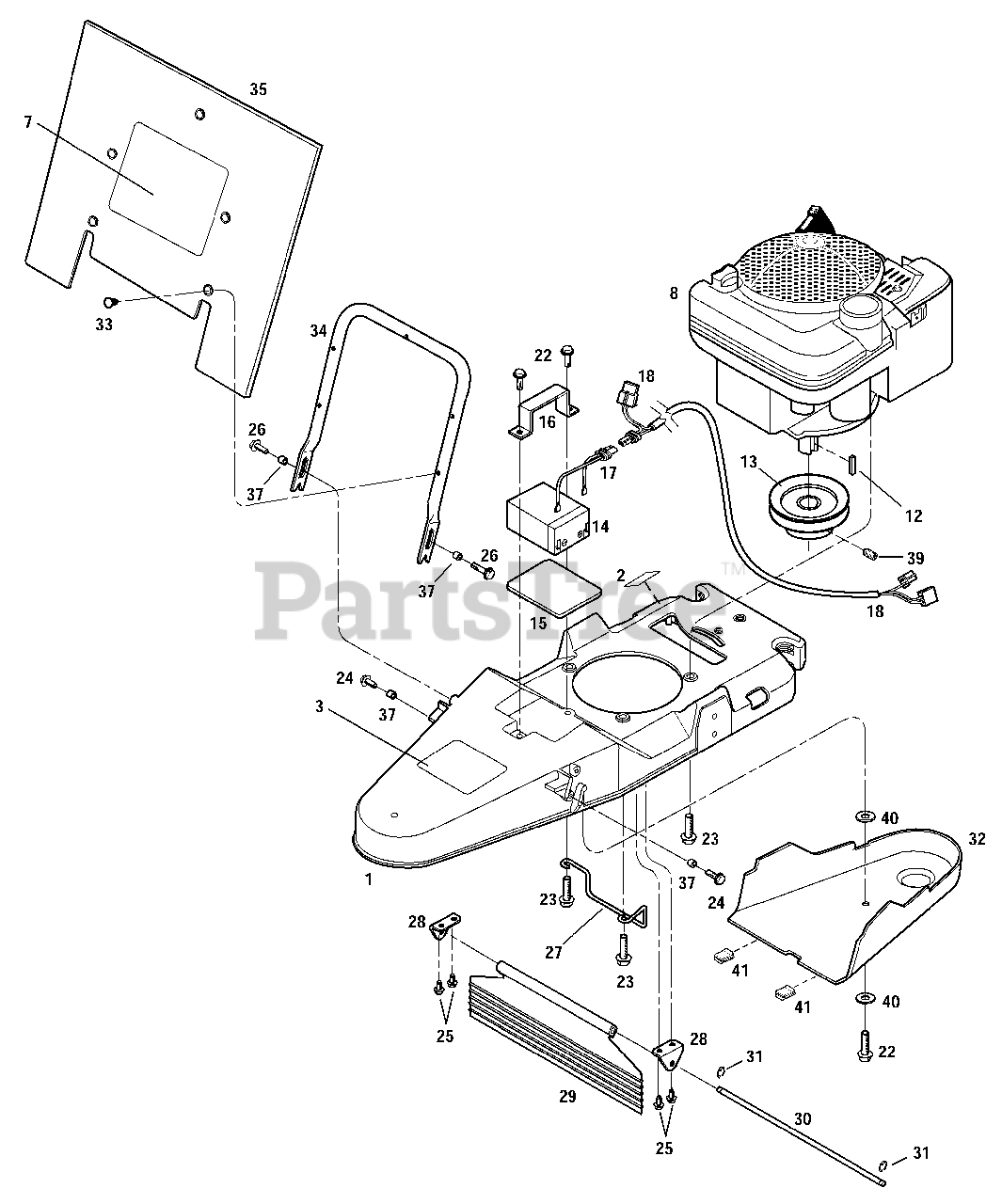

52070 - Troy-Bilt Walk-Behind Trimmer General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 1904421

Deck

Note: (Incl. Refs. 2 and 3)

$

$

Not available

2

MTD 1904511

Decal-Hot Surface

$

$

Not available

3

MTD 1918115

Decal-Warning/Thrown Objects

$

$

Not available

7

MTD 1918082

Decal-Logo

Note: Model 52066

$

$

Not available

MTD 1918118

Decal-Logo

Note: Model 52070

$

$

Not available

8

Engine - Recoil Start

Note: Model 52066; Order parts from your local authorized engine dealer. Refer to engine for model/type number.

$

$

Not available

Engine - Electric Start

Note: Model 52070; Order parts from your local authorized engine dealer. Refer to engine for model/type number.

$

$

Not available

12

Troy-Bilt 9301

Key, 3/16" x 1" Sq.
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

13

MTD 1915240

Pulley, 4" OD

$

$

Not available

14

Troy-Bilt 1909647

Battery

Note: Model 52070

$164.99

$

Usually ships in 3-6 days

0

15

MTD 1915268

Pad - Battery

Note: Model 52070

$

$

Not available

16

MTD 1915204001

Bracket - Battery

Note: Model 52070

$

$

Not available

17

Troy-Bilt 1909697

Battery Wire Connector

Note: Model 52070

$23.99

$

Usually ships in 3-6 days

0

18

MTD 1910835

Keyswitch Wire Harness

Note: Model 52070

$

$

Not available

22

Troy-Bilt 90063

Hex Hd. Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1768194

Hex Hd. Flange Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1754128

Hex Hd. Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

25

MTD 1909301

Hex Hd. Flange Screw, 1/4-20 x 5/8

$

$

Not available

26

MTD 1763187

Hex Hd. Flange Screw, 1/4-20 x 1

$

$

Not available

27

MTD 1910865

Belt Guide

$

$

Not available

28

MTD 1915219001

Flap Bracket

$

$

Not available

29

MTD 1917154

Deflector Flap

$

$

Not available

30

MTD 1915212

Deflector Flap Rod

$

$

Not available

31

Troy-Bilt 1185304

E-Ring, 5/16"

$

$

Not available

32

Troy-Bilt 1915205

Belt Cover

$

$

Not available

33

Troy-Bilt 1918415

Push-In Fastener

$

$

Currently unavailable

34

MTD 1915967

Debris Guard Support

$

$

Not available

35

MTD 1917765

Debris Guard

$

$

Not available

37

MTD 1915320

Spacer

$

$

Not available

39

Troy-Bilt 9677

Set Screw
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 94018

Washer
(Superseded to GW-94018)

$

$

Not available

41

Troy-Bilt 9218

Clip
(Superseded to GW-9218)

$

$

Not available
