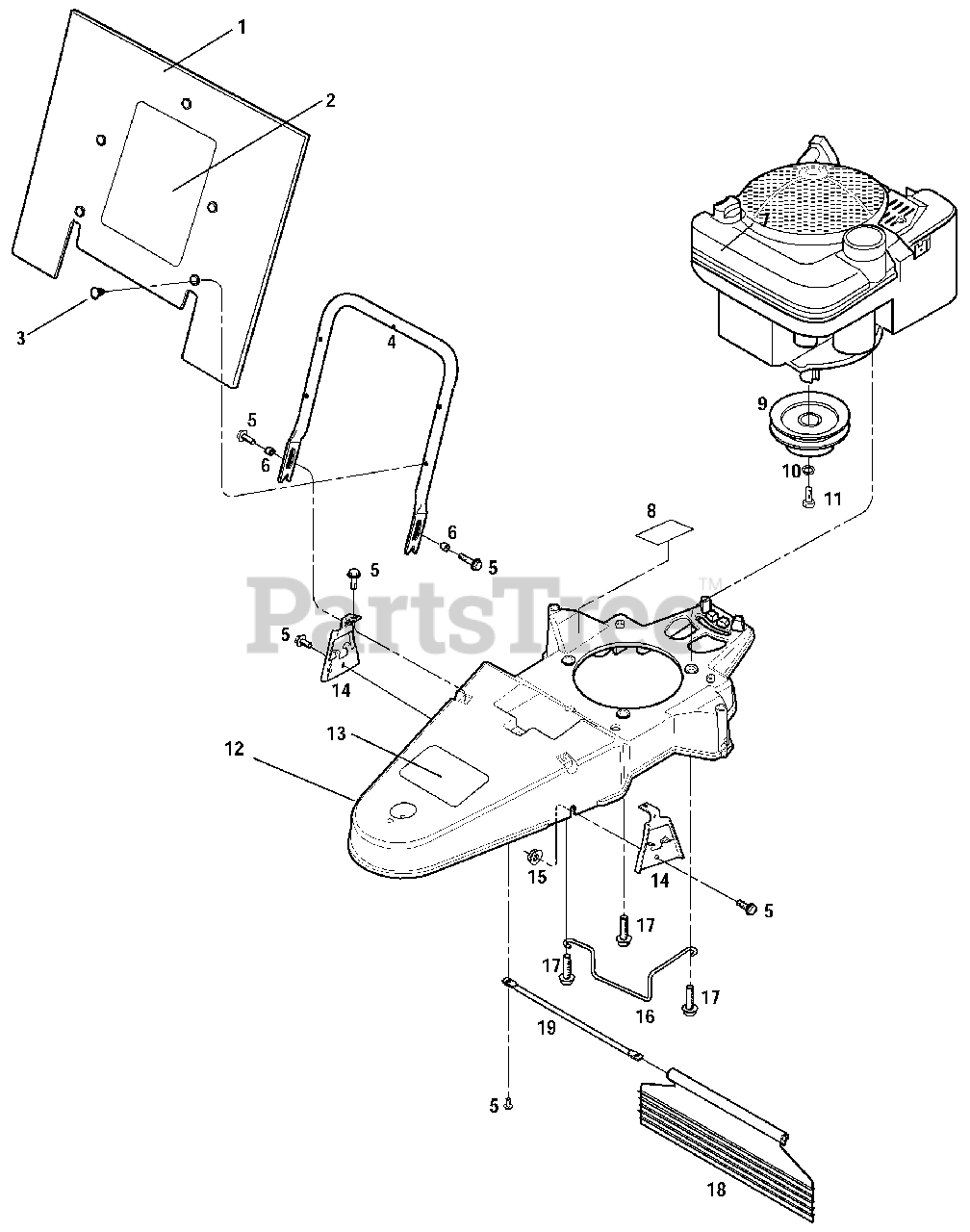

52067 - Troy-Bilt Walk-Behind Trimmer General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 1917765

Debris Guard

$

$

Not available

2

MTD 1918116

Decal-Logo

$

$

Not available

3

MTD 1915290

Push-in Fastener

$

$

Not available

4

MTD 1917407001

Debris Guard Support

$

$

Not available

5

Troy-Bilt 1754128

Hex Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

6

MTD 1915320

Spacer

$

$

Not available

7

Engine

Note: Order parts from your local authorized engine dealer. Refer to engine for model/type/code number.

$

$

Not available

8

MTD 1904511

Decal-Hot Surface Warning

$

$

Not available

9

MTD 1917727

Engine Pulley

$

$

Not available

10

Troy-Bilt 1100243

Spring Lock Washer
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1100009

Hex Hd. Screw, 3/8-24 x 1, Grade 5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

12

MTD 1918227

Deck

Note: (Incl. Ref. 13)

$

$

Not available

13

MTD 1918115

Decal-Warning

$

$

Not available

14

MTD 1917144001

Hood Bracket

$

$

Not available

15

Troy-Bilt 1186389

Flange Lock Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

16

MTD 1917574

Belt Guide

$

$

Not available

17

Troy-Bilt 1768194

Hex Hd. Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.49

$

Usually ships in 3-6 days

0

18

MTD 1917154

Deflector Flap

$

$

Not available

19

MTD 1917155

Rod

$

$

Not available
