52064 - Troy-Bilt Walk-Behind Trimmer (2001) Handle Parts Diagram

Walk-Behind Trimmer

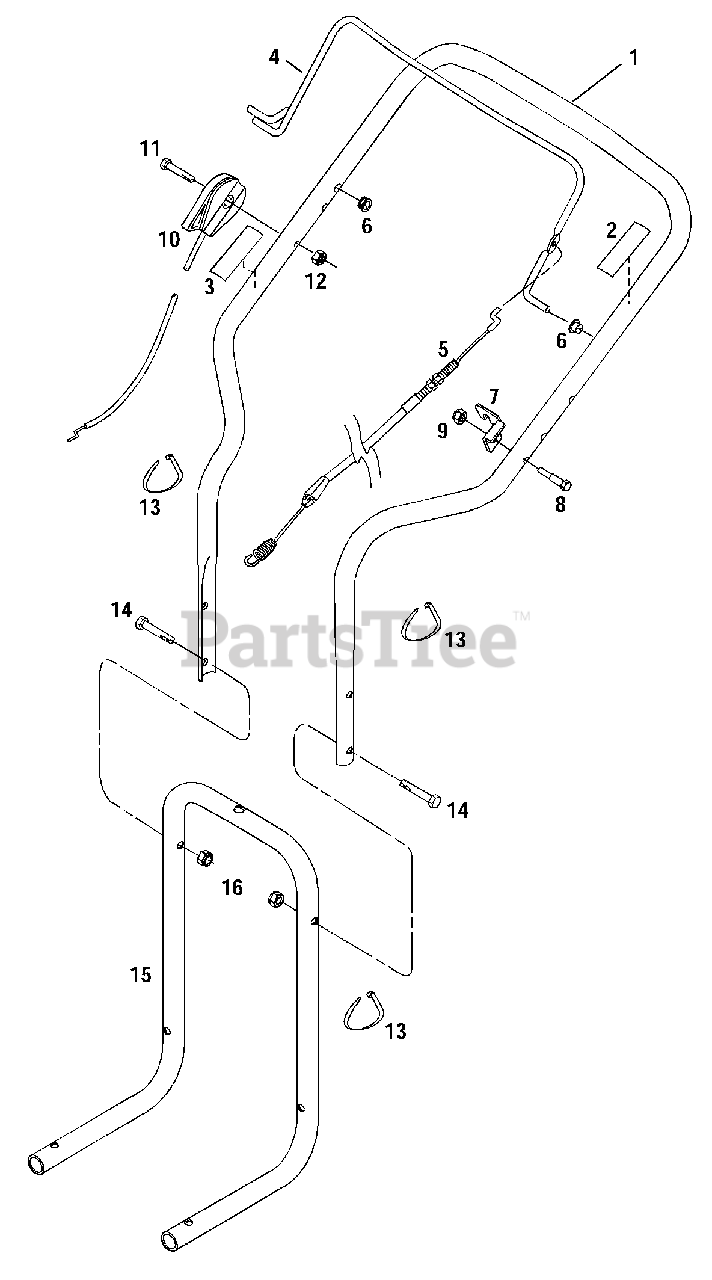

Handle Parts Diagram

  • Title

1

MTD 1918283

Upper Handlebar

Note: (Incl. Refs. 2 & 3)

$

$

Not available

2

MTD 1915889

Decal-Bail Engage/Disengage

$

$

Not available

3

MTD 1918304

Decal-Throttle

$

$

Not available

4

MTD 1918070001

Control Bail-Trimmer Head

$

$

Not available

5

Troy-Bilt 1917589

Cable Assembly-Trimmer Head
(Superseded to 1917589P)

$78.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1908677

Bushing

$

$

Not available

7

Troy-Bilt 1749977001

Cable Bracket

$

$

Not available

8

MTD 1983658

Hex Hd. Screw, 1/4-20 x 1-1/8

$

$

Not available

9

Troy-Bilt 1185814

Hex Flange Lock Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

10

MTD 1918081

Throttle Lever & Cable Assembly

$

$

Not available

11

MTD 1100807

Hex Hd. Screw, 1/4-20 x 2

$

$

Not available

12

Troy-Bilt 1110106

Hex Lock Nut, 1/4-20

$

$

Not available

13

Troy-Bilt 1763682

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100799

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

15

MTD 1917145001

Handlebar Support

$

$

Not available

16

Troy-Bilt 1732499

Hex Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0
