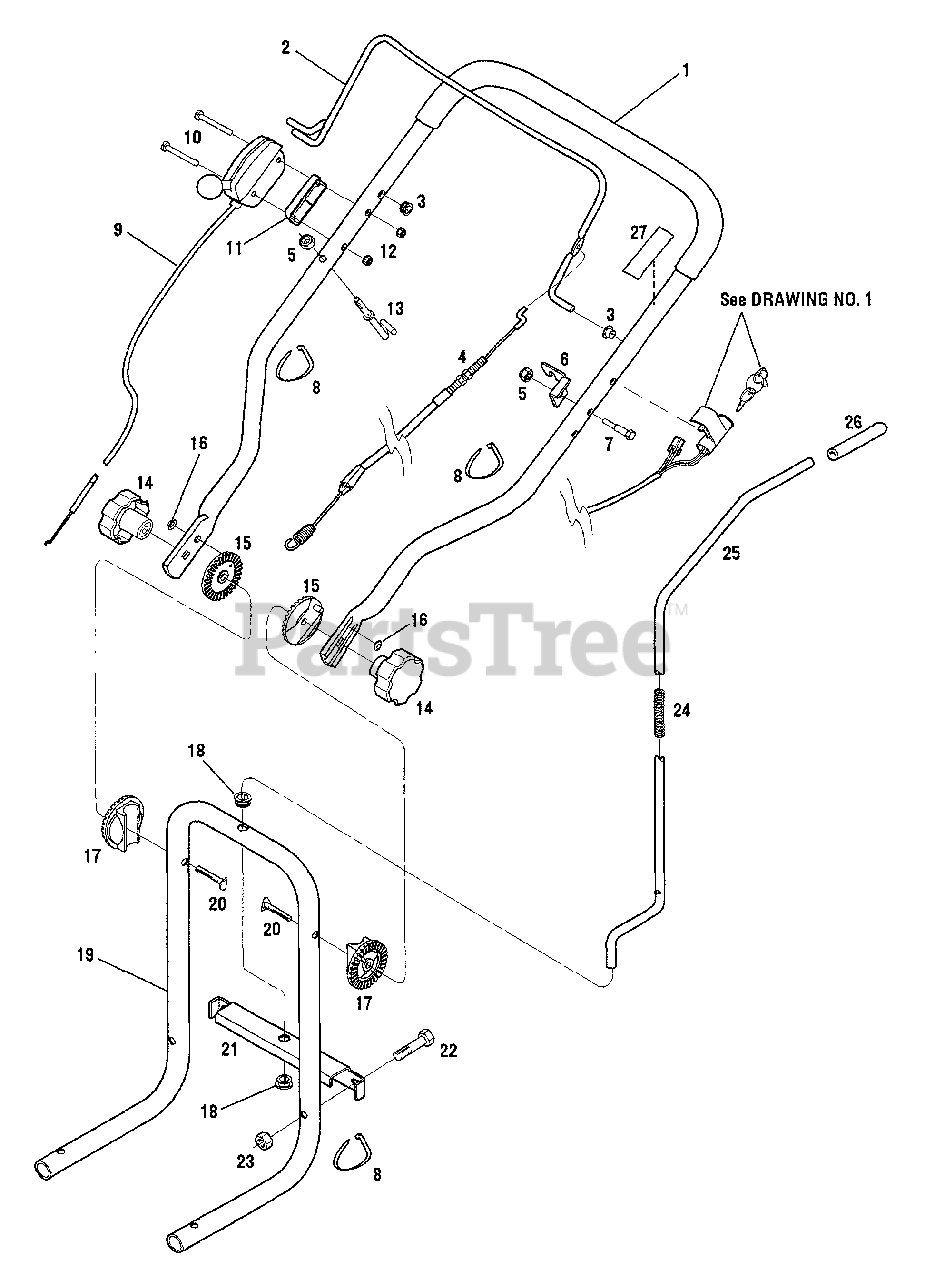

52061 - Troy-Bilt Walk-Behind Trimmer Handle Parts Diagram

Walk-Behind Trimmer

Handle Parts Diagram

  • Title

1

Troy-Bilt 1904422

Handlebar

Note: (Incl, Ref. 27 & Foam Sleeve)

$

$

Not available

2

MTD 1918070001

Control Bail - Trimmer Head

$

$

Not available

3

Troy-Bilt 1908677

Nyliner Bushing

$

$

Not available

4

Troy-Bilt 1917589

Cable Assembly - Trimmer Head
(Superseded to 1917589P)

$78.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1185814

Top Locknut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

6

Troy-Bilt 1749977001

Cable Bracket

$

$

Not available

7

MTD 1983658

Hex Hd. Screw, 1/4-20 x 1-1/8

$

$

Not available

8

Troy-Bilt 1763682

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1910833

Throttle Control & Cable

$

$

Not available

10

MTD 1908793

Pan Hd. Screw, #10-24 x 2

$

$

Not available

11

MTD 1909291

Spacer

$

$

Not available

12

Troy-Bilt 1983039

Hex Locknut, #10-24

$

$

Not available

13

MTD 1917090

Starter Rope Guide

$

$

Not available

14

MTD 1909250

Height Adjust Knob

$

$

Not available

15

Troy-Bilt 1903404

Height Adjust Quadrant-Outside
(Superseded to 1903404099)

$

$

Not available

16

Troy-Bilt 1765879

Push-on Retainer

$7.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 1903403

Height Adjust Quadrant-Inside

$11.99

$

In Stock, only 1 left!

0

18

MTD 1761046

Nyliner Bushing

$

$

Not available

19

MTD 1917145001

Handlebar Support

$

$

Not available

20

Troy-Bilt 1731025

Curved Hd. Screw, 5/16-18 x 2
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 1917146001

Bracket - Handlebar Support

$

$

Currently unavailable

22

Troy-Bilt 1100799

Hex Hd. Screw, 5/16-18 x 1-3/4
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1732499

Hex Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1917252

Spring

$

$

Currently unavailable

25

MTD 1917238001

Parallel Trim Lever

$

$

Not available

26

MTD 1718534

Grip

$

$

Not available

27

MTD 1915889

Decal-Bail Control

$

$

Not available
