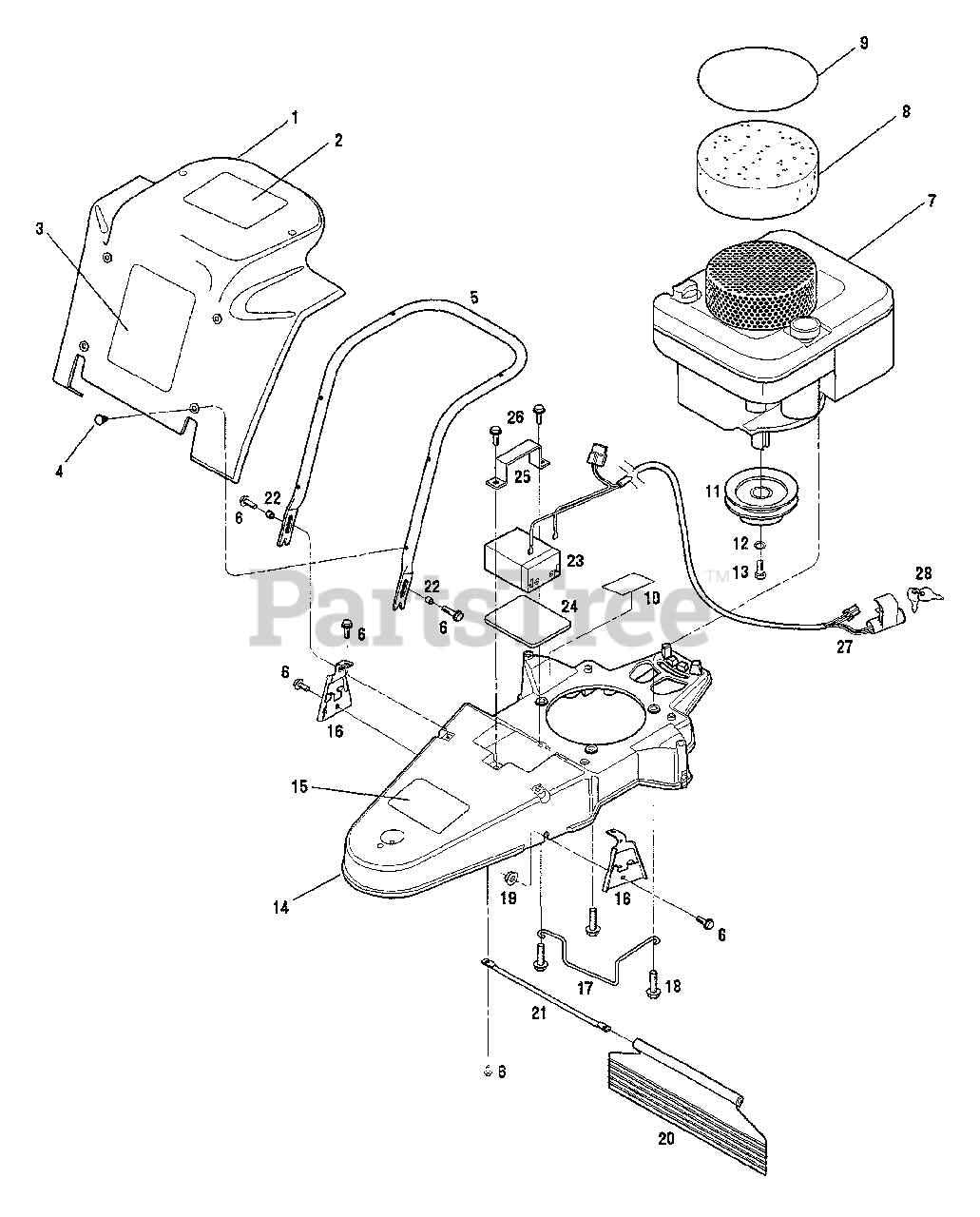

52061 - Troy-Bilt Walk-Behind Trimmer General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title
1

MTD 1918230

Debris Shield

Note: (Incl. Ref. 2)

$

$

Not available

2

Troy-Bilt 1918157

Decal - Parallel Trimmer Instructions

$

$

Currently unavailable

3

Troy-Bilt 1904401

Decal - Logo

Note: Model 52060

$

$

Not available

MTD 1904402

Decal - Logo

Note: Models 52061, 52062

$

$

Not available

4

MTD 1915290

Push-in Fastener

$

$

Not available

5

Troy-Bilt 1917325001

Debris Guard Support

$

$

Currently unavailable

6

Troy-Bilt 1754128

Hex Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

7

Engine

Note: Order parts from your local authorized engine dealer. Refer to engine for model/type number.

$

$

Not available

8

Troy-Bilt 1915276

Engine Foam Debris Guard
(Superseded to BS-693514)

$

$

Not available

$

$

Not available

10

MTD 1904511

Decal - Hot Surface Warning

$

$

Not available

11

MTD 1917728

Engine Pulley

$

$

Not available

12

Troy-Bilt 1100243

Spring Lock Washer
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1100009

Hex Hd. Screw, 3/8-24 x 1, Grade 5
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

14

MTD 1918229

Deck

Note: (Incl. Refs. 10 & 15)

$

$

Not available

15

MTD 1918115

Decal - Warning

$

$

Not available

16

MTD 1917144001

Hood Bracket

$

$

Not available

17

MTD 1917574

Belt Guide

$

$

Not available

18

Troy-Bilt 1768194

Hex Hd. Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

20

MTD 1917154

Deflector Flap

$

$

Not available

21

$

$

Not available

22

MTD 1915320

Spacer

$

$

Not available

23

Troy-Bilt 1909647

Battery

Note: Model 52062

$164.99

$

Usually ships in 3-6 days

0

24

MTD 1915268

Battery Pad

Note: Model 52062

$

$

Not available

25

MTD 1915204001

Battery Clamp

Note: Model 52062

$

$

Not available

26

Troy-Bilt 90063

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

Note: Model 52062

$4.49

$

In Stock, Qty 20+

0

27

MTD 1918055

Wire Harness

Note: Model 52062

$

$

Not available

28

Troy-Bilt 96520

Ignition Key
(Superseded to 925-0201)

Note: Model 52062

$9.49

$

In Stock, only 1 left!

0
