52051 - Troy-Bilt Walk-Behind Trimmer, 4hp, Std Handlebar Assembly Parts Diagram

Walk-Behind Trimmer, 4hp, Std

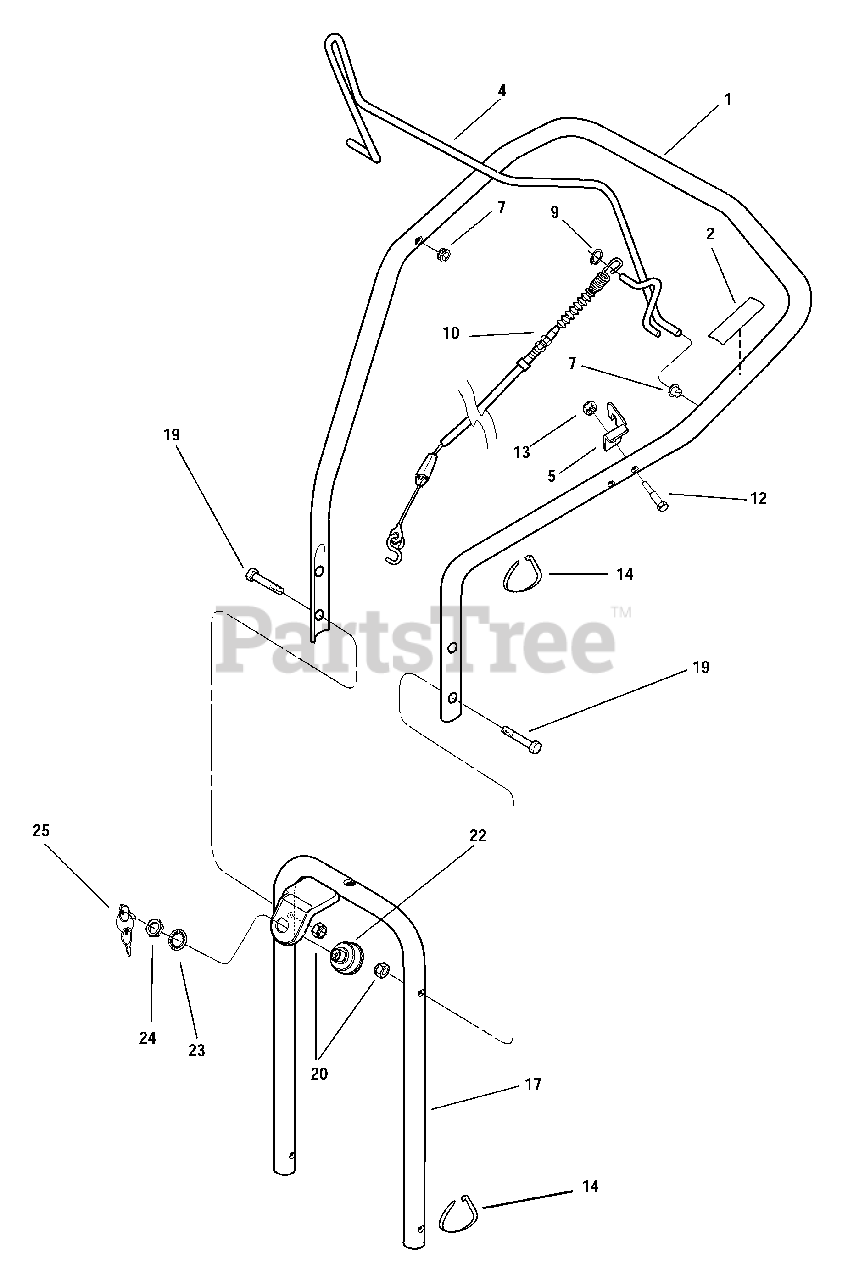

Handlebar Assembly Parts Diagram

  • Title

1

MTD 1915963

Upper Handlebar w/decal

$

$

Not available

2

MTD 1915889

Bail Decal

$

$

Not available

4

MTD 1915270001

Bail

$

$

Not available

5

Troy-Bilt 1749977001

Cable Bracket

$

$

Not available

7

Troy-Bilt 1908677

Nyliner Bushing

$

$

Not available

9

Troy-Bilt 1908673

Retaining Ring, external .312 I.D

$

$

Not available

10

Troy-Bilt 1910852

Control Cable
(Superseded to 1910852P)

$75.99

$

Usually ships in 3-6 days

0

12

MTD 1983658

Hex Hd Screw, 1/4-20 x 1-1/8

$

$

Not available

13

Troy-Bilt 1185814

Top Lock Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

14

Troy-Bilt 1763682

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1910809001

Lower Handlebar

Note: Model 52052

$

$

Not available

Troy-Bilt 1910809001

Lower Handlebar

Note: Model 52051

$

$

Not available

19

Troy-Bilt 1100799

Hex Hd Screw, 5/16-18 x 1-1/2, Gr. 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1732499

Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

?21

MTD 1904406

Decal - Keyswitch

Note: Model 52052

$

$

Not available

22

Troy-Bilt 1900455

Ignition Switch
(Superseded to 1900455P)

Note: Model 52052

$

$

Not available

23

Troy-Bilt 1187950

Lockwasher, 5/8
(Superseded to 736-0225)

Note: Model 52052

$4.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 92018

Hex Nut, 5/8-32
(Superseded to 712-0252)

Note: Model 52052

$5.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 96520

Ignition Key
(Superseded to 925-0201)

Note: Model 52051

$9.49

$

In Stock, only 1 left!

0
