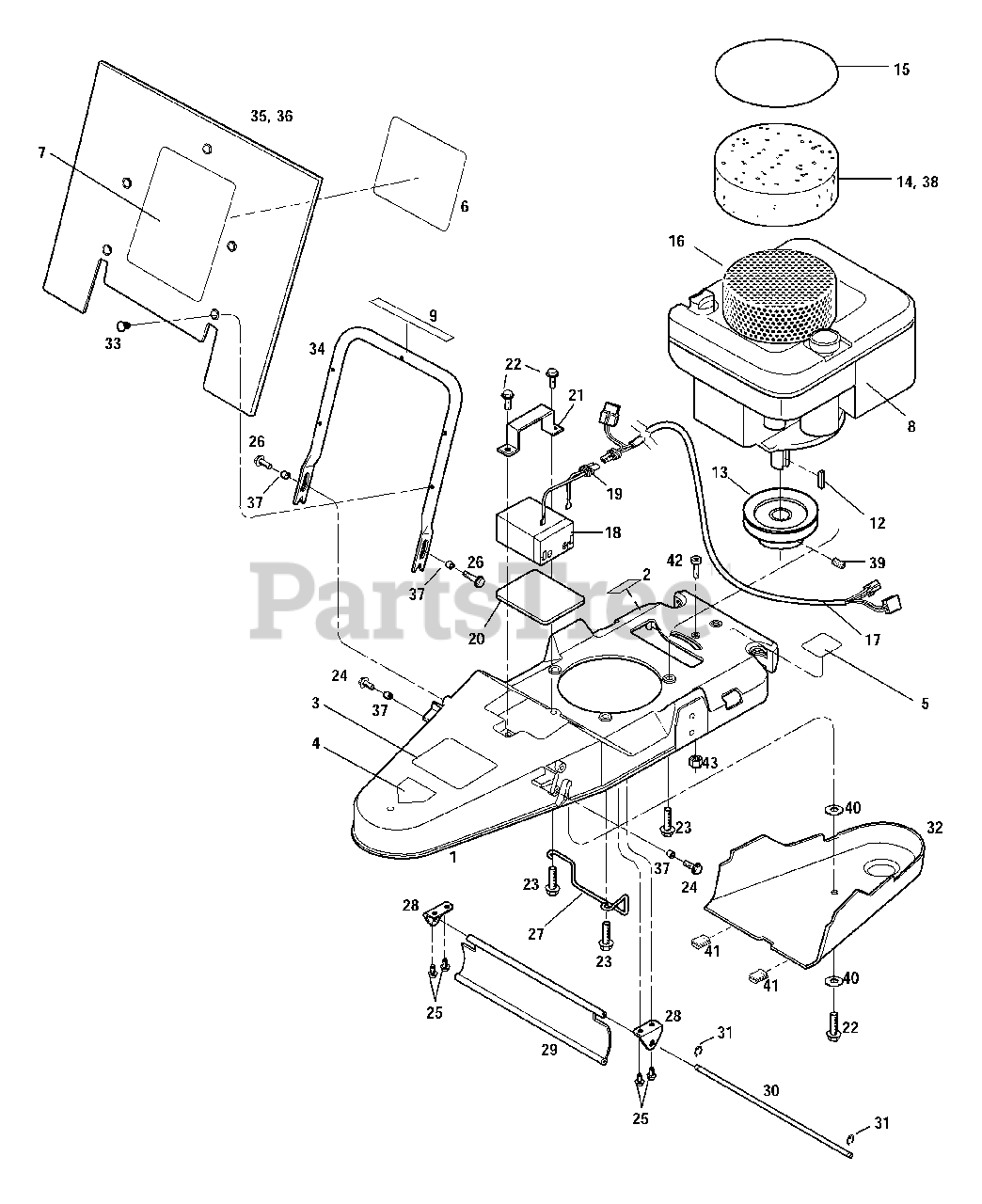

52051 - Troy-Bilt Walk-Behind Trimmer, 4hp, Std Engine, Deck, Covers And Guards, Battery Parts Diagram

Walk-Behind Trimmer, 4hp, Std

Engine, Deck, Covers And Guards, Battery Parts Diagram

  • Title

1

MTD 1916993

Deck with decals

$

$

Not available

2

MTD 1904511

Decal-Hot Surface

$

$

Not available

3

MTD 1904403

Decal-Warning/Thrown Objects

$

$

Not available

4

Troy-Bilt 1739687

Decal-Danger Feet/Hands

$7.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1915964

Decal-Warning

$

$

Currently unavailable

6

MTD 1915892

Decal-Warning

$

$

Not available

7

Troy-Bilt 1916853

Decal-Logo

Note: Model 52051

$

$

Currently unavailable

Troy-Bilt 1916854

Decal-Logo

Note: Model 52052

$

$

Currently unavailable

8

Engine-Quantum, Std

Note: Model 52051; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

Engine-Quantum, Electric

Note: Model 52052; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

9

Troy-Bilt 1915965

Decal - Cover Support

$

$

Currently unavailable

12

Troy-Bilt 9301

Key, 3/16" x 1" Sq.
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

13

MTD 1915240

Pulley, 4" OD

$

$

Not available

14

Troy-Bilt 1915276

Engine Debris Guard/Foam
(Superseded to BS-693514)

$

$

Not available

15

Troy-Bilt 1915304

O-Ring/Engine Debris Guard

$

$

Not available

16

MTD 1916571

Engine Debris Guard

$

$

Not available

17

MTD 1910835

Wire Harness

Note: Model 52052

$

$

Not available

18

Troy-Bilt 1909647

Battery

Note: Model 52052

$164.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1909697

Battery Connector

Note: Model 52052

$23.99

$

Usually ships in 3-6 days

0

20

MTD 1915268

Battery Pad Model 52052

$

$

Not available

21

MTD 1915204001

Battery Bracket

Note: Model 52052

$

$

Not available

22

Troy-Bilt 90063

Hex Hd. Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

Note: Quantity of 3 for Model 52052 only. Quantity is 1 for Model 52051.

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1768194

Hex Hd. Flange Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 1754128

Hex Hd Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

25

MTD 1909301

Hex Hd Flange Screw, 1/4-20 x 5/8

$

$

Not available

26

MTD 1763187

Hex Hd Flange Screw, 1/4-20 x 1

$

$

Not available

27

MTD 1910865

Belt Guide

$

$

Not available

28

MTD 1915219001

Flap Bracket

$

$

Not available

29

MTD 1915211

Deflector Shield

$

$

Not available

30

MTD 1915212

Deflector Shield Rod

$

$

Not available

31

Troy-Bilt 1185304

E-Ring, 5/16"

$

$

Not available

32

Troy-Bilt 1915205

Belt Cover

$

$

Not available

33

MTD 1915290

Push-In Fastener

$

$

Not available

34

MTD 1915967

Engine Cover Support w/decal

$

$

Not available

35

MTD 1916994

Engine Cover w/decals

Note: Model 52051

$

$

Not available

36

Troy-Bilt 1916995

Engine Cover w/decals

Note: Model 52052

$

$

Currently unavailable

37

MTD 1915320

Spacer

$

$

Not available

38

Troy-Bilt 1904478

Service Kit

Note: (Includes Ref. 14, spark plug, fuel stabilizer, air filter element, pre-air filter element and v-belt); Not included with unit, order separately

$

$

Currently unavailable

39

Troy-Bilt 9677

Set Screw
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 94018

Washer
(Superseded to GW-94018)

$

$

Not available

41

Troy-Bilt 9218

Clip
(Superseded to GW-9218)

$

$

Not available

42

Troy-Bilt 9719

Socket Hd. Capscrew, 1/4-20 x 1
(Superseded to GW-9719)

$5.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1185814

Toplock Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0
