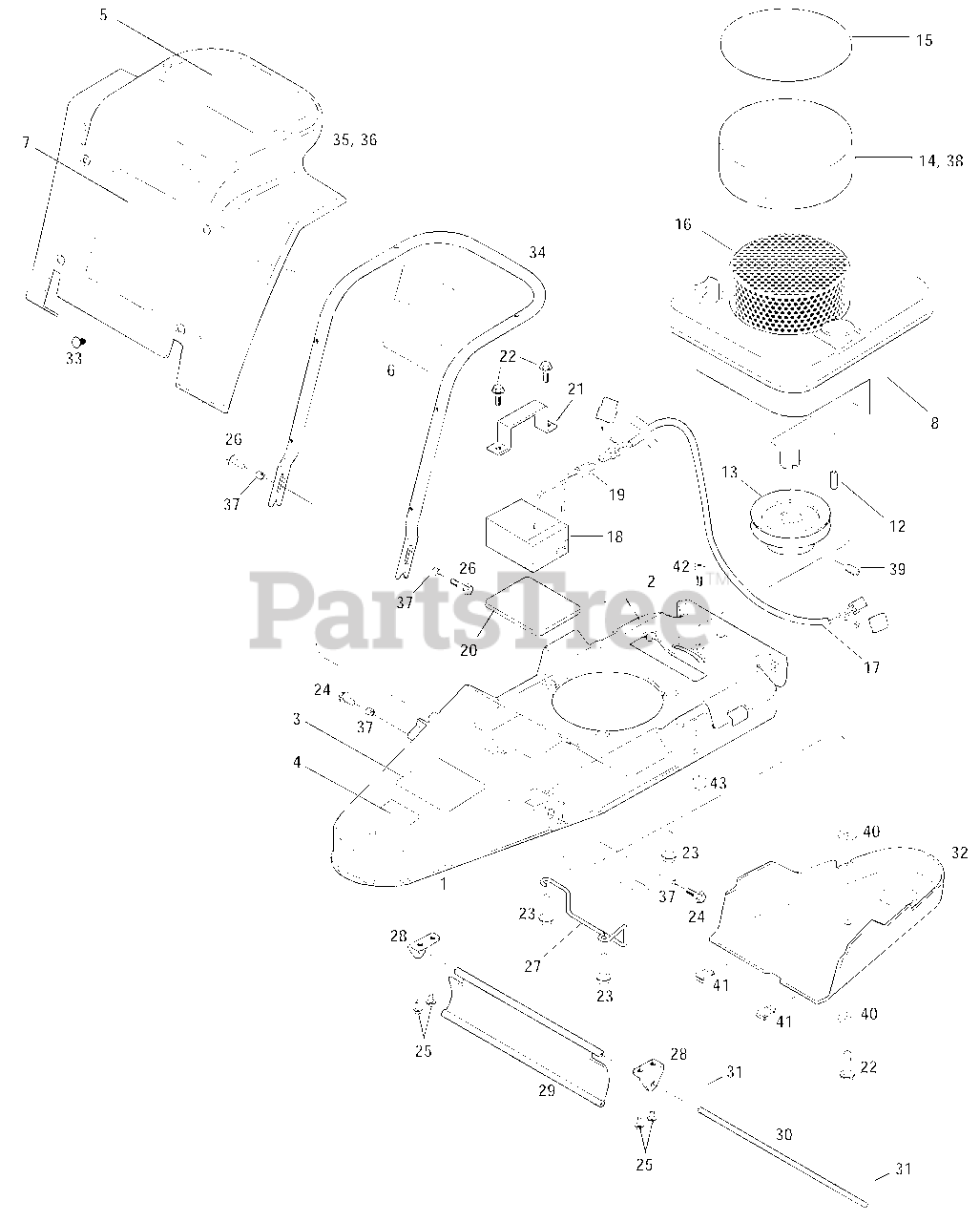

52048 - Troy-Bilt Walk-Behind Trimmer Engine, Deck, Covers And Guards, Battery Parts Diagram

Walk-Behind Trimmer

Engine, Deck, Covers And Guards, Battery Parts Diagram

  • Title

1

MTD 1904421

Deck with decals.

Note: See Models 52029, 52028, 52027, 52036

$

$

Not available

MTD 1916486

Deck with decals.

Note: See Model 52048

$

$

Not available

2

MTD 1904511

Decal-Hot Surface

$

$

Not available

3

MTD 1904403

Decal-Warning/Thrown Objects

$

$

Not available

4

Troy-Bilt 1739687

Decal-Danger Feet/Hands

$7.49

$

Usually ships in 3-6 days

0

5

MTD 1904404

Decal-Engine Cover

$

$

Not available

6

Troy-Bilt 1915881

Decal-Parallel Trim Control

$

$

Currently unavailable

7

MTD 1904402

Decal-Logo, 6HP.

Note: See (Models 52029, 52028)

$

$

Not available

Troy-Bilt 1904401

Decal-Logo, 5HP.

Note: See Model 52027

$

$

Not available

MTD 1915882

Decal-Logo, 4HP.

Note: See Model 52036

$

$

Not available

Troy-Bilt 1916467

Decal-Logo, 5HP.

Note: See Model 52048

$

$

Currently unavailable

8

Engine-Quantum, 4HP Std.

Note: See Model 52036; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

Engine-Quantum, 5HP Std.

Note: See Model 52027, 52048; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

Engine-Quantum, 6HP Std.

Note: See Model 52028; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

Engine-Quantum, 6HP Electric.

Note: See Model 52029; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number.

$

$

Not available

12

Troy-Bilt 9301

Key, 3/16" x 1" Sq.
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

13

MTD 1915240

Pulley, 4" OD

$

$

Not available

14

Troy-Bilt 1915276

Engine Debris Guard/Foam
(Superseded to BS-693514)

$

$

Not available

15

Troy-Bilt 1915304

O-Ring/Engine Debris Guard

$

$

Not available

16

MTD 1916571

Engine Debris Guard

$

$

Not available

17

MTD 1910835

Wire Harness.

Note: See Model 52029

$

$

Not available

18

Troy-Bilt 1909647

Battery.

Note: See Model 52029

$164.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1909697

Battery Connector.

Note: See Model 52029

$23.99

$

Usually ships in 3-6 days

0

20

MTD 1915268

Battery Pad.

Note: See Model 52029

$

$

Not available

21

MTD 1915204001

Battery Bracket.

Note: See Model 52029

$

$

Not available

22

Troy-Bilt 90063

Hex Hd. Flange Screw, 5/16-18 x 1
(Superseded to 710-0602)

Note: Quantity of 3 for Model 52029 only. Quantity is 1 for Models 52028, 52027, 52036 and 52048.

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1768194

Hex Hd. Flange Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 1754128

Hex Hd Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

25

MTD 1909301

Hex Hd Flange Screw, 1/4-20 x 5/8

$

$

Not available

26

MTD 1763187

Hex Hd Flange Screw, 1/4-20 x 1

$

$

Not available

27

MTD 1910865

Belt Guide

$

$

Not available

28

MTD 1915219001

Flap Bracket

$

$

Not available

29

MTD 1915211

Deflector Shield

$

$

Not available

30

MTD 1915212

Deflector Shield Rod

$

$

Not available

31

Troy-Bilt 1185304

E-Ring, 5/16"

$

$

Not available

32

Troy-Bilt 1915205

Belt Cover

$

$

Not available

33

MTD 1915290

Push-In Fastener

$

$

Not available

34

Troy-Bilt 1915238001

Engine Cover Support

$

$

Currently unavailable

35

MTD 1904509

Engine Cover w/decals.

Note: See Model 52027

$

$

Not available

36

MTD 1904510

Engine Cover w/decals.

Note: See Model 52029, 52028

$

$

Not available

MTD 1916626

Engine Cover w/decals.

Note: See Model 52036

$

$

Not available

Troy-Bilt 1916485

Engine Cover w/decals.

Note: See Model 52048

$

$

Currently unavailable

37

MTD 1915320

Spacer

$

$

Not available

38

UNKNOWN

$

$

Not available

39

Troy-Bilt 9677

Set Screw
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 94018

Washer
(Superseded to GW-94018)

$

$

Not available

41

Troy-Bilt 9218

Clip
(Superseded to GW-9218)

$

$

Not available

42

Troy-Bilt 9719

Socket Hd. Capscrew, 1/4-20 x 1
(Superseded to GW-9719)

$5.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1185814

Toplock Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0
