52025 - Troy-Bilt Brush Cutter (SN: 0552458 & Above) DRIVE SHAFT AND LOWER HEAD ASSEMBLY Parts Diagram

Brush Cutter

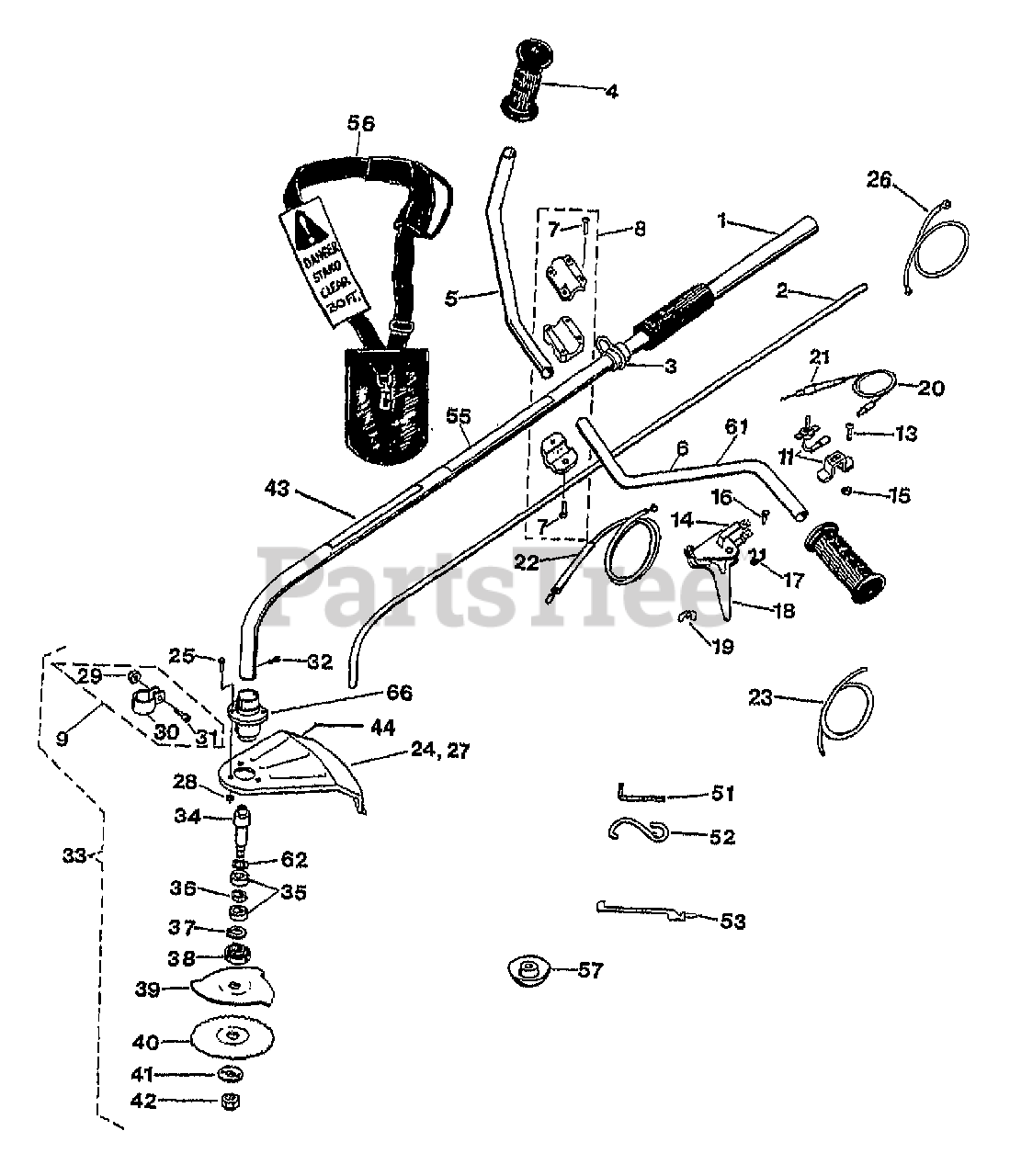

DRIVE SHAFT AND LOWER HEAD ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt H216120

HOUSING-DRIVESHAFT

$

$

Currently unavailable

2

Troy-Bilt H205573

SHAFT-DRIVE 5/16X57"

$

$

Currently unavailable

3

Troy-Bilt H212847

RING-CARRYING

$

$

Currently unavailable

4

Troy-Bilt H204824

GRIP-HANDLEBAR

$

$

Currently unavailable

5

Troy-Bilt H216118

HANDLEBAR-RH W/GRIP

$

$

Currently unavailable

6

Troy-Bilt H216119

HANDLEBAR-LH W/GRIP

$

$

Currently unavailable

7

Troy-Bilt H200734

SCR-HXSKT 1/4-20X.75 (ONLY AVAILABLE IN ITEM NO. 8)

$

$

Currently unavailable

8

Troy-Bilt H213016

KIT-H/BAR CLAMP (INCL. 7)

$

$

Currently unavailable

9

Troy-Bilt H212972

KIT (INCL. 29-31)

$

$

Currently unavailable

?10

Troy-Bilt H209370

CONTROL-ON/OFF SWITCH (INCL. 10-19)

$

$

Currently unavailable

11

Troy-Bilt H209372

SWITCH-ON/OFF (INCL. BRACKET)

$

$

Currently unavailable

?12

Troy-Bilt H209373

ASSM-CLAMP (INCL. 13-15)

$

$

Currently unavailable

13

Troy-Bilt H205594

SCR-PHP M10-32X.75 ZP

$

$

Currently unavailable

14

Troy-Bilt H205596

KIT-CLAMP TRG. H205596

$

$

Currently unavailable

15

Troy-Bilt H205595

NUT-HH M10-32X.125

$

$

Currently unavailable

16

0

SCREW, HEX HD #10-32X1"

$

$

Not available

17

0

SPRING, THROTTLE CONTROL

$

$

Not available

18

Troy-Bilt H205532

ASSM-TRIGG H205532 (INCL. 16-19)

$

$

Currently unavailable

19

0

NUT, WING #10-32

$

$

Not available

20

Troy-Bilt H212582

HARNESS

$

$

Currently unavailable

21

Troy-Bilt H209371

WIRE CONNECTOR & COVER

$

$

Currently unavailable

22

Troy-Bilt H215478

CABLE-THROTTLE

$

$

Currently unavailable

23

Troy-Bilt H216122

COVER-CABLE

$

$

Currently unavailable

24

Troy-Bilt H212873

SHIELD-GRASS (INCL. 25,27,28)

$

$

Currently unavailable

25

Troy-Bilt H213013

SCR.& NUT

$

$

Currently unavailable

26

Troy-Bilt H216121

WIRE-GROUND

$

$

Currently unavailable

27

Troy-Bilt H212873

SHIELD-GRASS

$

$

Currently unavailable

28

Troy-Bilt H209445

KIT-HDW DUSTSHIELD

$

$

Currently unavailable

29

Troy-Bilt H206438

NUT-HF/LK 1/4-20 ZP

$

$

Currently unavailable

30

0

CLAMP, LOWER HEAD (ONLY AVAILABLE IN #9)

$

$

Not available

31

Troy-Bilt H200734

SCR-HXSKT 1/4-20X.75

$

$

Currently unavailable

32

Troy-Bilt H200725

SCR #10-32X5/16

$

$

Currently unavailable

33

Troy-Bilt H213656

ASSM-LOWER HEAD (INCL. 9,34-38,41,42,62 AND 66)

$

$

Currently unavailable

34

Troy-Bilt H213448

LOWER ARBOR-SQUARE

$

$

Currently unavailable

35

Troy-Bilt H208960

BEARING

$

$

Currently unavailable

36

Troy-Bilt H212871

ASSM-LOWER HEAD SPACER

$

$

Currently unavailable

37

Troy-Bilt H205417

RING-RETAINING

$

$

Currently unavailable

38

Troy-Bilt H209058

WASHER-CUP

$

$

Currently unavailable

39

Troy-Bilt H212090

BLADE-8" TRIKUT HOFFCO

$

$

Currently unavailable

40

Troy-Bilt H212091

BLADE-8" BRUSHCUTTER

$

$

Currently unavailable

41

Troy-Bilt H209301

WASHER-ARBOR 3/8

$

$

Currently unavailable

42

Troy-Bilt H205961

NUT W/NYLON INSERT 3/8-24

$

$

Currently unavailable

43

Troy-Bilt H216123

DECAL-LOGO TROY-BILT

$

$

Currently unavailable

44

Troy-Bilt H215036

KIT-LINE CUT OFF (INCL. BLADE & BLADE MOUNTING HARDWARE)

$

$

Currently unavailable

51

Troy-Bilt H205636

WRENCH-ALLEN 3/16

$

$

Currently unavailable

52

Troy-Bilt H205528

LOWER HEAD TOOL

$

$

Currently unavailable

53

Troy-Bilt H214206

TIE-CABLE

$

$

Currently unavailable

55

Troy-Bilt H213187

DECAL-H/B LUBE INST

$

$

Currently unavailable

56

Troy-Bilt H207429

HARNESS W/HIP PAD RH

$

$

Currently unavailable

56

Troy-Bilt H212524

HARNESS-LEFT HAND

$

$

Currently unavailable

57

Troy-Bilt H10745

KIT-GLIDE BALL

$

$

Currently unavailable

?59

Troy-Bilt H216124

DECAL-MODEL/SERIAL NUMBER

$

$

Currently unavailable

?60

Troy-Bilt H211911

DECAL-MADE IN AMERICA

$

$

Currently unavailable

61

Troy-Bilt H211503

DECAL-GUARDIAN TRIANGLE

$

$

Currently unavailable

62

Troy-Bilt H206415

SPACER

$

$

Currently unavailable

66

0

AVAILABLE IN ITEM NO. 33

$

$

Not available

Troy-Bilt H212316

CUP-MEASURING

$

$

Currently unavailable

Troy-Bilt H212112

GOGGLES

$

$

Currently unavailable

Troy-Bilt H208907

COIL-REFILL 40' LINE

$

$

Currently unavailable

Troy-Bilt H216125

ASSM-MONOFILAMENT HEAD (INCL. 1-7)

$

$

Currently unavailable
