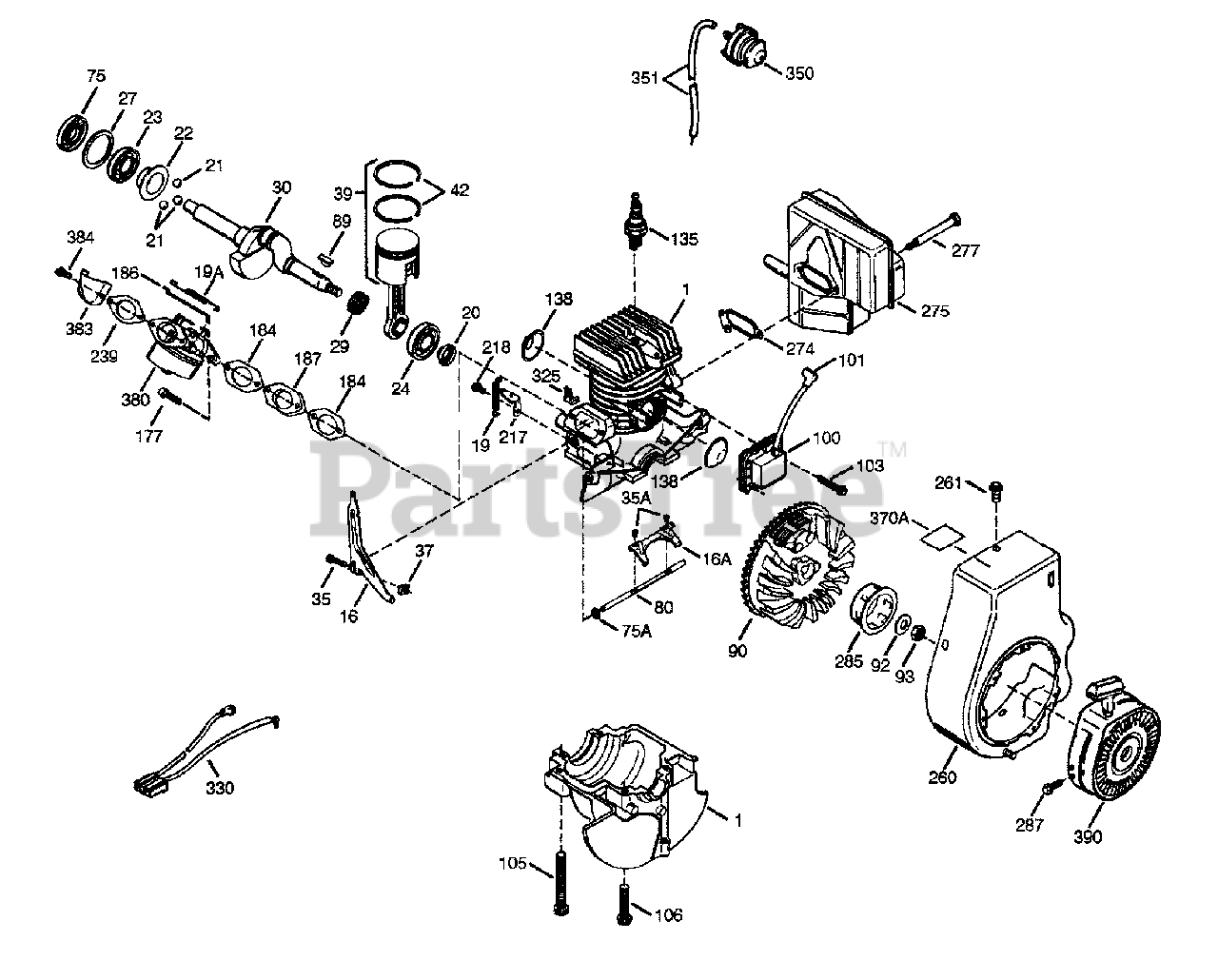

520 R (31A-262-100) - Cub Cadet 20" Snow Thrower Engine (1998) Engine Assembly & Muffler Parts Diagram

20" Snow Thrower Engine

Engine Assembly & Muffler Parts Diagram

  • Title
1

Cub Cadet TC-250296A

Cylinder Ass'y

$

$

Not available

16

Cub Cadet TC-490317

Governor Lever

$

$

Not available

16A

Cub Cadet TC-490304

Governor Lever

$5.49

$

Usually ships in 3-12 days

0

19

Cub Cadet TC-490325

Extension Spring

$

$

Not available

19A

Cub Cadet TC-490318

Throttle Link Spring

$5.49

$

In Stock, Qty 9

0

20

$5.49

$

In Stock, only 1 left!

0

21

Cub Cadet TC-570673

Ball Bearing

$1.99

$

In Stock, only 1 left!

0

22

Cub Cadet TC-510338

Slide Ring

$3.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-530158

Ball Bearing

$26.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-530161

Ball Bearing

$22.99

$

In Stock, only 1 left!

0

27

Cub Cadet TC-530159

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-530164

Bearing Strip (31 Needles)

$13.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-290627

Crankshaft

$

$

Not available

35

Cub Cadet TC-29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 3 left!

0

35A

Cub Cadet TC-650506

Screw, 4-40 x 1/4"

$1.49

$

In Stock, Qty 14

0

37

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

39

Cub Cadet TC-310277B

Piston & Rod Ass'y
(Superseded to TC-310291A)

$106.99

$

Usually ships in 3-12 days

0

42

$

$

Not available

?43

Cub Cadet TC-310167

Piston Ring Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

75

$7.49

$

Usually ships in 3-12 days

0

75A

$3.99

$

Usually ships in 3-12 days

0

80

Cub Cadet TC-490305

Governor Shaft

$11.99

$

Usually ships in 3-12 days

0

89

Cub Cadet TC-611191

Flywheel Key

$1.99

$

Usually ships in 3-12 days

0

90

$

$

Not available

92

Cub Cadet TC-650815

Bell Washer

$1.99

$

In Stock, Qty 10

0

93

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Cub Cadet TC-34443A

Solid State Ignition
(Superseded to TC-34443D)

Note: (Incl. 101)

$44.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Cub Cadet TC-651007

Screw, Torx T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

105

Cub Cadet TC-650892

Screw, 5/16-18 x 2-3/16"

$1.99

$

In Stock, only 1 left!

0

106

Cub Cadet TC-650891

Screw, 5/16-18 x 1-5/8"

$

$

Not available

135

Cub Cadet 759-3331

Resistor Spark Plug

$3.99

$

In Stock, only 2 left!

0

138

Cub Cadet TC-570683

Port Cover

$3.99

$

Usually ships in 3-12 days

0

177

Cub Cadet TC-650959

Screw, 5/32 Allen, 1/4-20 x 5/8"

$1.99

$

In Stock, Qty 8

0

184

Cub Cadet TC-510326A

Carburetor Gasket

$1.49

$

In Stock, only 3 left!

0

186

Cub Cadet TC-490319

Governor Link

$1.99

$

In Stock, only 4 left!

0

$3.99

$

In Stock, only 1 left!

0

217

Cub Cadet TC-570667A

Control Lever

$1.99

$

Usually ships in 3-12 days

0

218

Cub Cadet TC-650847

Screw, 8-32 x 1/2"

$1.99

$

In Stock, only 2 left!

0

239

Cub Cadet TC-35815

Air Cleaner Gasket

$1.49

$

In Stock, Qty 20+

0

260

Cub Cadet TC-350460

Blower Housing

$

$

Not available

261

Cub Cadet TC-650894

Screw, 5/16-18 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

274

Cub Cadet TC-510343A

Exhaust Gasket

$3.99

$

In Stock, only 1 left!

0

275

$56.99

$

In Stock, only 1 left!

0

277

Cub Cadet TC-650893

Screw, 5/16-18 x 3-13/64"

$5.49

$

In Stock, only 2 left!

0

285

Cub Cadet TC-34449A

Starter Cup

$10.99

$

Usually ships in 3-12 days

0

287

Cub Cadet TC-650926

Screw, 8-20 x 21/64"

$1.49

$

In Stock, only 3 left!

0

325

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, only 4 left!

0

330

Cub Cadet TC-611158

Wire Harness

$

$

Not available

350

Cub Cadet TC-570629A

Primer Ass'y
(Superseded to TC-570629B)

$10.99

$

In Stock, Qty 6

0

351

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 10

0

370A

Cub Cadet TC-36261

Lubrication Decal

$

$

Not available

380

Cub Cadet TC-640094

Carburetor
(Superseded to TC-640311)

Note: (Incl. 184)

$

$

Not available

383

$3.99

$

In Stock, only 1 left!

0

384

Cub Cadet TC-650229

Screw, Torx T-25, 10-32 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

390

Cub Cadet TC-590745

Rewind Starter
(Superseded to TC-590787)

$53.99

$

In Stock, only 1 left!

0
