520 R (317-262-100) - Cub Cadet 20" Snow Thrower (1997) Auger, Drive Parts Diagram

20" Snow Thrower

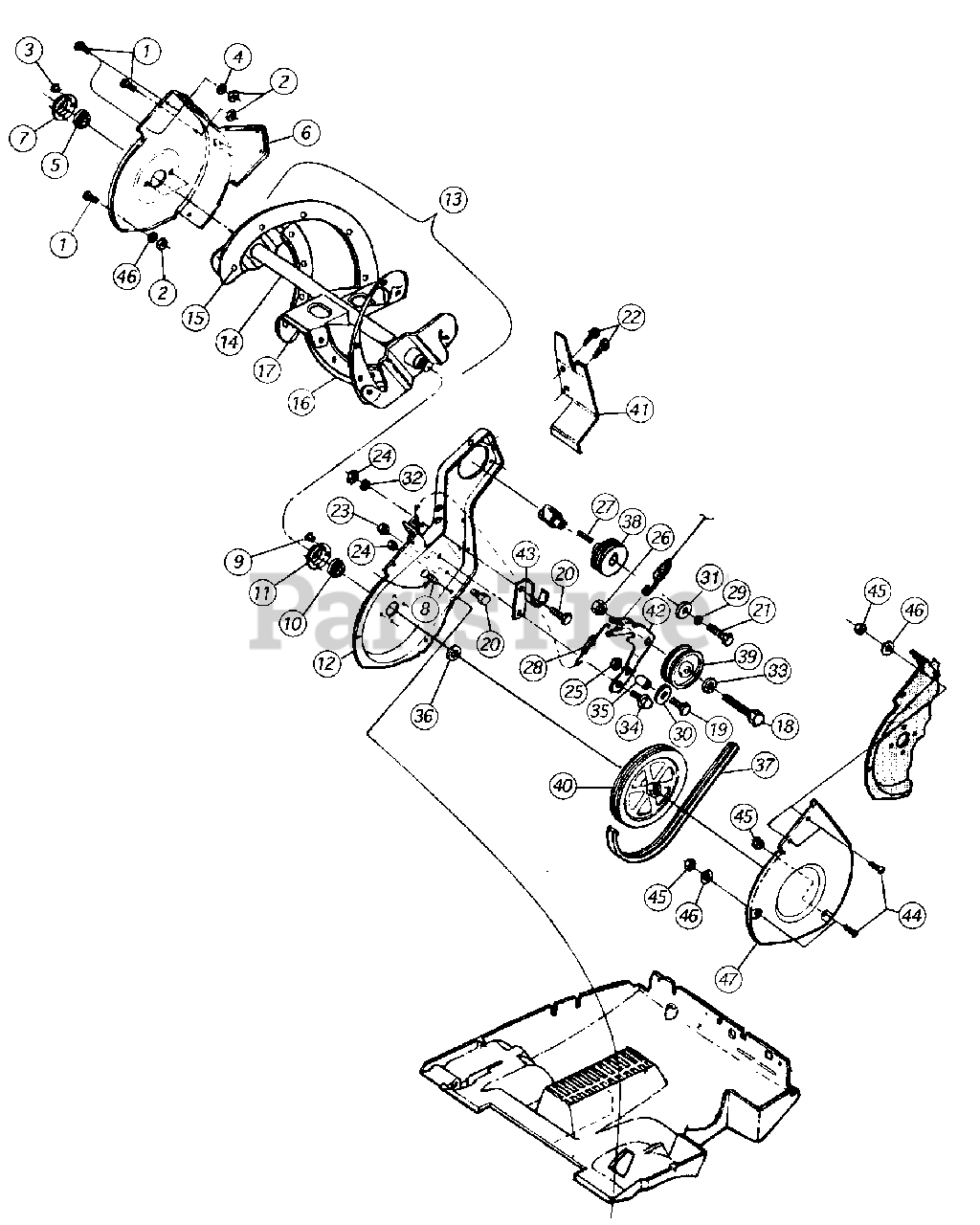

Auger, Drive Parts Diagram

  • Title

1

Cub Cadet 710-0473

Screw, Truss Machine #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

In Stock, only 1 left!

0

3

Cub Cadet 728-0145

Rivet, .252 x .31
(Superseded to 928-0145)

$

$

Not available

4

Cub Cadet 736-0931

Washer, Flat, .203 x .41 x .04

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 741-0976

Ball Bearing, Auger Axle
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

6

Cub Cadet 784-0355

Frame RH

Note: Code 0498

Variations

Cub Cadet 784-0355-0498

FRAME (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0355-0662

FRAME (RH) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0355-0665

FRAME (RH) - YARDMAN GREEN (0665)

$

$

Not available

$

$

7

Cub Cadet 784-0357

Retainer, Bearing

$

$

Not available

8

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 728-0145

Rivet, .252 x .31
(Superseded to 928-0145)

$

$

Not available

10

Cub Cadet 741-0976

Ball Bearing, Auger Axle
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

11

Cub Cadet 784-0357

Retainer, Bearing

$

$

Not available

12

Cub Cadet 784-0359

Frame LH

Note: Code 0498

Variations

Cub Cadet 784-0359-0637

FRAME (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 684-0087

Auger Assembly, Complete

$

$

Not available

14

Cub Cadet 684-0085

Auger Assembly, Welded

$

$

Not available

15

Cub Cadet 728-0197

Rivet, Truss
(Superseded to 928-0197)

$

$

Not available

16

Cub Cadet 731-1717

Auger Blade, Rubber

$20.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-1716

Auger Paddle, Rubber

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 7

0

19

Cub Cadet 710-0597

Screw, Hex Cap 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 14

0

20

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-1245

Screw, Hex Cap, 5/16-18 x .86

$8.49

$

In Stock, only 2 left!

0

22

Cub Cadet 710-1335

Screw, Hex Wash Hd 10-24 x .5

$

$

Not available

23

Cub Cadet 712-0265

Nut, Hex Sems, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

25

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

26

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 714-0105

Key, Square, 3/16 x 1.0
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0691

Spring, Extension

$

$

Not available

29

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0123

Washer, Flat, .344 x 1.12
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0262

Washer, Flat, .385 x .87 x .092

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0463

Washer, Flat, .25 x .62

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 736-3050

Washer, Flat, .406 x .81 x .051

$4.49

$

In Stock, Qty 16

0

34

Cub Cadet 738-0961

Shoulder Screw .498 x .15: 5/16-18

$

$

Not available

35

Cub Cadet 750-1045

Spacer, Belt Brake

$

$

Not available

36

Cub Cadet 750-1046

Spacer, Auger PUlley

$

$

Not available

37

Cub Cadet 754-0452

Belt, Auger Drive
(Superseded to 954-0452)

$51.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 756-0652

Pulley, Engine

$

$

Not available

39

Cub Cadet 756-0199

Pulley, Flat Idler w/ Flanges

$25.99

$

In Stock, only 1 left!

0

40

Cub Cadet 756-0654

Pulley, Auger

$

$

Not available

41

Cub Cadet 784-0356

Shield, Belt

$

$

Not available

42

Cub Cadet 784-0358

Idler Arm

$

$

Not available

43

Cub Cadet 784-0362

Bracket, Belt

$

$

Not available

44

Cub Cadet 710-0425

Screw, Truss Machine #10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 712-0272

Nut, Hex Sems #10-24

$3.99

$

In Stock, only 1 left!

0

46

Cub Cadet 736-0400

Washer, Flat, .218 x .62 x .063

$5.49

$

In Stock, Qty 14

0

47

Cub Cadet 784-0360

Belt Guard
(Superseded to 784-0360-0637)

Note: Code 0498

Variations

Cub Cadet 784-0360-0637

GUARD BELT 582784 - POWDER BLACK (0637)

$

$

Not available

$

$
