520 M (1694585) - Simplicity 20" Snow Thrower, 5hp Frame, Handles & Engine Group (178fheg) Parts Diagram

20" Snow Thrower, 5hp

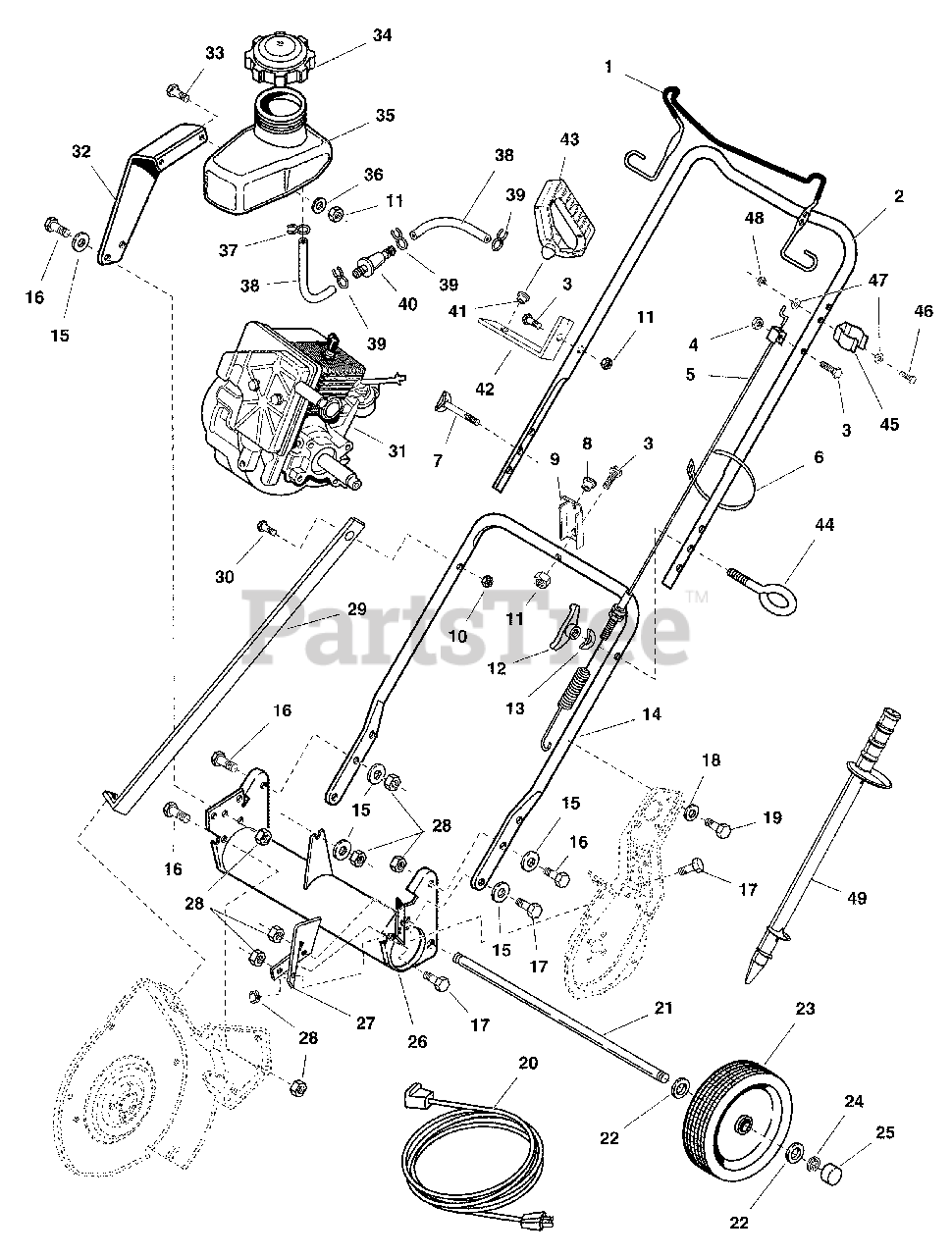

Frame, Handles & Engine Group (178fheg) Parts Diagram

  • Title

1

Simplicity 1720525SM

HANDLE, Auger Control

$

$

Not available

2

Simplicity 1720641SM

HANDLE, Upper
(Superseded to 1686723SM)

$185.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921961SM

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1923358SM

NUT,Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1720323SM

CABLE, Auger Control

$33.99

$

Usually ships in 2-12 days

0

6

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

7

Simplicity 1931338SM

BOLT, Rd. Hd., 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 1716678SM

SNAP BUSHING, 3/8

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1720574SM

BRACKET, Chute Rotator Rod

$19.99

$

Usually ships in 2-12 days

0

10

Simplicity 1933896SM

NUT, Hex Lk., #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1920397SM

NUT, Hex Lk. Esna, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1716632SM

KNOB, Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

13

Simplicity 1717312SM

WASHER, Curved, 5/16

$

$

Not available

14

Simplicity 1720573SM

HANDLE, Lower

$38.99

$

Usually ships in 2-12 days

0

15

Simplicity 1919326SM

WASHER, 3/4

$4.49

$

In Stock, Qty 5

0

16

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

17

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

20

CORD,Extension (Electric Start Models)

$

$

Not available

21

Simplicity 1716608SM

SHAFT, Axle

$13.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 7026240SM

TIRE, Semi-pneumatic
(Superseded to 760714MA)

$

$

Not available

24

Simplicity 1716622SM

RING, Retainer, Ext., #37

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1716664SM

CAP,Hub
(Superseded to 7012323YP)

$3.49

$

In Stock, Qty 6

0

26

Simplicity 1716613SM

FRAME ASSY.

$

$

Not available

27

Simplicity 1719541SM

BRACKET, Reinforcement

$9.49

$

Usually ships in 2-12 days

0

28

Simplicity 1919438SM

NUT, Hex Lk.,Esna, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1720322SM

STRAP, Support

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 2860604SM

SCREW, Hex Wshr. Hd., #10-24 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

31

ENGINE, Manual Start, Model HSK850, Type 8319D

$

$

Not available

31

ENGINE, Electric Start, Model HSK850, Type 8325D

$

$

Not available

32

Simplicity 1716638SM

BRACKET, Fuel

$7.49

$

Usually ships in 2-12 days

0

33

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

34

Simplicity 1716646SM

CAP, Fuel

$41.99

$

Usually ships in 2-12 days

0

35

Simplicity 1716634SM

TANK, Fuel
(Superseded to 1738435YP)

$237.99

$

Usually ships in 2-12 days

0

36

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1679061SM

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 1716681SM

HOSE, Fuel, 5-1/2 long

$3.99

$

In Stock, only 1 left!

0

39

Simplicity 2860112SM

CLAMP, Wire Form

$3.99

$

Usually ships in 2-12 days

0

40

Simplicity 2173206SM

FILTER, Gas
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

41

Simplicity 1716676SM

SNAP BUSHING, 1/4

$4.49

$

Usually ships in 2-12 days

0

42

Simplicity 1720640SM

BRACKET, Starter Handle
(Superseded to 1686723SM)

$185.99

$

Usually ships in 2-12 days

0

43

Simplicity 7041954SM

HANDLE, Start (Mitten)

$9.99

$

In Stock, only 1 left!

0

44

Simplicity 7075342SM

HOLDER, Clean-Out Tool, Lower

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1726728SM

HOLDER, Clean-Out Tool, Upper
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

46

Simplicity 7091757SM

SCREW, #10-24 x 1-1/4, Hex Head Cap

$3.49

$

In Stock, Qty 8

0

47

Simplicity 7090011SM

WASHER, #10 Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

48

Simplicity 7091267SM

NUT, #10-24 Hex Center Lock

$3.99

$

In Stock, Qty 6

0

49

Simplicity 7075909SM

TOOL, Clean-Out
(Superseded to 1736094YP)

$34.99

$

In Stock, only 3 left!

0
