520 i HD 60 - Husqvarna Hedge Trimmer ELECTRICAL Parts Diagram

Hedge Trimmer

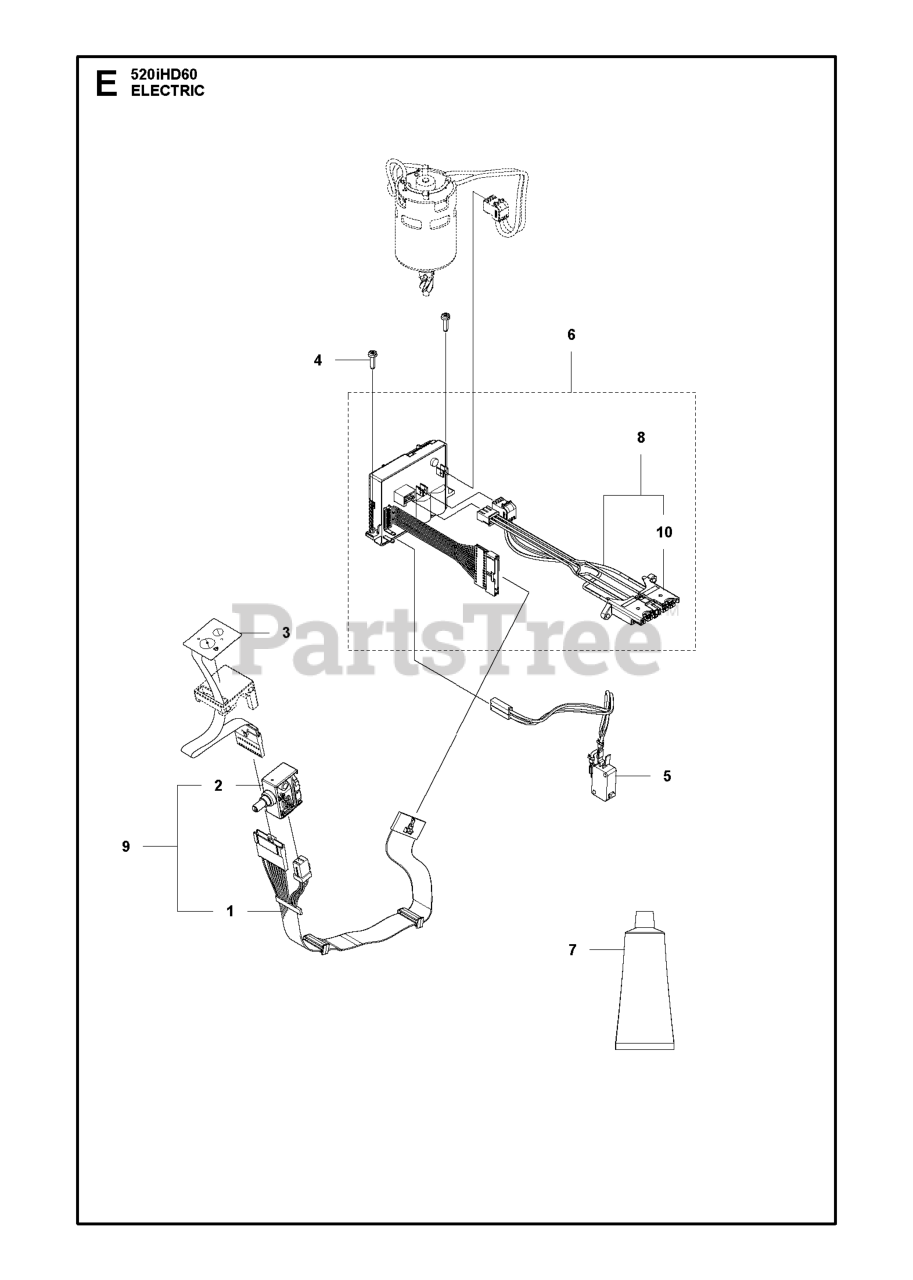

ELECTRICAL Parts Diagram

  • Title

5

Husqvarna 581531301

WIRING ASSY FRONT GUARD

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582050701

TRIGGER SWITCH IPX4

$50.99

$

In Stock, only 1 left!

0

7

Husqvarna 588176401

GREASE TUBE Q8 RUYSDAEL WR2

Note: SB-B1500023

$42.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579738201

KEY PAD 2 BUTTON TRIMMER DC (T
(Superseded to 584953102)

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 581946601

CONTROL UNIT PMDC SAFE HEDGE T

$227.99

$

Usually ships in 3-10 days

0

1

Husqvarna 583819701

WIRING ASSY TRIGGER HANDLE

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 579709301

WIRING ASSY

$34.99

$

In Stock, only 1 left!

0

9

Husqvarna 593896501

SWITCH KIT BATTERY HEDGETRIMME

$79.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593813001

CONNECTOR BATTERY

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0
