520 - Husqvarna Automower Robotic Lawn Mower (2018) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

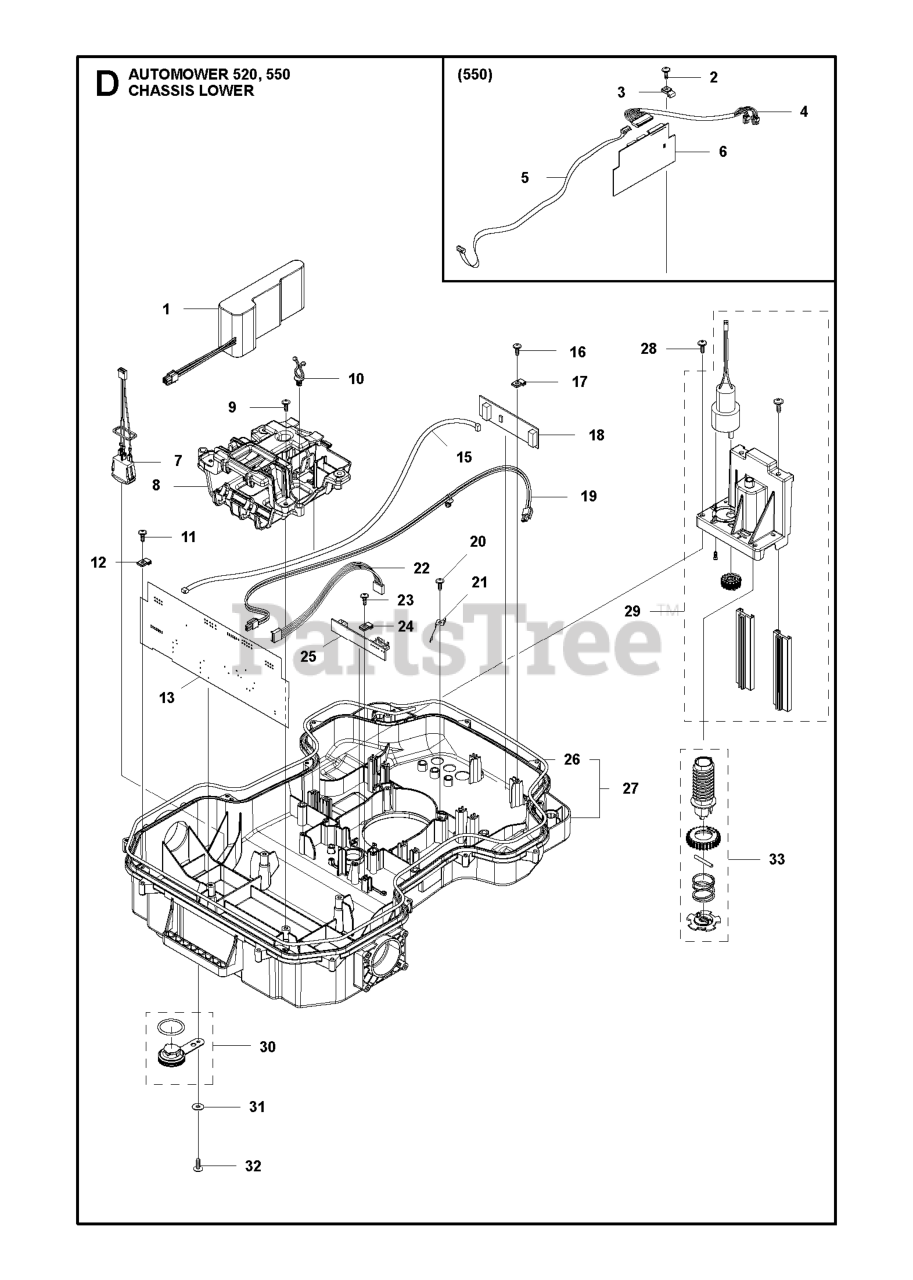

CHASSIS LOWER Parts Diagram

  • Title

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579708601

LOOM AUX

Note: AUX Cable

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

25

Husqvarna 579728502

PRINTED CIRCUIT ASSY PCBA CUTT

Note: Printed Circuit Height Adjustment

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 579708001

LOOM HEIGHT ADJUSTMENT

Note: Height Adjustment Wiring

$20.99

$

In Stock, only 1 left!

0

28

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

8

Husqvarna 580609602

HOLDER BATTERY

Note: Holder

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder Twist Lock

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 578285701

PRINTED CIRCUIT ASSY ULTRASONI

Note: Printed Circuit Ultrasonic

$148.99

$

Usually ships in 3-10 days

0

27

Husqvarna 583944502

CHASSIS KIT LOWER
(Superseded to 583944503)

Note: Chassis KIT

$74.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

1

Husqvarna 589585201

BATTERY LI-ION
(Superseded to 529606801)

Note: Battery AM520

$341.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581556101

SPRING GUIDE HEIGHT ADJUSTMENT

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580370702

LOOM CHARGING LINK HIGH CHARGI

Note: Charging Cable

$

$

Not available

7

Husqvarna 579708701

LOOM ON/ OFF

Note: Switch On-Off

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 581621202

PLUG KIT

Note: Plug KIT

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 579708201

LOOM LOOP SENSOR

Note: Sensor Cable

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 580614401

LOOM ULTRA SONIC EXTENSION
(Superseded to 580614402)

Note: US-Extension Wiring

$68.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 574874705

SEALING STRIP

Note: Sealing Strip (1 pcs, Ø5 mm)

$9.49

$

In Stock, Qty 6

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 734113741

WASHER

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 592852701

PRINTED CIRCUIT ASSY LOOP SENS

Note: Printed Circuit Loop Sensor

$62.99

$

Usually ships in 3-10 days

0

20

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

32

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 581621601

SCREW KIT

Note: Gear KIT

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592852601

PRINTED CIRCUIT ASSY PCBA MAIN

Note: Main Board

$341.99

$

Usually ships in 3-10 days

0

29

Husqvarna 501068301

MOTOR ASSY HEIGHT MOTOR

Note: Motor KIT

$145.99

$

Usually ships in 3-10 days

0
