520 E (31AE262-101) - Cub Cadet 20" Snow Thrower (1998) Frame & Handle Parts Diagram

20" Snow Thrower

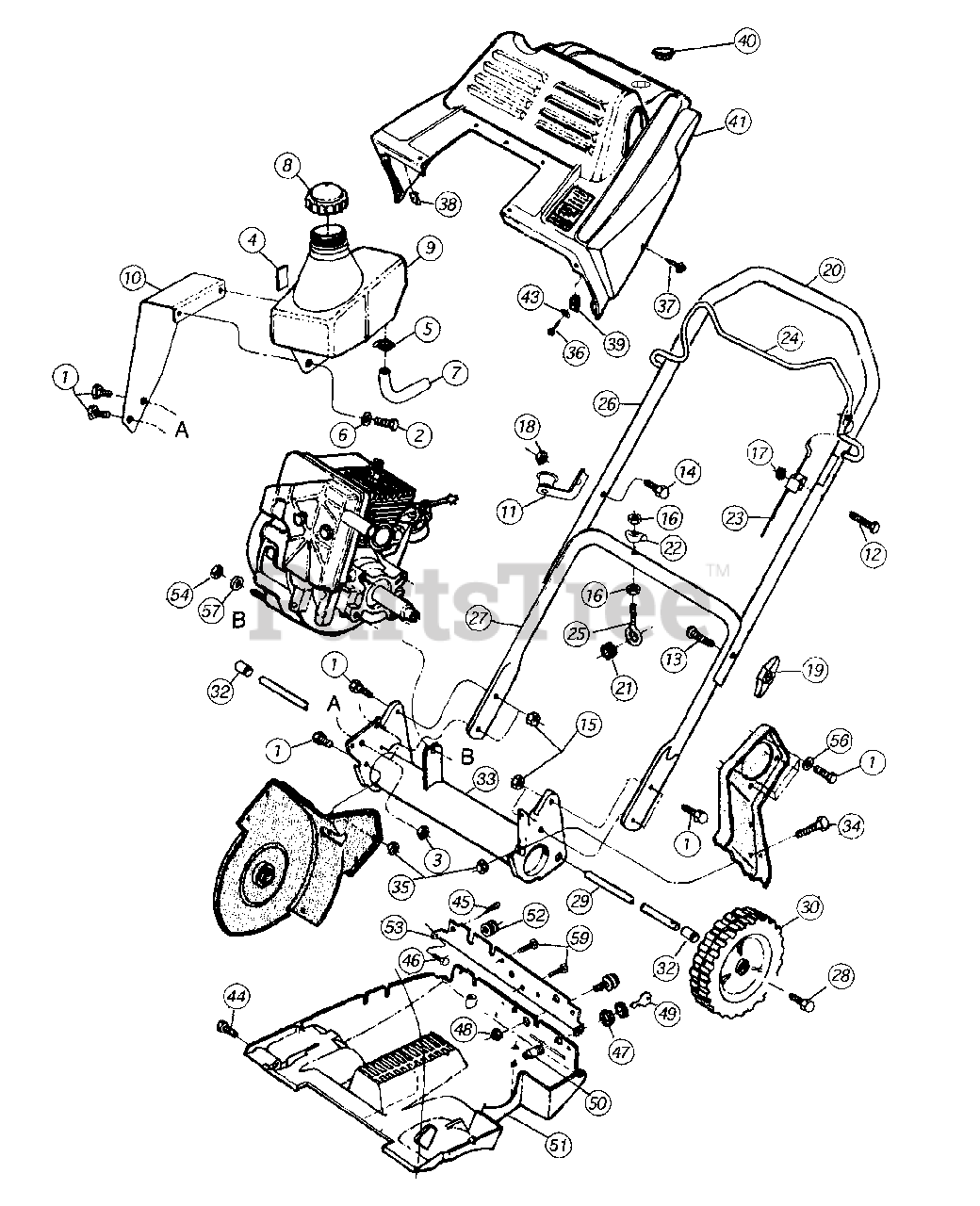

Frame & Handle Parts Diagram

  • Title

1

Cub Cadet 710-0118

Hex Screw: 5/16 - 18 x .75 Gr 2
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0896

Hex Screw: 1/4 - 14 x .625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0429

Nylock Nut

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 726-0205

Hose Clamp 1/2" OD

$3.99

$

In Stock, Qty 18

0

6

Cub Cadet 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 751-0535

Hose, Fuel Line

$

$

Currently unavailable

8

Cub Cadet 751-0634

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-0635

Fuel Tank

$

$

Not available

10

Cub Cadet 784-0368

Support Bracket

$

$

Not available

11

Cub Cadet 684-0089

Bracket Assembly, Rope Guide

$

$

Not available

12

Cub Cadet 710-0501

Hex Screw: 1/4 - 20 x 2.0 Gr 5

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1174

Carriage Bolt: 5/16 - 18 x 2.0 Lg. Carved

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0429

Nylock Nut

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

Hex Nut: 5/16 - 18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0324

Top Lock Nut Nylon Insert

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 712-0324

Top Lock Nut 1/4 - 20

$3.99

$

In Stock, Qty 16

0

19

Cub Cadet 720-0284

Knob Assembly

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet 720-0296

Foam Grip, Handle

$

$

Not available

21

Cub Cadet 735-0234

Grommet: .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet 736-0451

Side Lock Washer

$4.49

$

In Stock, Qty 11

0

23

Cub Cadet 746-0934

Drive Cable, Auger

$

$

Not available

24

Cub Cadet 747-0942

Auger Bail, Drive Dipped

$

$

Not available

25

Cub Cadet 747-0943

Eye Bolt 5/16 - 18

$

$

Not available

26

Cub Cadet 749-0994

Upper Handle

Variations

Cub Cadet 749-0994-0637

UPPER HANDLE POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 749-0995

Lower Handle
(Superseded to 749-0995-0637)

Variations

Cub Cadet 749-0995-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 710-0773

Tap Screw: 3/8 - 16 x .5

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 711-1123

Axle, Tube

$

$

Not available

30

Cub Cadet 734-1811

Wheel Assembly

$

$

Not available

32

Cub Cadet 750-1069

Spacer
(Superseded to 950-1069)

$

$

Not available

33

Cub Cadet 684-0086

Frame Assembly

$

$

Not available

34

Cub Cadet 710-1088

Hex Cap Screw: 5/16 - 18 x 1.00

$

$

Not available

35

Cub Cadet 712-0429

Nylock Nut

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 710-1329

Hex Screw

$

$

Not available

37

Cub Cadet 710-1339

Ab Screw

$

$

Not available

38

Cub Cadet 726-0342

Retainer Clip, U-Style

$

$

Not available

39

Cub Cadet 726-0344

U Nut

$

$

Not available

40

Cub Cadet 731-1133A

Snap-In Plug
(Superseded to 731-1133C)

$

$

Not available

41

Cub Cadet 731-1752

Upper Engine Cover

$

$

Not available

43

Cub Cadet 736-0400

Flat Washer

$5.49

$

In Stock, Qty 12

0

44

Cub Cadet 710-0258

Hex Screw: 1/4 - 20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 710-1334

Tap Screw: 10 - 24 x .75

$

$

Not available

46

Cub Cadet 710-1335

Tap Screw: 10 - 25 x .75

$

$

Not available

47

Cub Cadet 712-0252

Jam Nut: 5/8 - 32 x .12

$5.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-0324

Top Lock Nut Nylon Insert

$3.99

$

In Stock, Qty 16

0

49

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

50

Cub Cadet 725-1425

Recoil Starter Key
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

51

Cub Cadet 731-1751

Lower Engine Cover

$

$

Not available

52

Cub Cadet 750-1049

Grommet: .280 x .750 x .40

$

$

Currently unavailable

53

Cub Cadet 784-0361

Control Panel

$

$

Not available

54

Cub Cadet 712-0429

Nylock Nut

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

?58

Cub Cadet 710-1003

Tap Screw
(Superseded to 710-04669)

Note: (Electric Start Models only)

$3.49

$

In Stock, Qty 20+

0

59

UNKNOWN

$

$

Not available

?60

Cub Cadet 629-0236

Cord Assembly

Note: (Electric Start Models only)

$

$

Not available
