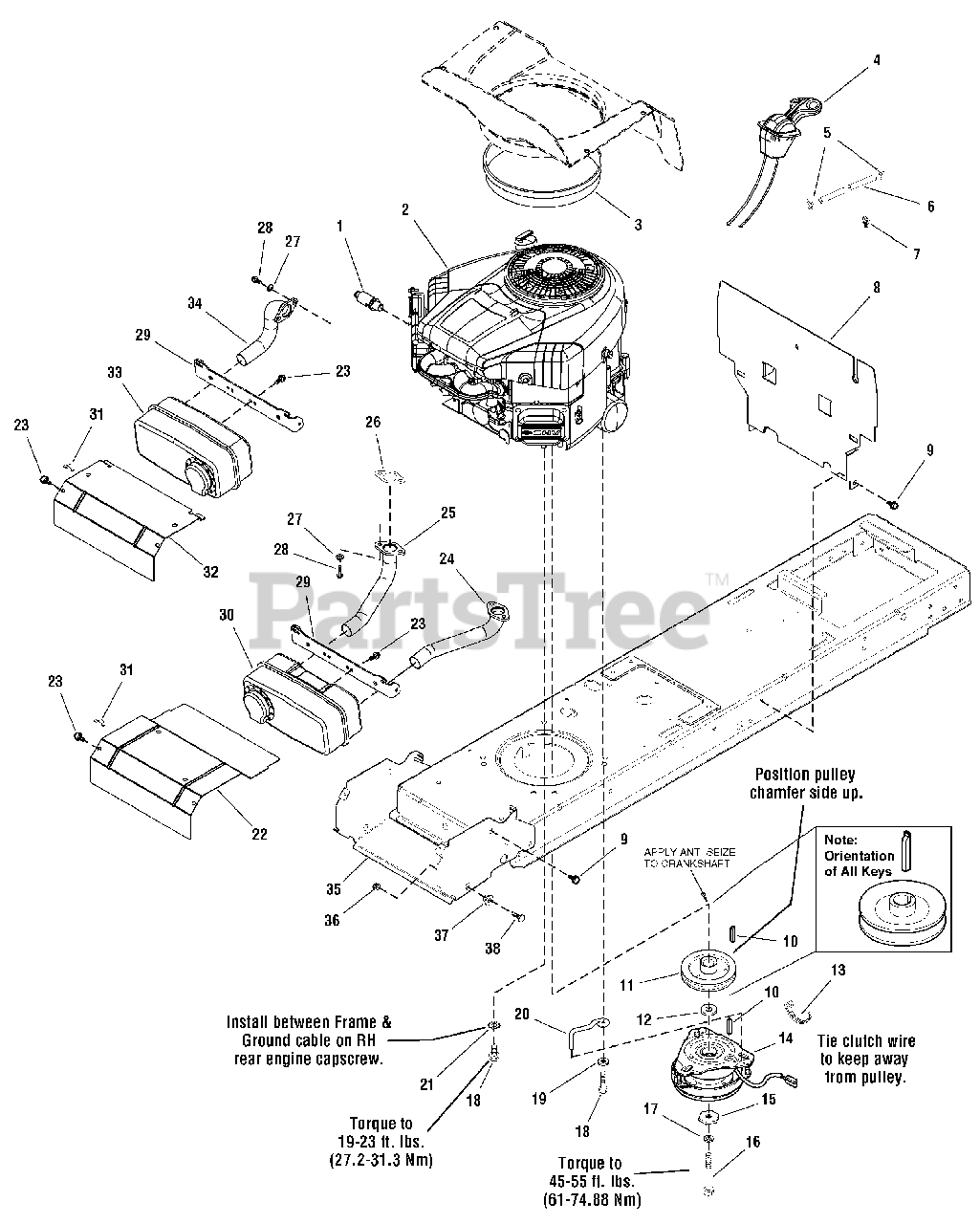

520 (2690468) - AGCO 38" Lawn Tractor, 20hp Briggs & Stratton Engine Group - Electric Clutch 44" & 50" Parts Diagram

38" Lawn Tractor, 20hp Briggs & Stratton

Engine Group - Electric Clutch 44" & 50" Parts Diagram

  • Title

1

Simplicity 1717473

VALVE, Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

2

ENGINE, 18HP Kohler Single Courage Pro

Note: (Model # SV540S-18 HP Spec #PS-SV540-0017)

$

$

Not available

2

ENGINE, 20HP Briggs & Stratton Intek Twin

Note: (Model # 406577 Type # 0143 Trim # B1)

$

$

Not available

2

ENGINE, 22HP Briggs & Stratton Intek Twin

Note: (Model # 445677 Type # 0421 Trim # B1)

$

$

Not available

2

ENGINE, 24HP Briggs & Stratton Intek Twin

Note: (Model # 441777 Type # 0117 Trim # B1)

$

$

Not available

3

Simplicity 1731970

EDGING, Rubber, Short
(Superseded to 1731970SM)

Note: (B&S V-Twin & Kohler Single)

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 1731409

CONTROL, Throttle Double 19" Long
(Superseded to 1734510SM)

Note: (Kohler Single)

$109.99

$

Usually ships in 2-12 days

0

4

Simplicity 1731411

CONTROL, Throttle Double 34.7" Long
(Superseded to 1734505SM)

Note: (B&S Twin)

$97.99

$

In Stock, only 2 left!

0

5

Simplicity 2860112

CLAMP, Hose Type E
(Superseded to 2860112SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1718678

HOSE, Fuel, 45-1/2" Long

Note: (B&S V-Twin & Kohler Single)

$

$

Not available

6

Simplicity 1732001

HOSE, Fuel 55" Long
(Superseded to 845503)

Note: (B&S Single Only)

$35.99

$

Usually ships in 2-12 days

0

7

Simplicity 1730268

CLIP, Hose, Plastic, Push-In
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1728058A

SHIELD, Heat
(Superseded to 1728058SM)

$42.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

10

Simplicity 2154096

KEY, Square, 1/4 x 1/4 x 29/32 Hard
(Superseded to 2154096SM)

$6.99

$

In Stock, only 1 left!

0

11

Simplicity 1723497

PULLEY
(Superseded to 1723497SM)

$155.99

$

Usually ships in 2-12 days

0

12

Simplicity 1732208

SPACER, 1.01 ID x 1.68 OD x 3/8 LG Powdered Metal Yellow
(Superseded to 1732208SM)

$7.99

$

In Stock, only 1 left!

0

13

Simplicity 1701011

TIE, Self Locking 7-5/16
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

14

Simplicity 1731275

CLUTCH ASSEMBLY, Mid-Range OGURA
(Superseded to 1687296SM)

$402.99

$

In Stock, only 1 left!

0

15

Simplicity 1708264

WASHER
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

16

Simplicity 2860631

CAPSCREW, 7/16-20 x 3
(Superseded to 2860631SM)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1918199

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 2828635

SCREW, Hex, Washer Head, Taptite, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1732199

RETAINER, Clutch, Black
(Superseded to 1732199SM)

$21.99

$

Usually ships in 2-12 days

0

21

Simplicity 2820427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1727997A

SHIELD, Heat B&S Twin 20GA
(Superseded to 1727997ASM)

$33.99

$

Usually ships in 2-12 days

0

23

Simplicity 1925003

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

24

Simplicity 1727980

PIPE, Exhaust w/Flange LH B&S INT
(Superseded to 1727980SM)

$37.99

$

In Stock, only 2 left!

0

25

Simplicity 1727979

PIPE, Exhaust w/Flange RH B&S INT
(Superseded to 1727979SM)

$37.99

$

In Stock, only 1 left!

0

26

Simplicity 1731214

GASKET, Exhaust B&S
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1936228

CAPSCREW, Socket Head, 5/16-18 x 3/4
(Superseded to 1936228SM)

$4.49

$

In Stock, only 1 left!

0

29

Simplicity 1727976A

BRACKET, Muffler Mount 12GA
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

30

Simplicity 1727994

MUFFLER, B&S Twin
(Superseded to 1727994SM)

$98.99

$

Usually ships in 2-12 days

0

31

Simplicity 2834683

CLIP, Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1727996A

SHIELD, Heat Single Cycle 20GA
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

33

Simplicity 1727993

MUFFLER, B&S Single
(Superseded to 1727993SM)

$93.99

$

In Stock, only 1 left!

0

34

Simplicity 1727978

PIPE, Exhaust w/Flange Kohler
(Superseded to 1727978SM)

$40.99

$

Usually ships in 2-12 days

0

35

Simplicity 1727982A

SUPPORT, Muffler
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

36

Simplicity 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

37

Simplicity 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, Qty 7

0

38

Simplicity 1931335

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0
