51998 - Toro 18" Straight-Shaft String Trimmer (SN: 322000001 - 322999999) (2022) 18in Straight Shaft Gas Trimmer Assembly Parts Diagram

18" Straight-Shaft String Trimmer

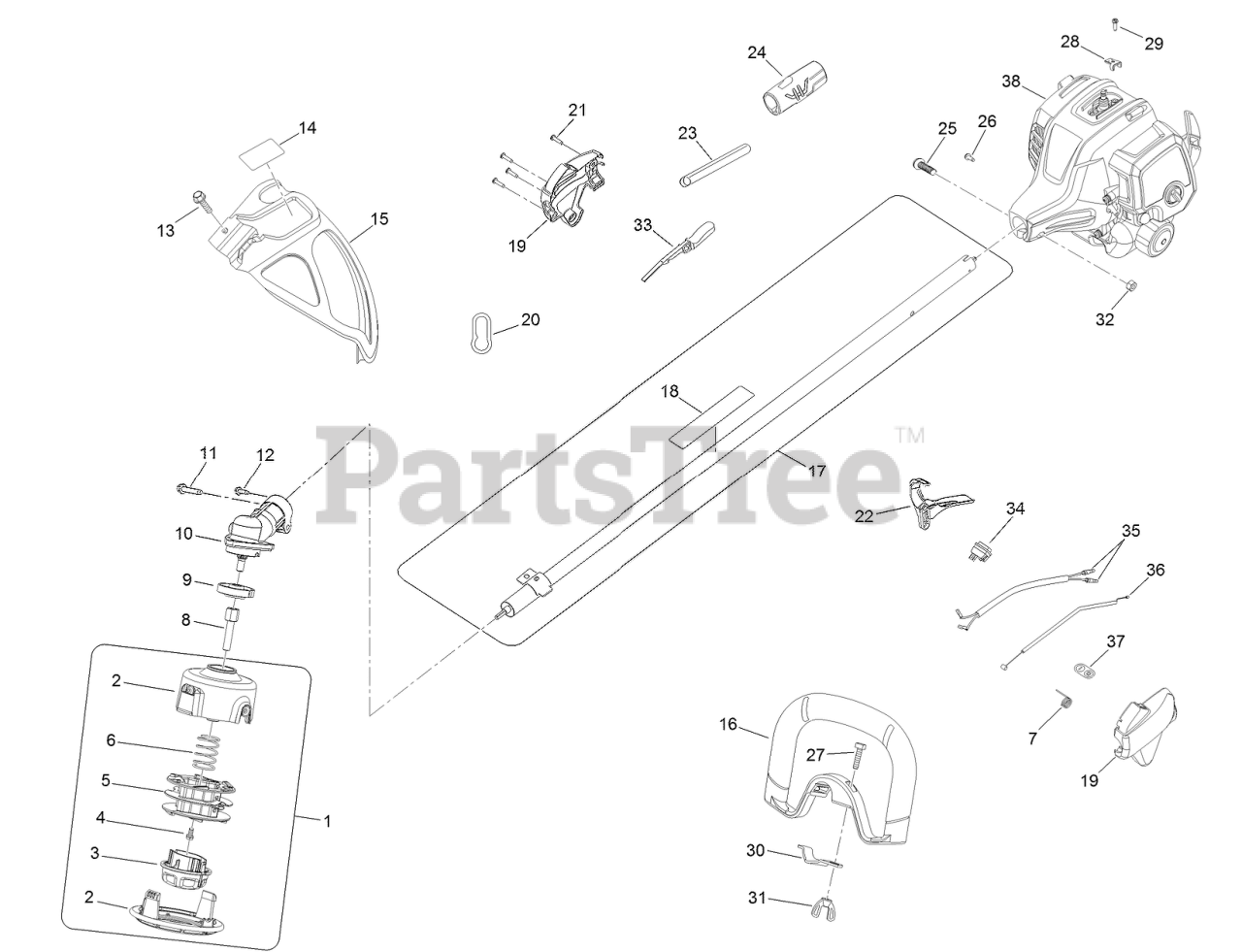

18in Straight Shaft Gas Trimmer Assembly Parts Diagram

  • Title

1

Toro 309034005

See Supercession: 308923014
(Superseded to 308923014)

$91.99

$

In Stock, only 2 left!

0

2

Toro 308827003

See Supercession: 308827002
(Superseded to 308827002)

$27.99

$

Usually ships in 3-6 days

0

3

Toro 518803003

KNOB-BUMP

$

$

Not available

4

Toro 660649001

BOLT

$1.99

$

In Stock, only 1 left!

0

5

Toro 308924001

SPOOL ASM

$9.49

$

Usually ships in 3-6 days

0

6

Toro 678749001

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 20+

0

7

Toro 690694002

SPRING-TRIGGER

$1.99

$

In Stock, Qty 5

0

8

Toro 678019004

ADAPTOR-HEAD SHAFT, TRIMMER

$4.99

$

In Stock, only 1 left!

0

9

Toro 678011001

See Supercession: 099078001005
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-6 days

0

10

Toro 308210015

HEAD-GEAR

$62.99

$

Usually ships in 3-6 days

0

11

Toro 660642001

SCREW

$2.99

$

In Stock, only 1 left!

0

12

Toro 660641001

SCREW

$2.99

$

Usually ships in 3-6 days

0

13

Toro 660738002

SCREW-HWH
(Superseded to 983379078)

$

$

Not available

14

Toro 940865002

DECAL-GRASS DEFLECTOR

$

$

Currently unavailable

15

Toro 308473004

GRASS DEFLECTOR ASM

$59.99

$

Usually ships in 3-6 days

0

16

Toro 526760001

HANDLE-SHAFT, UPPER

$19.99

$

Usually ships in 3-6 days

0

17

Toro 308470070

UPPER BOOM ASM

$79.99

$

Usually ships in 3-6 days

0

18

Toro 940657168

DECAL-WARNING

$

$

Currently unavailable

19

Toro 308869003

CONTROL HANDLE ASM

$6.49

$

In Stock, only 1 left!

0

20

Toro 638431001

CLIP-STRAP, SHOULDER

$2.99

$

Usually ships in 3-6 days

0

21

Toro 660563002

SCREW

$2.99

$

Usually ships in 3-6 days

0

22

Toro 518696017

TRIGGER

$

$

Not available

23

Toro 518210004

TUBE-CORRUGATED

$2.99

$

In Stock, only 3 left!

0

24

Toro 570234016

GRIP-SHAFT, UPPER

$4.99

$

Usually ships in 3-6 days

0

25

Toro T660697001

SCREW

$2.49

$

Usually ships in 3-6 days

0

26

Toro 660925011

SCREW

$2.99

$

In Stock, only 1 left!

0

27

Toro 660857001

SCREW

$3.99

$

In Stock, only 1 left!

0

28

Toro 638133001

CLAMP-CABLE, THROTTLE

$2.99

$

Usually ships in 3-6 days

0

29

Toro 660734001

SCREW

$2.99

$

Usually ships in 3-6 days

0

30

Toro 639167001

CLAMP-HANDLE, UPPER SHAFT

$2.99

$

In Stock, only 1 left!

0

31

Toro 518949001

NUT-WING

$2.99

$

In Stock, only 1 left!

0

32

Toro 678029002

NUT-HEX

$2.99

$

Usually ships in 3-6 days

0

33

Toro 518695017

LOCK-TRIGGER

$3.49

$

In Stock, only 1 left!

0

34

Toro 760961005

SWITCH-ON/OFF

$3.99

$

Usually ships in 3-6 days

0

35

Toro 308863029

LEAD

$13.99

$

Usually ships in 3-6 days

0

36

Toro 308225011

CABLE-THROTTLE

$2.99

$

In Stock, only 3 left!

0

37

Toro 940864003

LABEL-ON/STOP

$3.49

$

Usually ships in 3-6 days

0

38

Power Head ASM not serviced separately, for replacement parts see Power Head Components Assembly

Note: Not serviced separately

$

$

Not available
