51998 (090309043) - Toro 18" Straight-Shaft String Trimmer, Revision 01 (SN: 319000001 - 319999999) (2020-01) FIGURE A Parts Diagram

18" Straight-Shaft String Trimmer, Revision 01

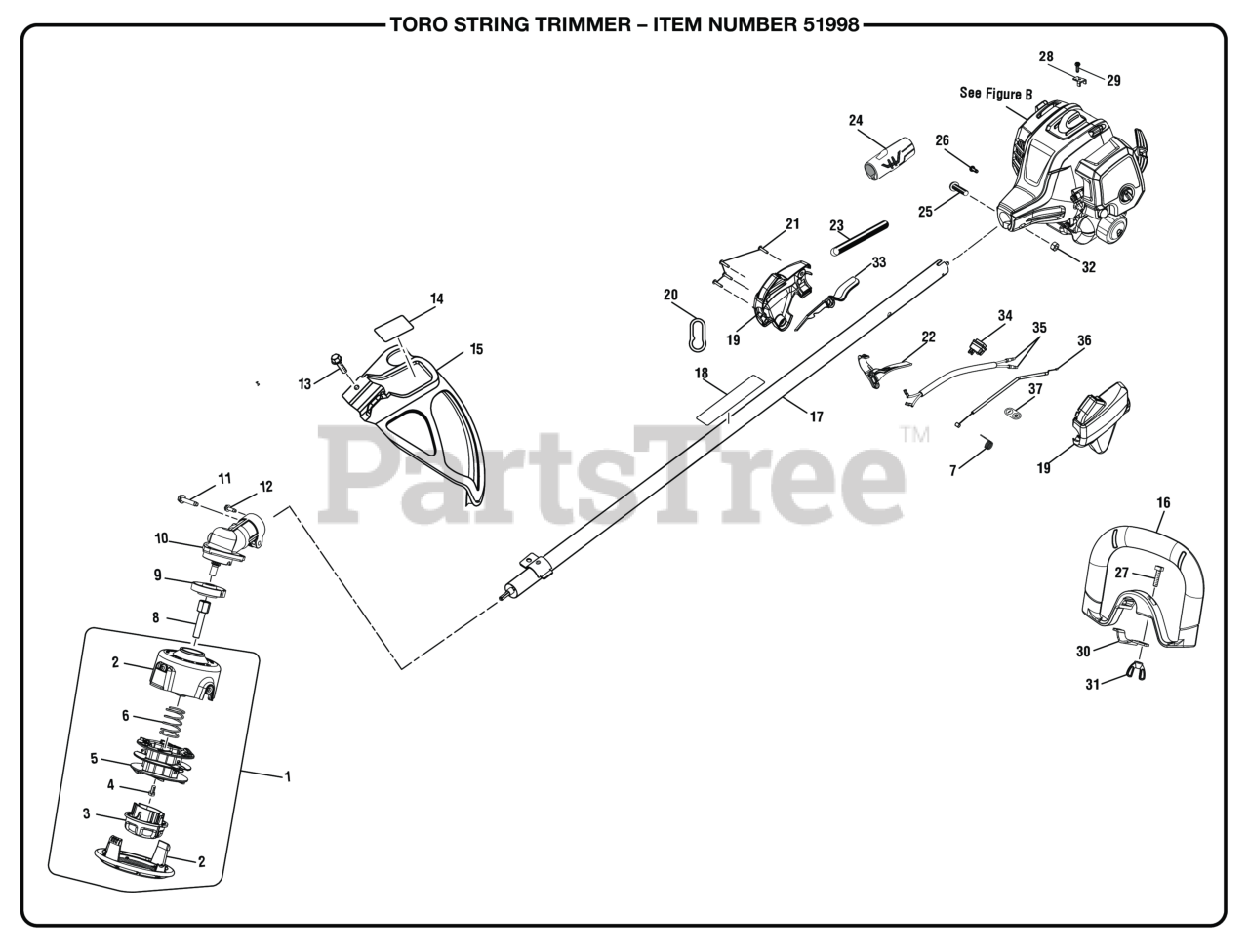

FIGURE A Parts Diagram

  • Title

1

Homelite 309034005

Trimmer Head Assembly (.095)

$

$

Currently unavailable

2

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

3

Homelite 518803003

Bump Knob

$

$

Not available

4

Homelite 660649001

Screw (5/16 x 1/2 in., Left Hand)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 308924001

Spool Assembly

$

$

Not available

6

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

7

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, only 4 left!

0

8

Homelite 678019004

Trimmer Head Shaft Adaptor

$4.99

$

In Stock, only 1 left!

0

9

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 308210015

Gear Head Assembly

$62.99

$

Usually ships in 3-7 days

0

11

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

12

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

14

Homelite 940865002

Grass Deflector Label

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

$11.99

$

In Stock, only 1 left!

0

16

Homelite 526760001

Front Handle w/Grip

$17.99

$

In Stock, only 1 left!

0

17

Homelite 308470070

Upper Boom Assembly

$35.99

$

Usually ships in 3-7 days

0

18

Homelite 940657168

Icon Warning Label

$

$

Not available

19

Homelite 308869003

Control Handle Assembly

$9.99

$

Usually ships in 3-7 days

0

20

Homelite 638431001

Shoulder Strap Hook

$1.99

$

In Stock, only 2 left!

0

21

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

22

Homelite 518696017

Trigger

$

$

Not available

23

Homelite 518210004

Corrugated Tube (225 mm)
(Superseded to 983632003)

$

$

Not available

24

Homelite 570234016

Rear Handle Grip

$3.99

$

In Stock, only 4 left!

0

25

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

28

Homelite 638133001

THROTTLE CABLE CLAMP
(Superseded to 985255001)

$

$

Not available

29

Homelite 660734001

Screw (M4 x 16 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 3 left!

0

30

Homelite 639167001

Front Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

32

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

33

Homelite 518695017

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 760961005

On/Stop Switch

$5.49

$

Usually ships in 3-7 days

0

35

Homelite 308863029

Lead Assembly

$5.49

$

Usually ships in 3-7 days

0

36

Homelite 308225011

Throttle Cable

$2.99

$

In Stock, only 3 left!

0

37

Homelite 940864003

On/Stop Label

$

$

Not available

Homelite 000998216

Spark Arrestor Kit (Inc. Key Nos. 3-4 and 6)
(Superseded to 986179001)

Note: Not Shown

$

$

Not available

Homelite 120900107

High Altitude Kit (Walbro)

Note: Not Shown

$15.99

$

Usually ships in 3-7 days

0

Homelite 991000150

Operator's Manual (960429013)

Note: Not Shown

$

$

Not available
