51998 (090309031) - Toro 18" Straight-Shaft String Trimmer, Revision 01 (SN: 318000001 - 318999999) (2018-04) Figure A Parts Diagram

18" Straight-Shaft String Trimmer, Revision 01

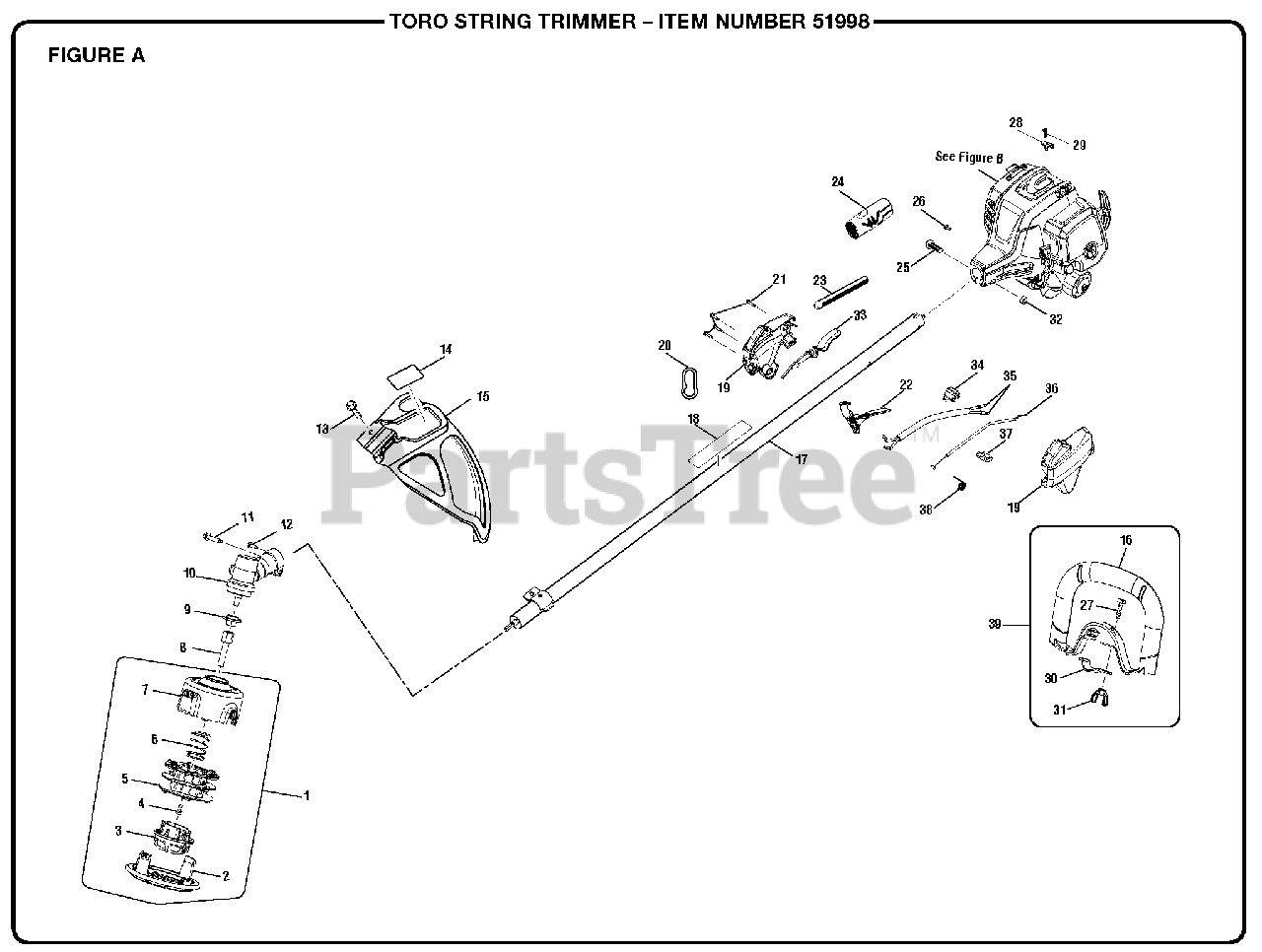

Figure A Parts Diagram

  • Title

1

Homelite 308923015

Trimmer Head Assembly
(Superseded to 308923014)

Note: (Inc. Key Nos. 2-7)

$91.99

$

In Stock, only 2 left!

0

2

Homelite 518804003

Lower Stringhead Housing

$4.99

$

In Stock, only 2 left!

0

3

Homelite 518803003

Bump Knob

$

$

Not available

4

Homelite 660649001

Bolt (5/16-18 x 1/2 in., L.H.)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 308924001

Spool Assembly

$

$

Not available

6

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

7

Homelite 518800005

Main Stringhead Housing
(Superseded to 308923015)

$91.99

$

In Stock, only 2 left!

0

8

Homelite 678019004

Trimmer Head Shaft Adaptor

$4.99

$

In Stock, only 2 left!

0

9

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 308210001

Gear Case Assembly
(Superseded to 308210008)

$

$

Not available

11

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

12

Homelite 660641001

Screw (10-24 x 5/8 in., Hex Washer Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660738002

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd.)
(Superseded to 983379078)

$

$

Not available

14

Homelite 940627020

Grass Deflector Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

Note: (Inc. Key No. 13)

$11.99

$

In Stock, only 1 left!

0

16

Homelite 526760001

Front Handle w/Grip

$17.99

$

In Stock, only 1 left!

0

17

Homelite 308470070

Upper Boom Assembly

Note: (Inc. Key No. 18)

$35.99

$

Usually ships in 3-7 days

0

18

Homelite 940657168

Warning Label

$

$

Not available

19

Homelite 308869003

Control Handle Assembly

Note: (Inc. Key No. 21 & 37)

$9.99

$

Usually ships in 3-7 days

0

20

Homelite 638431001

Shoulder Strap Clip

$1.99

$

In Stock, only 2 left!

0

21

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 8

0

22

Homelite 518696017

Trigger

$

$

Not available

23

Homelite 518210004

Corrugated Tube (225 mm)
(Superseded to 983632003)

$

$

Not available

24

Homelite 570234016

Rear Handle Grip

$3.99

$

In Stock, only 4 left!

0

25

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 660857001

Screw (1/4-20 x 1 in., Sq. Hd.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

28

Homelite 638133001

Throttle Cable Clamp
(Superseded to 985255001)

$

$

Not available

29

Homelite 660734001

Screw (M4 x 16 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 3 left!

0

30

Homelite 639167001

Front Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

32

Homelite 678029002

Hex Nut (M6 x 1)

$1.99

$

In Stock, Qty 6

0

33

Homelite 518695017

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 760961005

On/Stop Switch

$5.49

$

Usually ships in 3-7 days

0

35

Homelite 308863029

Lead.

$5.49

$

Usually ships in 3-7 days

0

36

Homelite 308225011

Throttle Cable

$2.99

$

In Stock, only 3 left!

0

37

Homelite 940864003

On/Stop Label

$

$

Not available

38

Homelite 690694002

Trigger Spring.

$1.99

$

In Stock, only 4 left!

0

39

Homelite 308056009

Front Handle Assembly

Note: (Inc. Key Nos. 16, 27 & 30-31)

$22.99

$

In Stock, only 1 left!

0

Homelite 000998216

Spark Arrestor Kit
(Superseded to 986179001)

Note: Not Shown

$

$

Not available

Homelite 120900107

High Altitude Kit

$15.99

$

Usually ships in 3-7 days

0

Homelite 991000150

Operator's Manual (960429013)

$

$

Not available
