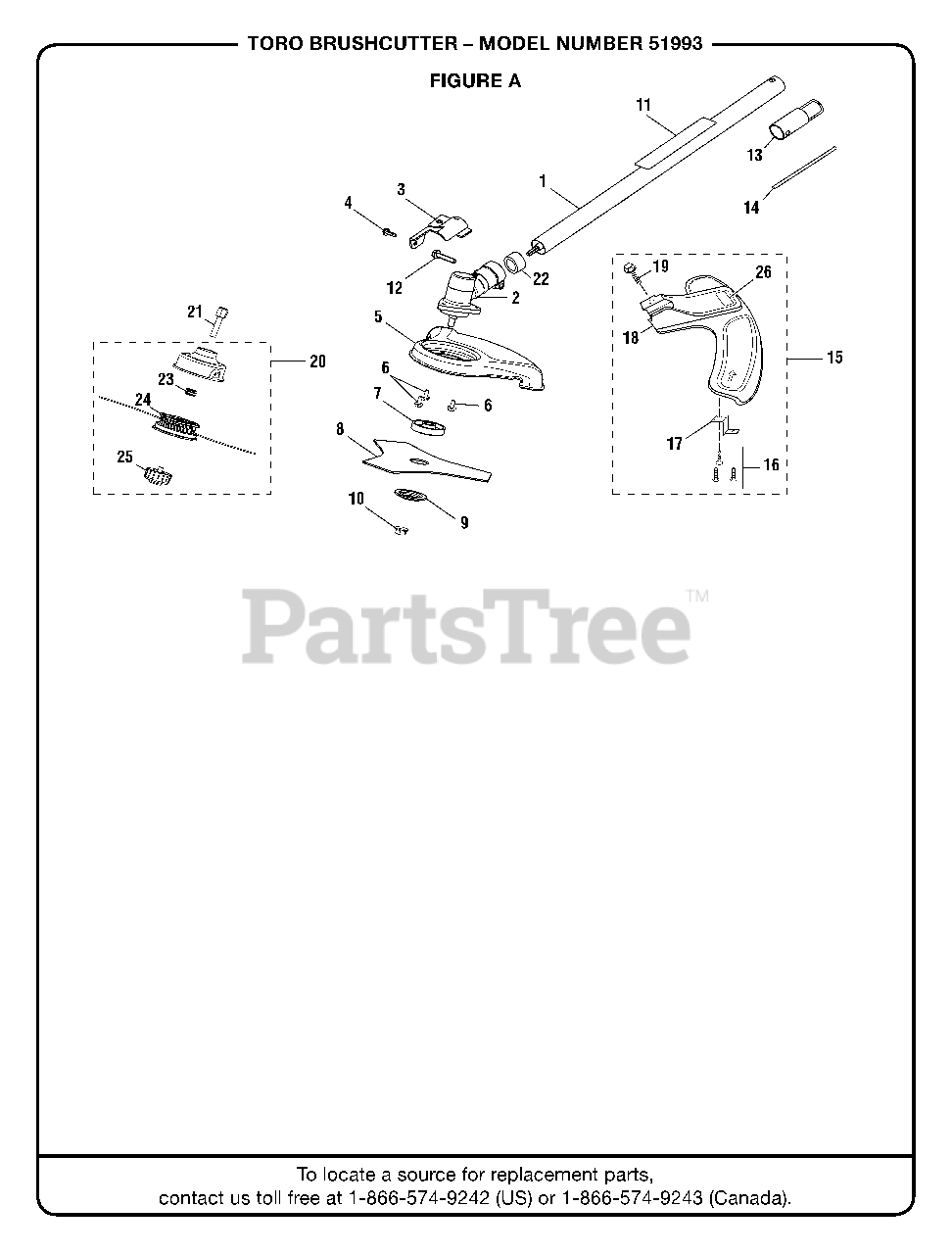

51993 - Toro 18" Straight-Shaft String Trimmer / 8" Brushcutter (SN: 260000001 - 260999999) (2006) Lower Boom / Spool Assembly Parts Diagram

18" Straight-Shaft String Trimmer / 8" Brushcutter

Lower Boom / Spool Assembly Parts Diagram

  • Title
1

Homelite 000998233

STRAIGHT SHAFT ASSEMBLY

Note: (INC. KEY NO. 11)

$

$

Not available

2

Homelite 308053001

GEAR CASE ASSEMBLY
(Superseded to 308210008)

$

$

Not available

3

Homelite 638125001

GRASS DEFLECTOR CLAMP
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

4

Homelite 660736001

SCREW (#10-24 X 5/8 in. HEX WASHER HD.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

5

Homelite 638120001

BLADE GUARD

$

$

Not available

6

Homelite 660737001

SCREW (#10-24 X 1/2 in. SLOTTED HEX HD.)
(Superseded to 88049)

$

$

Not available

7

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

8

Homelite 638006004

BLADE (TRI-ARC(TM))

$21.99

$

In Stock, only 1 left!

0

9

Homelite 638017001

CUPPED WASHER
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

10

Homelite 678018001

BLADE NUT, LEFT-HANDED THREADS
(Superseded to 04277)

$

$

Not available

11

Homelite 940657004

WARNING LABEL
(Superseded to 984102001)

$

$

Not available

12

Homelite 660642001

SCREW (1/4-20 X 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

13

Homelite 518019001

HANGER CAP
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

14

Homelite 678020001

HEAD LOCKING TOOL
(Superseded to 099078001040)

$2.49

$

In Stock, only 4 left!

0

15

Homelite 308467001

GRASS DEFLECTOR ASSEMBLY
(Superseded to 308473004)

Note: (INC. KEY NOS. 16-19, AND 26)

$11.99

$

In Stock, only 1 left!

0

$1.49

$

In Stock, only 3 left!

0

17

Homelite 638020002

LINE CUTTING BLADE
(Superseded to PS04379)

$

$

Not available

18

Homelite 518126001

GRASS DEFLECTOR
(Superseded to 984099001)

$

$

Not available

19

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

20

Homelite 000998265

TRIMMER HEAD ASSEMBLY (.095)

Note: (INC. KEY NOS. 23-25)

$103.99

$

In Stock, only 1 left!

0

21

Homelite 678019002

TRIMMER HEAD SHAFT ADAPTOR

$

$

Not available

22

$1.99

$

In Stock, only 3 left!

0

23

Homelite 678022001

COMPRESSION SPRING
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

24

Homelite 308044003

SPOOL WITH LINE (.095)

$

$

Not available

25

Homelite 308042003

RETAINING CAP, LEFT-HANDED THREAD

$7.49

$

In Stock, Qty 5

0

26

Homelite 940627020

GRASS DEFLECTOR LABEL

$1.49

$

Usually ships in 3-7 days

0
