51990 - Toro Brush Cutter (SN: 250000001 - 999999999) Upper Boom / Handle Assembly Parts Diagram

Brush Cutter

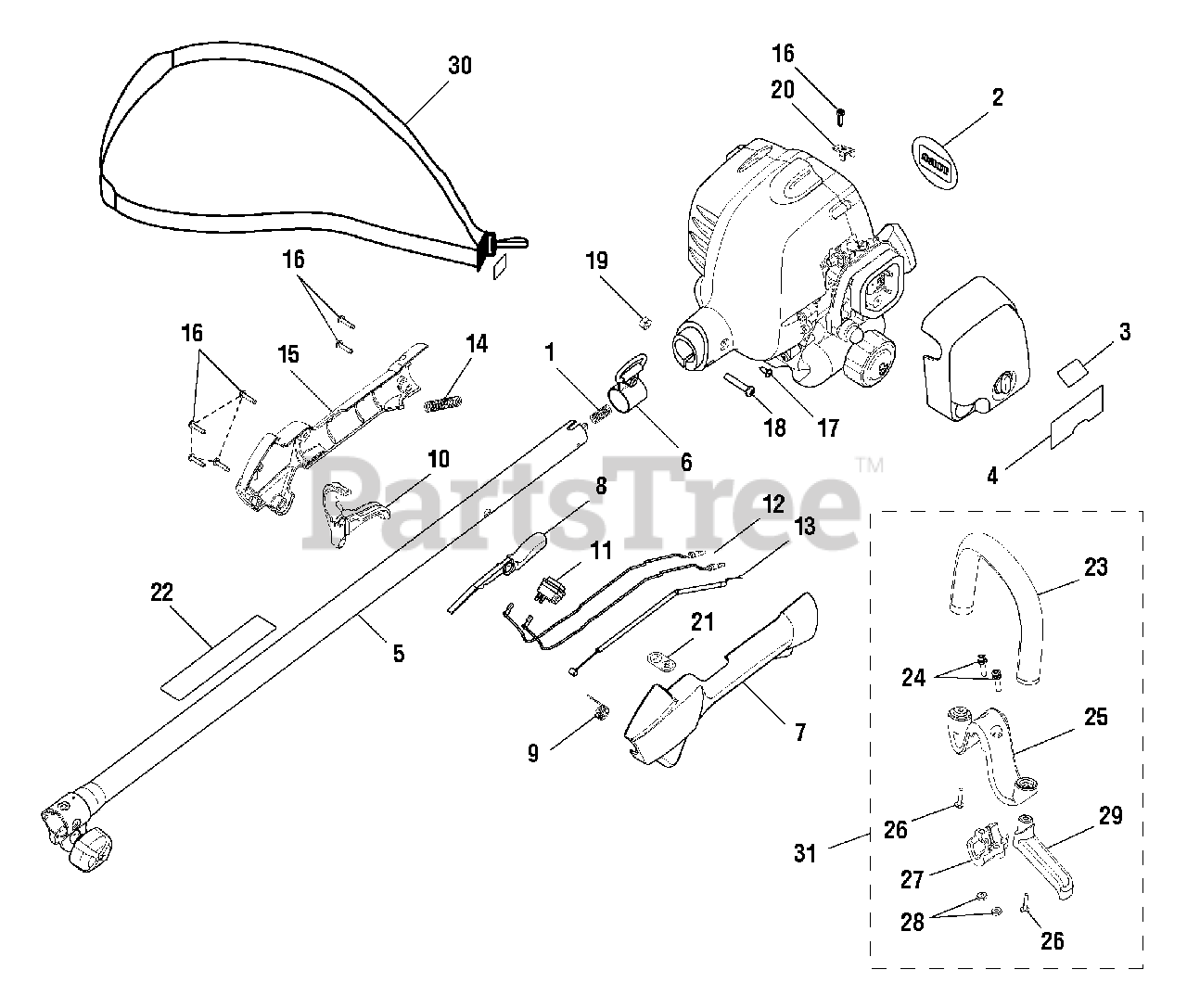

Upper Boom / Handle Assembly Parts Diagram

  • Title
1

Homelite 984106001

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 983646001

LOGO PLATE

$

$

Not available

3

Homelite 983647001

UPPER START LABEL

$

$

Not available

4

Homelite 983648001

LOWER START LABEL

$

$

Not available

5

Homelite 985571001

UPPER SHAFT ASSEMBLY
(Superseded to 000998235)

$

$

Not available

6

Homelite 07255

HANGER BRACKET

$

$

Not available

7

Homelite 983621001

REAR HANDLE SUPPORT

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 983623001

LOCK-OFF BUTTON

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 983624001

TRIGGER SPRING
(Superseded to 690694002)

$1.99

$

In Stock, only 4 left!

0

10

$

$

Not available

11

Homelite 984236002

SWITCH WITH DUST SHIELD

$

$

Not available

$

$

Not available

13

Homelite 983635001

CABLE, THROTTLE
(Superseded to 308225001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 983632003

CORRUGATED TUBE

$

$

Not available

15

Homelite 983622001

REAR HANDLE COVER

$4.49

$

Usually ships in 3-7 days

0

16

Homelite 6656301

SCREW (M4 X 16 mm)
(Superseded to 983638009)

$1.99

$

In Stock, only 3 left!

0

17

Homelite 82541

SCREW (#10-14 X 1/2 in.TRI-LOBULAR)

$1.99

$

In Stock, only 3 left!

0

18

Homelite 983799023

SCREW (M6 X 1-30 mm)
(Superseded to T660697001)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 983619015

HEX NUT
(Superseded to 678029002)

$1.99

$

In Stock, Qty 6

0

20

Homelite 985255001

THROTTLE CABLE CLAMP

$

$

Not available

21

Homelite 984240001

ON/OFF LABEL

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 984102001

WARNING LABEL

$

$

Not available

23

Homelite 984439001

ASSIST HANDLE W/GRIP

$17.99

$

Usually ships in 3-7 days

0

24

Homelite PS04159

SCREW (#12-24 X 1 in. SEMS)

$2.49

$

In Stock, only 3 left!

0

25

Homelite PS04070

M CLAMP
(Superseded to 518038001)

$3.99

$

Usually ships in 3-7 days

0

26

Homelite 82620

SLOTTED TORX SCREW

$1.99

$

In Stock, Qty 6

0

27

$4.99

$

In Stock, only 2 left!

0

28

Homelite 81068

HEX NUT (12-24)

$

$

Not available

29

Homelite PS04071

BARRIER BAR

$

$

Not available

30

Homelite 983961001

HARNESS ASM. W/LABEL

$

$

Not available

31

Homelite 983798002

ASSIST HANDLE W/BARRIER

$

$

Not available

Homelite 983000661

OPERATOR'S MANUAL

$

$

Not available

Homelite NLA

REPAIR SHEET

$

$

Currently unavailable
