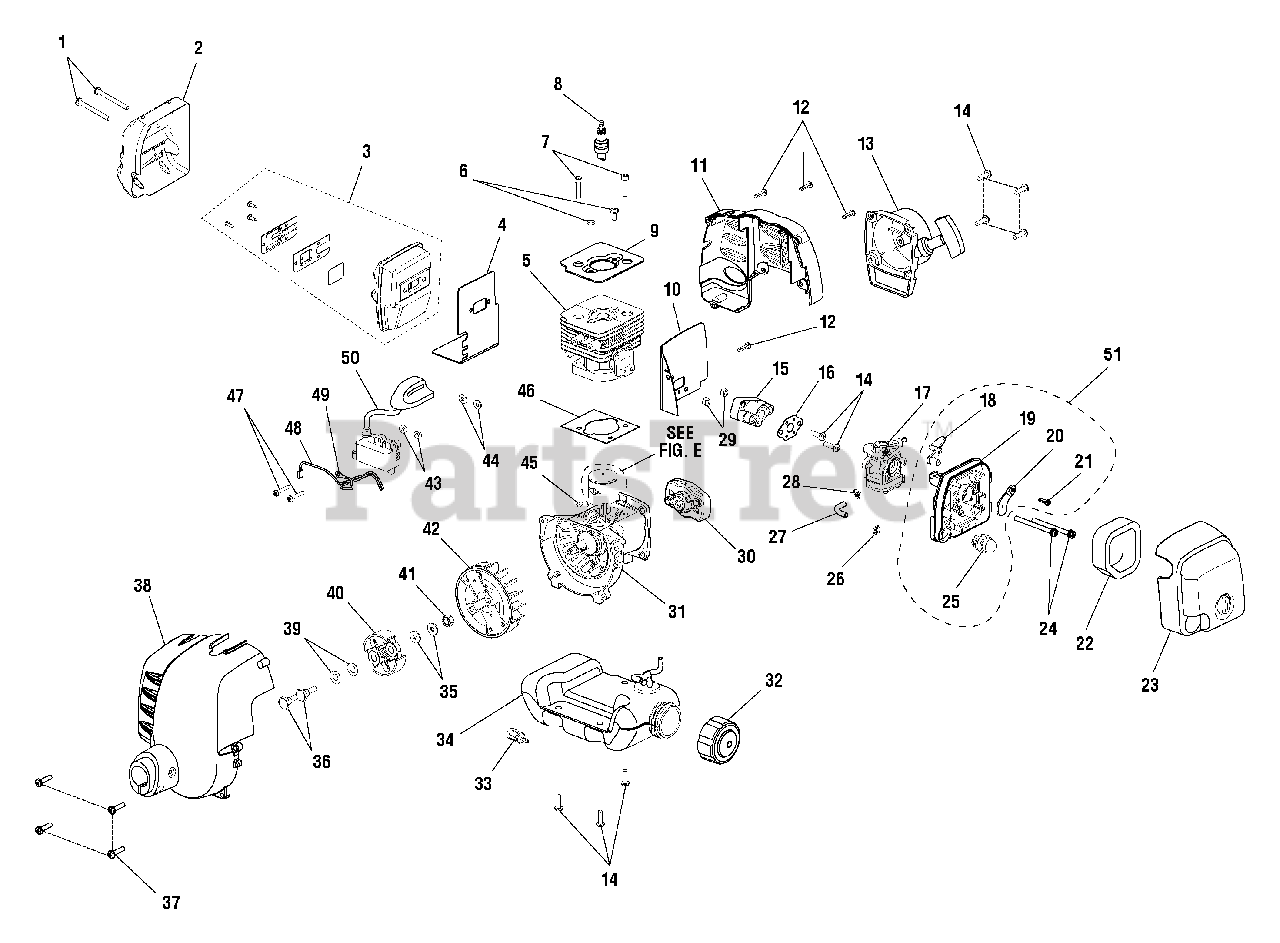

51990 - Toro Brush Cutter (SN: 250000001 - 999999999) Engine Parts Diagram

Brush Cutter

Engine Parts Diagram

  • Title
1

Homelite 983660057

SCREW (M5 X 50 mm TORX SLOTTED RECESSED PAN HD.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 985091001

HEAT SHIELD
(Superseded to 638027002)

$

$

Not available

3

Homelite 300748015

MUFFLER ASSEMBLY .
(Superseded to 300748021)

$93.99

$

Usually ships in 3-7 days

0

4

Homelite 6300206

MUFFLER GASKET

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 640570016

CYLINDER .
(Superseded to 640570026)

$35.99

$

In Stock, only 1 left!

0

6

Homelite 983660005

SCREW (M5 X 10 in. TORX RECESSED PAN HD.)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 6634201

SCREW (M5 X 22 mm SOCKET HD.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 8714402

SPARK PLUG
(Superseded to 98217S)

$4.99

$

In Stock, Qty 20+

0

9

Homelite 6300221

CYLINDER PLATE
(Superseded to 630002021)

$1.49

$

In Stock, only 3 left!

0

10

Homelite 9071102

INSULATOR GASKET

$

$

Not available

11

Homelite 5947001

ENGINE HOUSING, REAR .

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 6656301

SCREW (M4 X 16 mm TORX RECESSED PAN HD.)
(Superseded to 983638009)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 3075304

STARTER RECOIL ASSEMBLY
(Superseded to 308430016)

$

$

Not available

14

Homelite 6635101

SCREW (M5 X 16 mm Torx SLOTTED RECESSED PAN HD.)

$1.99

$

In Stock, only 3 left!

0

15

Homelite 5994701

HEAT DAM INSULATOR

$

$

Not available

16

Homelite 9071103

CARBURETOR GASKET

$

$

Not available

17

Homelite 985473001

CARBURETOR ASSEMBLY .

$145.99

$

Usually ships in 3-7 days

0

18

Homelite 5945801

CHOKE LEVER .
(Superseded to 590458001)

$

$

Not available

19

Homelite 5994501

CARBURETOR PLATE .

$

$

Not available

20

Homelite 5994601

CHOKE PLATE .

$1.99

$

In Stock, only 1 left!

0

21

Homelite 983645005

SCREW (M4 X 12 mm SLOTTED RECESSED PAN HD.)

$1.99

$

In Stock, only 4 left!

0

22

$

$

Not available

23

Homelite 3074701

COVER ASSEMBLY .

$2.99

$

In Stock, Qty 5

0

24

Homelite 6634601

SCREW (M5 X 60 mm, SLOTTED RECESSED PAN HD. MACHINE)
(Superseded to 660346001)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 3078001

PRIMER ASSEMBLY
(Superseded to 01183)

$

$

Not available

26

Homelite 6970001

HOSE CLIP

$1.99

$

In Stock, Qty 9

0

27

Homelite 5688002

FUEL LINE

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 6969901

HOSE CLIP

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 983619014

NUT (M5 x .8 mm)

$

$

Not available

30

Homelite 4300401

PULLEY ASSEMBLY
(Superseded to 308004001)

$17.99

$

Usually ships in 3-7 days

0

31

Homelite 300749003

CRANKCASE ASSEMBLY

$64.99

$

Usually ships in 3-7 days

0

32

Homelite A09116

FUEL CAP ASSEMBLY
(Superseded to 300758006)

$

$

Not available

33

Homelite PS03380

FUEL FILTER
(Superseded to 300759003)

$

$

Not available

34

Homelite 3075702

FUEL TANK ASSEMBLY
(Superseded to 308675063)

Note: (INCLUDES KEY NOS. 32 & 33)

$

$

Not available

35

$

$

Not available

36

Homelite 6635301

CLUTCH SCREW

$2.49

$

In Stock, only 3 left!

0

37

Homelite 6634401

SCREW (M5 X 20 mm TORX SLOTTED RECESSED PAN HD.)

$

$

Not available

38

Homelite 3075403

FRONT HOUSING ASSEMBLY

$

$

Not available

39

Homelite 6969601

CURVED WASHER

$1.99

$

In Stock, only 3 left!

0

40

Homelite 3075601

CLUTCH ASSEMBLY
(Superseded to 300756007)

$

$

Not available

41

Homelite 6968901

ROTOR NUT

$

$

Not available

42

$

$

Not available

43

Homelite 5946201

IGNITION COIL SPACER

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 982719005

WASHER (3/16 x 3/64) .

$1.49

$

In Stock, only 1 left!

0

45

Homelite 983784006

WOODRUFF KEY (10 mm X 3 mm) .

$

$

Not available

46

Homelite 9070901

GASKET .

$

$

Not available

47

Homelite 6634901

SCREW (M4 X 22 mm TORX SLOTTED RECESSED PAN HD.)

$

$

Not available

48

Homelite 2914301

LEAD ASSEMBLY, BLACK .

$3.49

$

Usually ships in 3-7 days

0

49

Homelite 2914302

LEAD ASSEMBLY, RED

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 2917802

COIL BOOT ASSEMBLY
(Superseded to 290178003)

Note: (INCLUDES KEY NOS. 48 & 49) .

$

$

Not available

51

Homelite 3074602

FILTER HOUSING ASSEMBLY

$

$

Not available
