51988 (090157006) - Toro Powervac Blower Vacuum, Revision 02 (SN: 318000001 - 318999999) (2020-04) Figure C Parts Diagram

Powervac Blower Vacuum, Revision 02

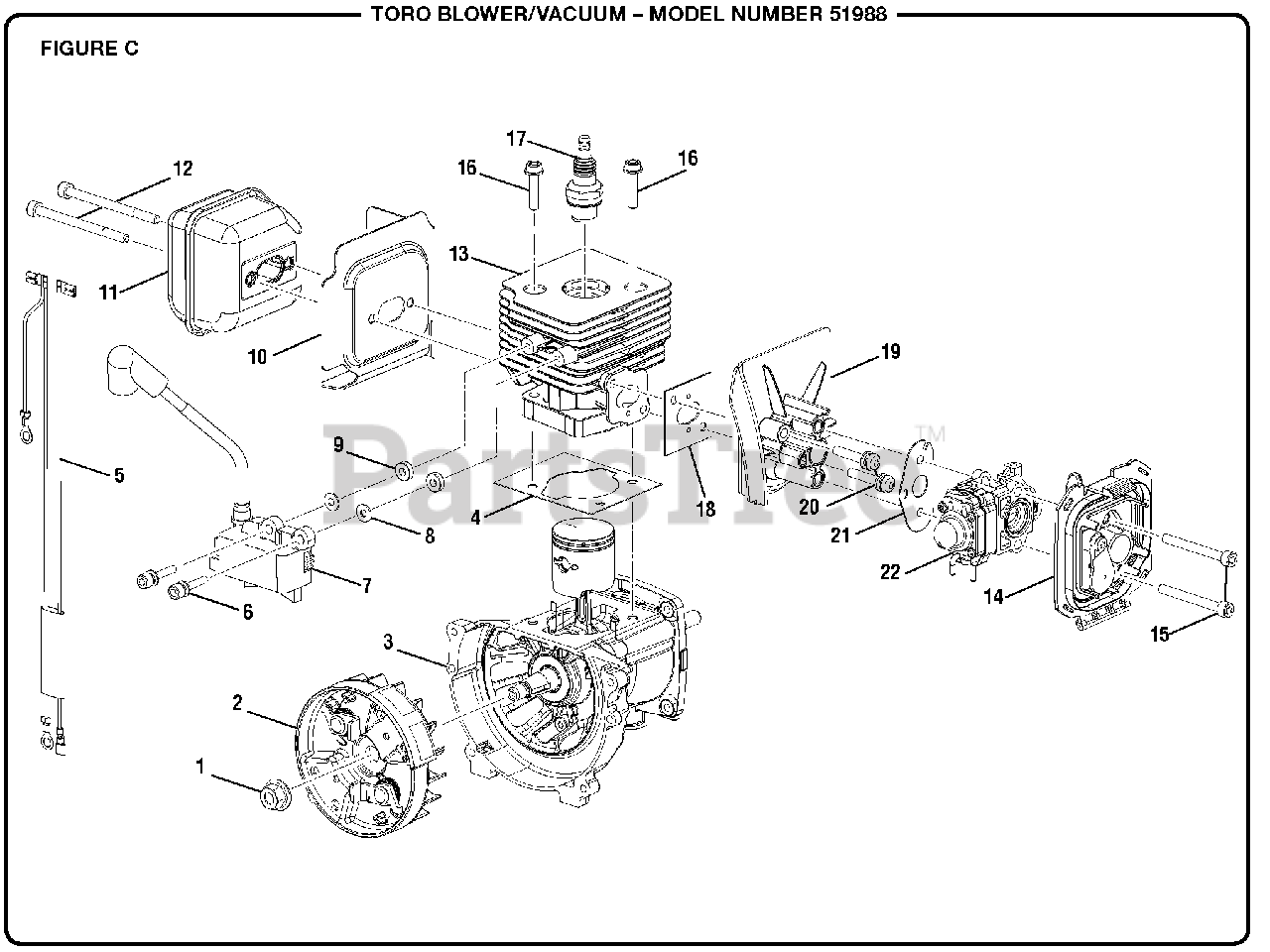

Figure C Parts Diagram

  • Title

1

Homelite 690689001

Nut (M8)
(Superseded to 6968901)

$

$

Not available

2

Homelite 307201002

Flywheel Assembly

$20.99

$

Usually ships in 3-7 days

0

3

Homelite 307366001

Crankcase and Piston Assembly

$70.99

$

Usually ships in 3-7 days

0

4

Homelite 900709007

Gasket

$1.99

$

In Stock, only 4 left!

0

5

Homelite 291388002

Wire Harness

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 660968004

Screw (M4 x 22 mm, Torx T20)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 290178029

Ignition Module

$51.99

$

Usually ships in 3-7 days

0

8

Homelite 690969001

Washer (4.2ID x 10OD x 1t)

$1.99

$

In Stock, Qty 5

0

9

Homelite 590462001

Spacer

$2.99

$

In Stock, only 2 left!

0

10

Homelite 639243002

Muffler Gasket

$4.99

$

In Stock, only 1 left!

0

11

Homelite 300748042

Muffler Assembly

$82.99

$

In Stock, only 1 left!

0

12

Homelite 662169001

Screw (M5 x 65 mm, Torx T25)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 642368002

Cylinder

$50.99

$

Usually ships in 3-7 days

0

14

Homelite 310997003

Air Box Cover Base Assembly

$1.99

$

In Stock, only 1 left!

0

15

Homelite 660347003

Screw (M5 x 45 mm, Torx T25)

$1.99

$

In Stock, Qty 5

0

16

Homelite 660342001

Screw (M5 x 22 mm)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 870174001

Spark Plug (RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

18

Homelite 562927008

Cylinder Gasket

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 528049001

Heat Sink

$7.99

$

Usually ships in 3-7 days

0

20

Homelite 662210002

Screw (M5 x 30 mm, Torx T25)

$

$

Currently unavailable

21

Homelite 900711015

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 308480002

Carburetor Assembly

$

$

Not available

Homelite 120900226

High Altitude Kit

Note: NOT SHOWN

$21.99

$

Usually ships in 3-7 days

0
