51988 (090157006) - Toro Powervac Blower Vacuum, Revision 01 (SN: 318000001 - 318999999) (2018-04) Figure B Parts Diagram

Powervac Blower Vacuum, Revision 01

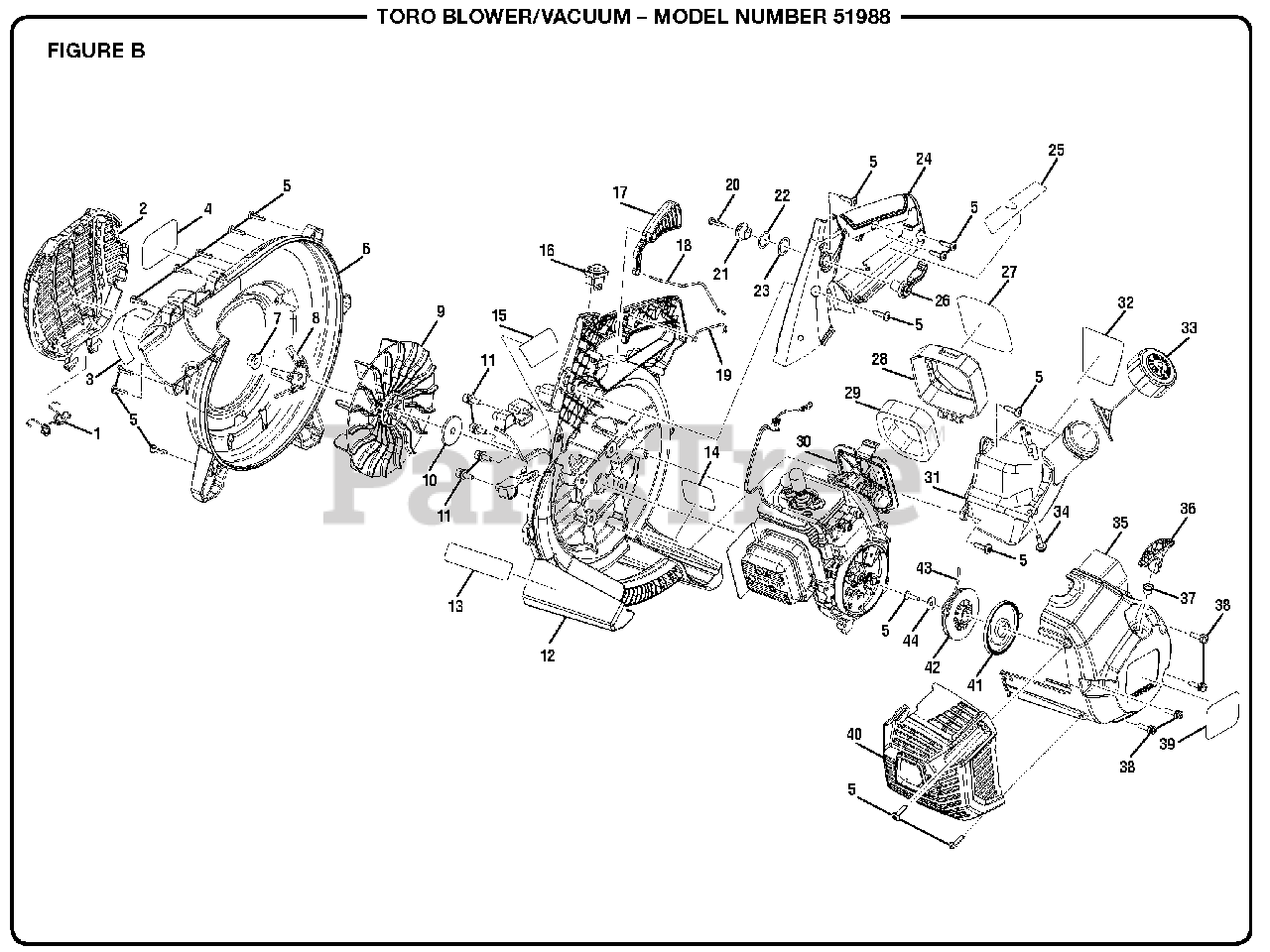

Figure B Parts Diagram

  • Title

1

Homelite 694143002

Vacuum Door Hinge

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 527987001

Vacuum Door

$

$

Not available

3

Homelite 941727006

Warning Icon Label

$

$

Not available

4

Homelite 940907028

Logo Label (Right)

$

$

Not available

5

Homelite 660629005

Screw (10-14 x 3/4 in.)

$1.99

$

In Stock, Qty 10

0

6

Homelite 203383001

Outer Volute Assembly

Note: (Incl. Key Nos. 3-4)

$

$

Not available

7

Homelite 678018001

Flanged Lock Nut (M8 x 1.25, LH)
(Superseded to 04277)

$

$

Not available

8

Homelite 678114004

Mulching Blade

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 527982001

Blower Fan

$4.99

$

In Stock, only 1 left!

0

10

Homelite 638125008

Washer (ID8 x OD34 x 3t)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 660351001

Screw (M5 x 16mm, Torx Pan Hd.)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

12

Homelite 203657001

Engine Shroud Assembly

Note: (Incl. Key Nos. 13-15)

$

$

Not available

13

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 940907027

Logo Label (Rear)

$

$

Not available

15

Homelite 941727009

Tube Removal Label

$

$

Not available

16

Homelite 760961005

Switch

$5.49

$

Usually ships in 3-7 days

0

17

Homelite 527926001

Throttle Lever

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 308209004

Throttle Cable Assembly

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 290469001

Ground Wire Assembly

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 660629002

Screw (10-14 x 3/4 in., T25 Torx Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

21

Homelite 527986001

Throttle Trigger Activator

$

$

Not available

22

Homelite 632423001

Wavy Washer (21.7OD x 16.5ID)

$

$

Not available

23

Homelite 631049004

Washer (22.5OD x 16ID x 0.5t)

$

$

Not available

24

Homelite 203384001

Handle Cover Assembly

Note: (Incl. Key No. 25)

$

$

Not available

25

Homelite 941727005

Icon Warning Strip

$

$

Not available

26

Homelite 527985001

Cruise Control Lever

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 940908003

Starting Instructions Label

$

$

Not available

28

Homelite 203385001

Air Box Cover Assembly

Note: (Incl. Key. No. 27)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

30

Power Head Assembly

$

$

Not available

31

Homelite 203381001

Fuel Tank Assembly

Note: (Incl. Key Nos. 32-33)

$

$

Not available

32

Homelite 940991054

E85 Label

$

$

Not available

33

Homelite 310816015

Fuel Cap

$13.99

$

In Stock, only 1 left!

0

34

Homelite 662274001

Screw (M5 x 16 mm)

$

$

Not available

35

Homelite 310000001

Starter Housing Assembly

Note: (Incl. Key No. 39)

$

$

Not available

36

Homelite 525485008

Starter Grip

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 638088002

Eyelet

$1.99

$

In Stock, only 4 left!

0

38

Homelite 660344001

Screw (M5 x 20 mm, Torx Pan Hd.)
(Superseded to 6634401)

$

$

Not available

39

Homelite 940907029

Logo Label (Left)

$

$

Not available

40

Homelite 527925001

Muffler Cover

$6.49

$

In Stock, only 4 left!

0

41

Homelite 638033001

Spring Holder Assembly

$5.49

$

In Stock, only 4 left!

0

42

Homelite 527983001

Starter Pulley

$2.99

$

In Stock, only 2 left!

0

43

Homelite 900849012

Starter Rope

$1.99

$

In Stock, only 3 left!

0

44

Homelite 678587001

Washer (ID6.2 x OD18 x 1.5t)

$1.99

$

In Stock, only 2 left!

0
