51985 - Toro Powervac Blower Vacuum (SN: 312000001 - 999999999) Figure B Parts Diagram

Powervac Blower Vacuum

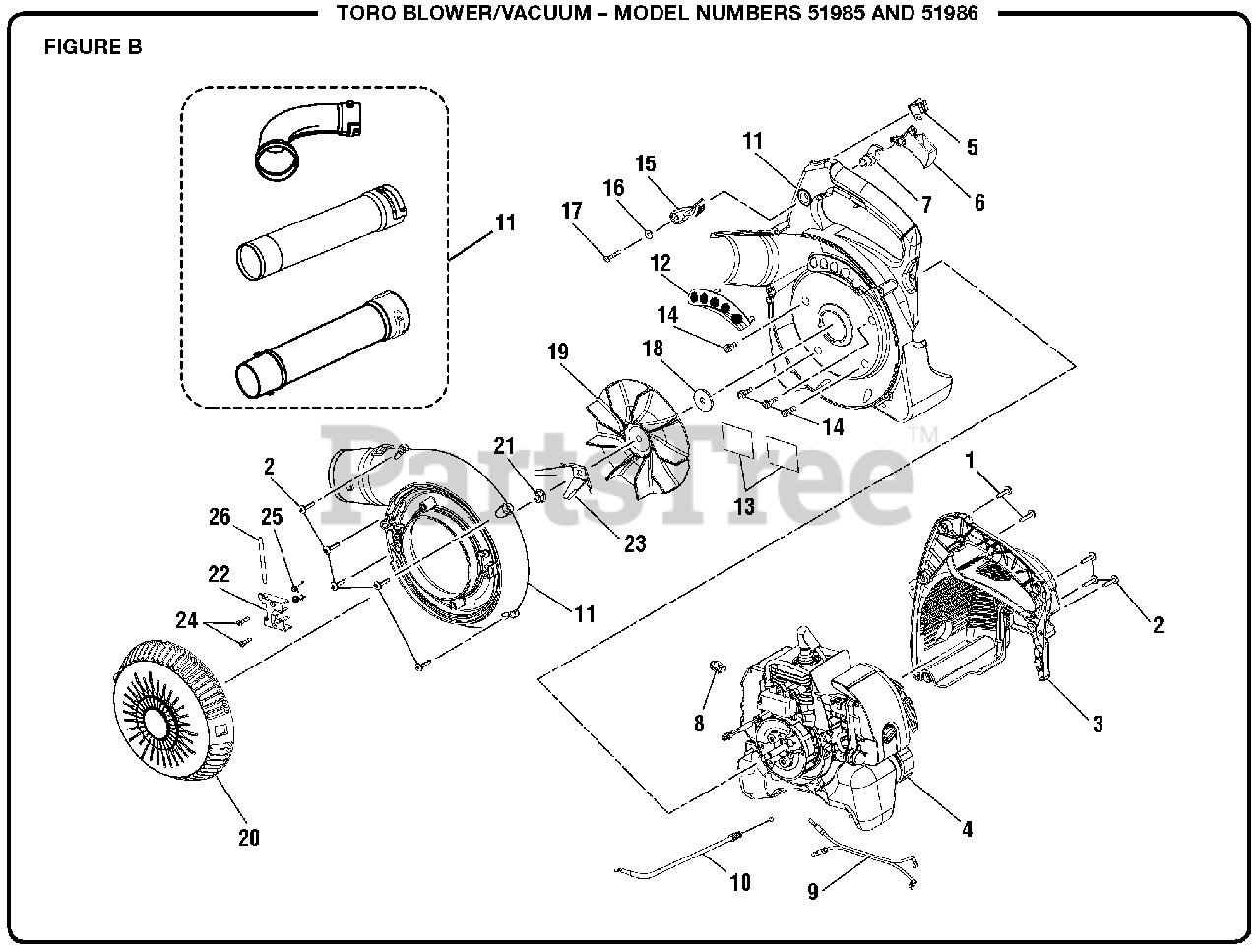

Figure B Parts Diagram

  • Title

1

Homelite 660674003

Screw

$

$

Not available

2

Homelite 660674001

Screw (10-14 x 7/8 in.)
(Superseded to 82537)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 518323022

Engine Shroud

$

$

Not available

4

Homelite 308107022

Engine

$

$

Not available

5

Homelite 760363005

Engine Switch

$

$

Not available

6

Homelite 518255002

Throttle Trigger

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 518150002

Throttle Lock (Cruise Control)

$

$

Currently unavailable

8

Homelite 570624001

Rubber Grommet

$

$

Not available

9

Homelite 290986001

Wire Harness

$

$

Not available

10

Homelite 308209003

Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 312004001

Housing and Tube Assembly Kit

$

$

Not available

12

Homelite 638179001

Mesh Screen

$

$

Not available

13

Homelite 900955001

Heat Shield Tape

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660344005

Screw (M5 x 20 mm)

$

$

Not available

15

Homelite 518160003

Cruise Control Lever

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678125001

Washer (Steel)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 660666001

Screw (8-14 x 1 in.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 678126005

Washer

$1.99

$

In Stock, only 4 left!

0

19

Homelite 518265002

Fan
(Superseded to 518265003)

$11.99

$

Usually ships in 3-7 days

0

20

Homelite 522811001

Vacuum Door

$5.99

$

Usually ships in 3-7 days

0

21

Homelite 678128002

Lock Nut (M8 x 1.25)

$1.99

$

In Stock, only 1 left!

0

22

Homelite 518632001

Vacuum Door Hinge

$

$

Not available

23

Homelite 678114001

Mulcher Blade

$

$

Not available

24

Homelite 660665001

Screw (8-14 x 5/8 in.)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 678117001

Hinge Spring

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 650026002

Pin

$

$

Not available
