51978 VNM (090309048) - Toro 18" Straight-Shaft String Trimmer, Revision 02 (SN: 320000001 - 320999999) (2021-11) FIGURE A Parts Diagram

18" Straight-Shaft String Trimmer, Revision 02

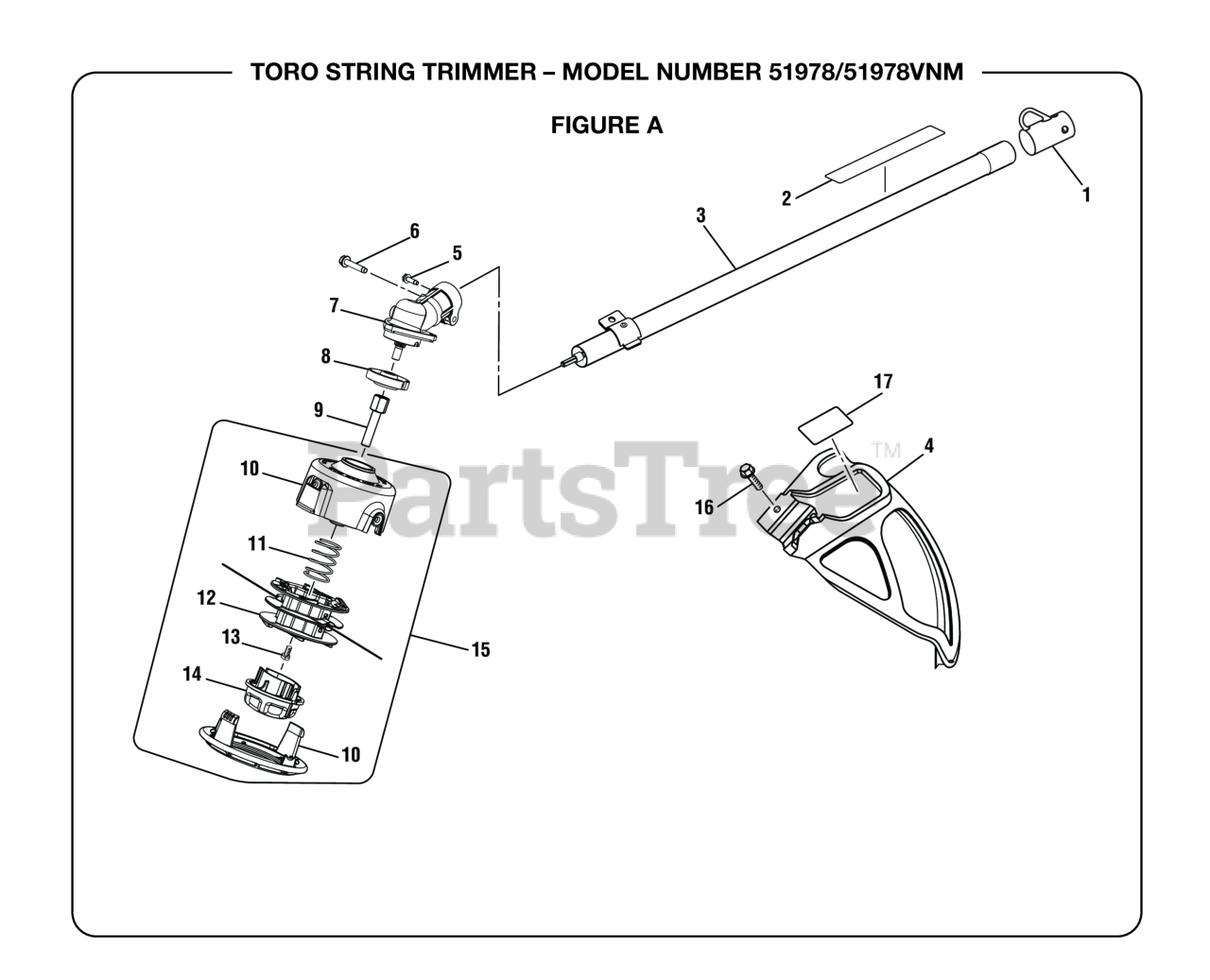

FIGURE A Parts Diagram

  • Title

1

Homelite 518019004

Hanger Cap

$1.99

$

In Stock, Qty 6

0

2

Homelite 940657165

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 308035059

Straight Shaft Assembly

Note: (Inc. Key Nos. 1-2)

$

$

Not available

4

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

$11.99

$

In Stock, only 1 left!

0

5

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

6

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

7

Homelite 308210015

Gear Head Assembly

$62.99

$

Usually ships in 3-7 days

0

8

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 678019004

Trimmer Head Shaft Adaptor

$4.99

$

In Stock, only 2 left!

0

10

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

12

Homelite 308924002

Spool w/ Line (.095)
(Superseded to 308924001)

$

$

Not available

13

Homelite 660649001

Screw (5/16 x 1/2 in., Left Hand)

$1.99

$

In Stock, only 1 left!

0

14

Homelite 518803003

Bump Knob

$

$

Not available

15

Homelite 309034005

Trimmer Head Assembly (.095)

Note: (Inc. Key Nos. 10-14)

$

$

Currently unavailable

16

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

17

Homelite 940865002

Grass Deflector Label

$1.99

$

Usually ships in 3-7 days

0
