51978 - Toro 18" Straight-Shaft String Trimmer (SN: 322000001 - 322999999) (2022) Trimmer Head, Shaft and Guard Assembly Parts Diagram

18" Straight-Shaft String Trimmer

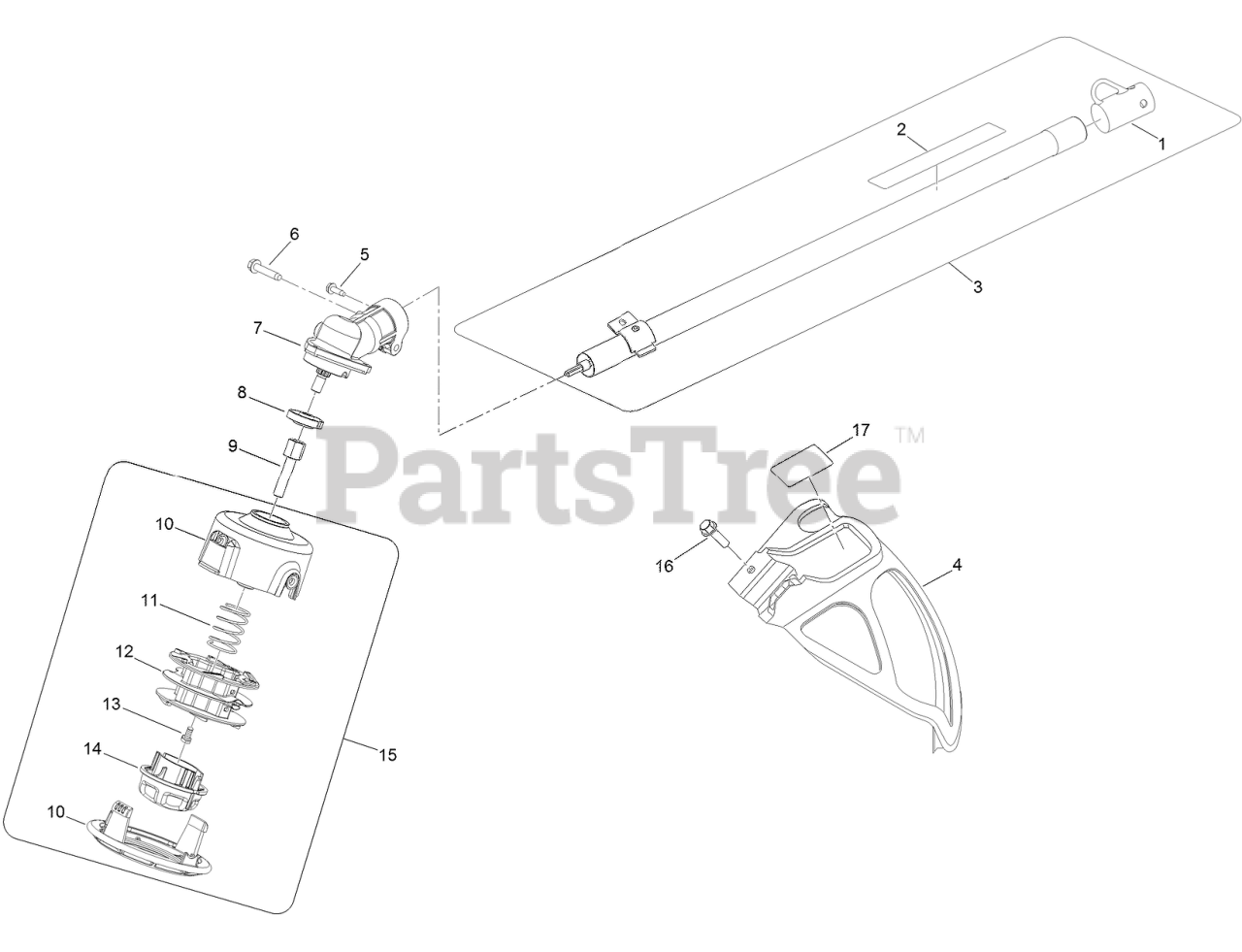

Trimmer Head, Shaft and Guard Assembly Parts Diagram

  • Title

1

Toro 519019004

HANGER CAP

$

$

Currently unavailable

2

Toro 940657165

DECAL-WARNING

$3.49

$

Usually ships in 3-6 days

0

3

Toro 308035059

SHAFT ASM

$

$

Not available

4

Toro 308473004

GRASS DEFLECTOR ASM

$59.99

$

Usually ships in 3-6 days

0

5

Toro 660736001

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

6

Toro 660642001

SCREW

$2.99

$

In Stock, only 1 left!

0

7

Toro 308210015

HEAD-GEAR

$62.99

$

Usually ships in 3-6 days

0

8

Toro 678011001

See Supercession: 099078001005
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-6 days

0

9

Toro 678019004

ADAPTOR-HEAD SHAFT, TRIMMER

$4.99

$

In Stock, only 2 left!

0

10

Toro 308827003

See Supercession: 308827002
(Superseded to 308827002)

$27.99

$

Usually ships in 3-6 days

0

11

Toro 678749001

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 20+

0

12

Toro 308924002

See Supercession: 308924001
(Superseded to 308924001)

$9.49

$

Usually ships in 3-6 days

0

13

Toro 660649001

BOLT

$1.99

$

In Stock, Qty 5

0

14

Toro 518803003

KNOB-BUMP

$

$

Not available

15

Toro 309034005

See Supercession: 308923014
(Superseded to 308923014)

$91.99

$

In Stock, Qty 16

0

16

Toro 660738002

SCREW-HWH
(Superseded to 983379078)

$

$

Not available

17

Toro 940865002

DECAL-GRASS DEFLECTOR

$

$

Currently unavailable
