51978 - Toro 18" Straight-Shaft String Trimmer (SN: 319000001 - 319999999) (2019) Upper Shaft, Handle and Power Head Assembly Parts Diagram

18" Straight-Shaft String Trimmer

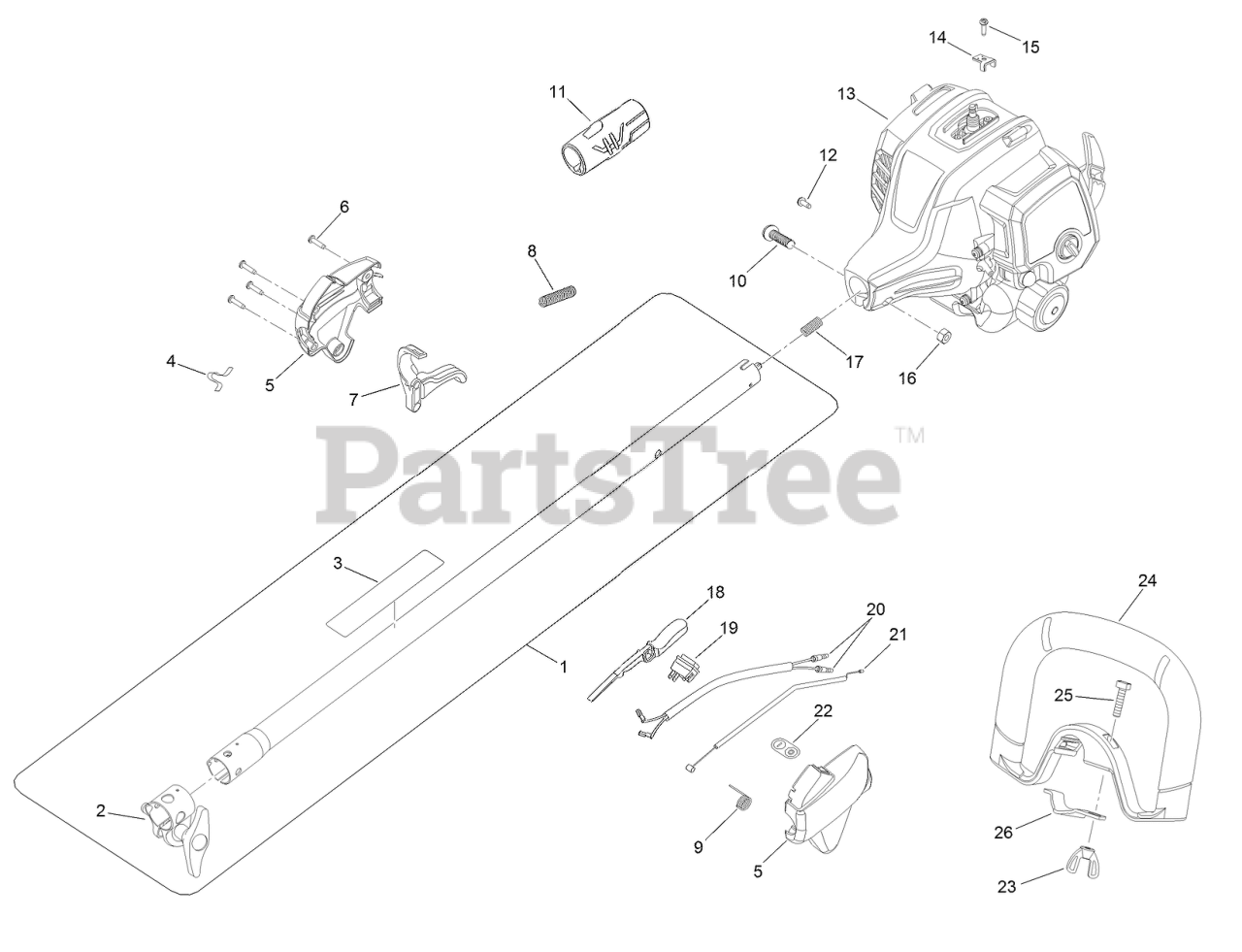

Upper Shaft, Handle and Power Head Assembly Parts Diagram

  • Title

1

Toro 308159025

UPPER SHAFT ASM

$51.99

$

Usually ships in 3-6 days

0

2

Toro 308045014

SHAFT CLAMP ASM

$6.49

$

Usually ships in 3-6 days

0

3

Toro 940657164

DECAL-WARNING

$

$

Currently unavailable

4

Toro 638431001

CLIP-STRAP, SHOULDER

$2.99

$

Usually ships in 3-6 days

0

5

Toro 308869003

CONTROL HANDLE ASM

$6.49

$

In Stock, only 1 left!

0

6

Toro 660563002

SCREW

$2.99

$

Usually ships in 3-6 days

0

7

Toro 518696017

TRIGGER

$

$

Not available

8

Toro 518210004

TUBE-CORRUGATED

$2.99

$

In Stock, only 3 left!

0

9

Toro 690694002

SPRING-TRIGGER

$1.99

$

In Stock, Qty 5

0

10

Toro T660697001

SCREW

$2.49

$

Usually ships in 3-6 days

0

11

Toro 570234016

GRIP-SHAFT, UPPER

$4.99

$

Usually ships in 3-6 days

0

12

Toro 660925011

SCREW

$2.99

$

In Stock, only 1 left!

0

13

Power Head ASM not serviced separately, for replacement parts see Power Head Components Assembly

Note: Not serviced separately

$

$

Not available

14

Toro 638133001

CLAMP-CABLE, THROTTLE

$2.99

$

Usually ships in 3-6 days

0

15

Toro 660734001

SCREW

$2.99

$

Usually ships in 3-6 days

0

16

Toro 678029002

NUT-HEX

$2.99

$

Usually ships in 3-6 days

0

17

Toro 690140011

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

18

Toro 518695017

LOCK-TRIGGER

$3.49

$

In Stock, only 1 left!

0

19

Toro 760961005

SWITCH-ON/OFF

$3.99

$

Usually ships in 3-6 days

0

20

Toro 308863029

LEAD

$13.99

$

Usually ships in 3-6 days

0

21

Toro 308225011

CABLE-THROTTLE

$2.99

$

In Stock, only 3 left!

0

22

Toro 940864003

LABEL-ON/STOP

$3.49

$

Usually ships in 3-6 days

0

23

Toro 518949001

NUT-WING

$2.99

$

In Stock, only 1 left!

0

24

Toro 526760001

HANDLE-SHAFT, UPPER

$19.99

$

Usually ships in 3-6 days

0

25

Toro 660857001

SCREW

$3.99

$

In Stock, only 1 left!

0

26

Toro 639167001

CLAMP-HANDLE, UPPER SHAFT

$2.99

$

In Stock, only 1 left!

0
