51978 - Toro 18" Straight-Shaft String Trimmer (SN: 319000001 - 319999999) (2019) Power Head Components Assembly Parts Diagram

18" Straight-Shaft String Trimmer

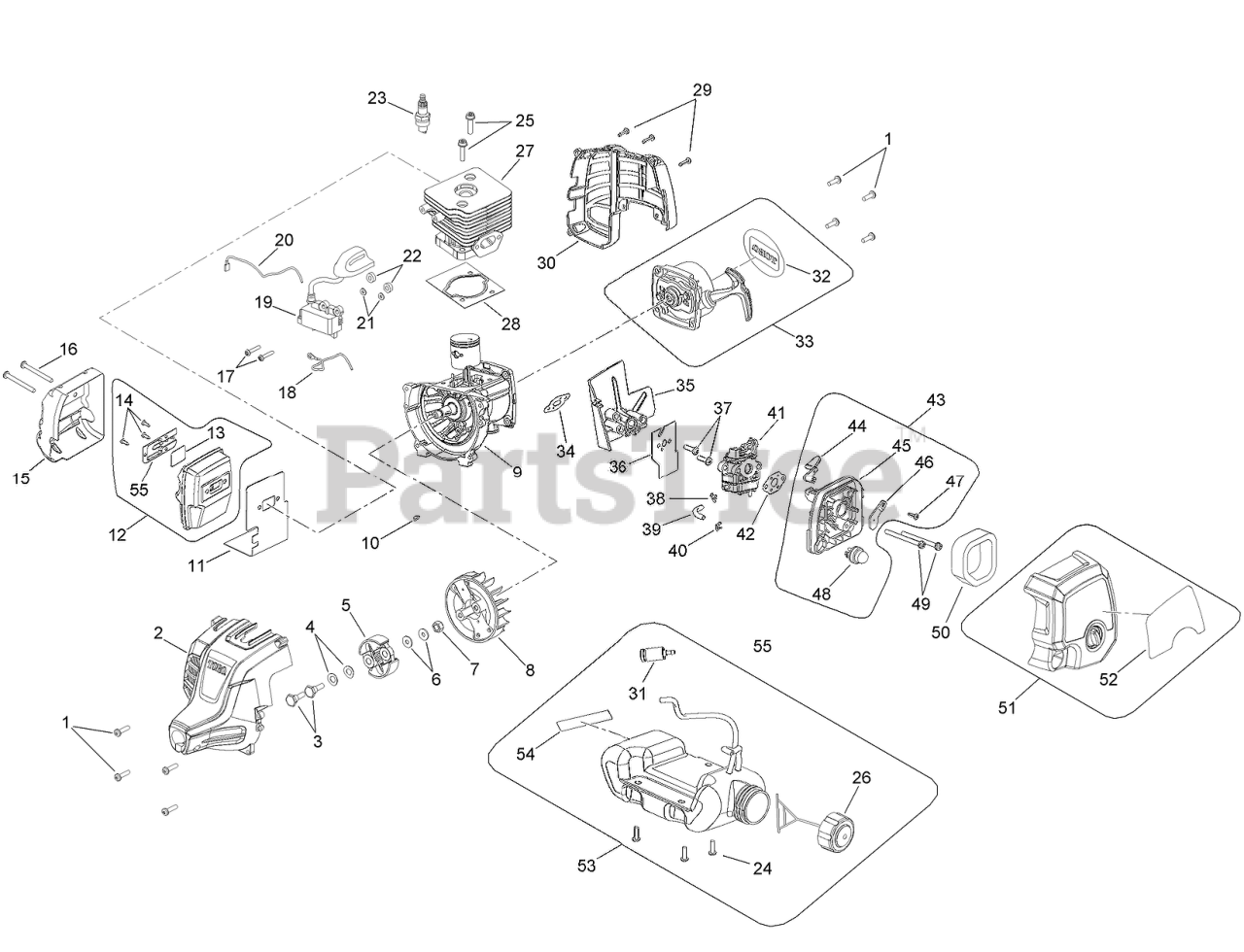

Power Head Components Assembly Parts Diagram

  • Title

1

Toro 660344001

SCREW-PH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 300754031

HOUSING-ENGINE, FRONT

$55.99

$

Usually ships in 3-6 days

0

3

Toro 660353001

SCREW-CLUTCH

$2.99

$

In Stock, only 3 left!

0

4

Toro 690696001

WASHER-CURVED

$2.99

$

In Stock, only 3 left!

0

5

Toro 307091001

CLUTCH ASM

$

$

Not available

6

Toro 690695001

DISCONTINUED

$

$

Not available

7

Toro 690689001

NUT-ROTOR

$2.99

$

Usually ships in 3-6 days

0

8

Toro 640574002

ROTOR

$42.99

$

Usually ships in 3-6 days

0

9

Toro 300749010

CRANKCASE ASM

$72.99

$

Usually ships in 3-6 days

0

10

Toro 690688001

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

11

Toro 630002032

GASKET-MUFFLER

$3.99

$

In Stock, only 2 left!

0

12

Toro 300748021

MUFFLER ASM

$82.99

$

Usually ships in 3-6 days

0

13

Toro 638268001

SCREEN

$2.99

$

In Stock, only 3 left!

0

14

Toro 660870001

SCREW-PH

$2.99

$

Usually ships in 3-6 days

0

15

Toro 638027002

SHIELD-HEAT

$12.99

$

Usually ships in 3-6 days

0

16

Toro 660347001

SCREW-PH

$1.99

$

In Stock, only 1 left!

0

17

Toro 660968004

SCREW AND WASHER

$2.99

$

Usually ships in 3-6 days

0

18

Toro 290143002

WIRE-LEAD, RED

$2.99

$

Usually ships in 3-6 days

0

19

Toro 290178024

COIL BOOT ASM

$51.99

$

In Stock, only 1 left!

0

20

Toro 290143001

WIRE-LEAD, BLACK

$2.99

$

Usually ships in 3-6 days

0

21

Toro 690969001

WASHER

$

$

Currently unavailable

22

Toro 590462001

SPACER

$

$

Currently unavailable

23

Toro 870170001

SPARK PLUG

$10.99

$

Usually ships in 3-6 days

0

24

Toro 66097002

T25 TORX PAN HEAD

$

$

Currently unavailable

25

Toro 660342001

SCREW-SOCKET HEAD

$2.99

$

Usually ships in 3-6 days

0

26

Toro 310816020

CAP-FUEL

$16.99

$

Usually ships in 3-6 days

0

27

Toro 642368001

CYLINDER

$49.99

$

Usually ships in 3-6 days

0

28

Toro 900709007

GASKET

$2.99

$

In Stock, only 2 left!

0

29

Toro 660466001

SCREW

$2.99

$

Usually ships in 3-6 days

0

30

Toro 591644002

HOUSING-ENGINE, REAR

$5.99

$

Usually ships in 3-6 days

0

31

Toro 310976001

FILTER-FUEL

$5.99

$

In Stock, only 1 left!

0

32

Toro 940865001

PLATE-LOGO

$2.99

$

Usually ships in 3-6 days

0

33

Toro 308430016

RECOIL STARTER AND STARTER CUP ASM

$51.99

$

Usually ships in 3-6 days

0

34

Toro 903279002

GASKET-HEAT DAM

$4.49

$

Usually ships in 3-6 days

0

35

Toro 532001001

HEAT DAM

$9.99

$

Usually ships in 3-6 days

0

36

Toro 901697001

GASKET

$1.99

$

In Stock, only 2 left!

0

37

Toro T662210002

SCREW

$2.49

$

Usually ships in 3-6 days

0

38

Toro 690700001

CLIP-HOSE

$2.99

$

Usually ships in 3-6 days

0

39

Toro 562967010

FUEL LINE 45MM

$2.99

$

Usually ships in 3-6 days

0

40

Toro 690699001

CLIP-HOSE
(Superseded to 6969901)

$3.49

$

Usually ships in 3-6 days

0

41

Toro 308480001

CARBURETOR ASM

$137.99

$

Usually ships in 3-6 days

0

42

Toro 9071103

GASKET-CARBURETOR

$2.99

$

Usually ships in 3-6 days

0

43

Toro 308478004

FILTER HOUSING ASM

$22.99

$

In Stock, only 1 left!

0

44

Toro 590458001

LEVER-CHOKE

$2.99

$

In Stock, only 1 left!

0

45

Toro 518130001

PLATE-CARBURETOR

$8.49

$

In Stock, only 1 left!

0

46

Toro 590946001

PLATE-CHOKE

$2.99

$

Usually ships in 3-6 days

0

47

Toro 660345001

SCREW-PH

$2.99

$

Usually ships in 3-6 days

0

48

Toro 300780002

PRIMER ASM

$

$

Not available

49

Toro 660454015

T20 TORX CAP SOC HD

$2.99

$

Usually ships in 3-6 days

0

50

Toro 560873001

ELEMENT-FILTER, AIR

$

$

Not available

51

Toro 308890002

COVER ASM

$7.99

$

In Stock, only 2 left!

0

52

Toro 940686148

DECAL-START

$2.99

$

Usually ships in 3-6 days

0

53

Toro 205309002

FUEL TANK AND CAP ASM

$39.99

$

Usually ships in 3-6 days

0

54

Toro 941019010

COMBUSTION WARNING LABEL

$

$

Currently unavailable

55

Toro 638267001

COVER-TRIMMER

$37.99

$

Usually ships in 3-6 days

0
