51978 (090309046) - Toro 18" Straight-Shaft String Trimmer, Revision 01 (SN: 320000001 - 320999999) (2020-02) FIGURE C Parts Diagram

18" Straight-Shaft String Trimmer, Revision 01

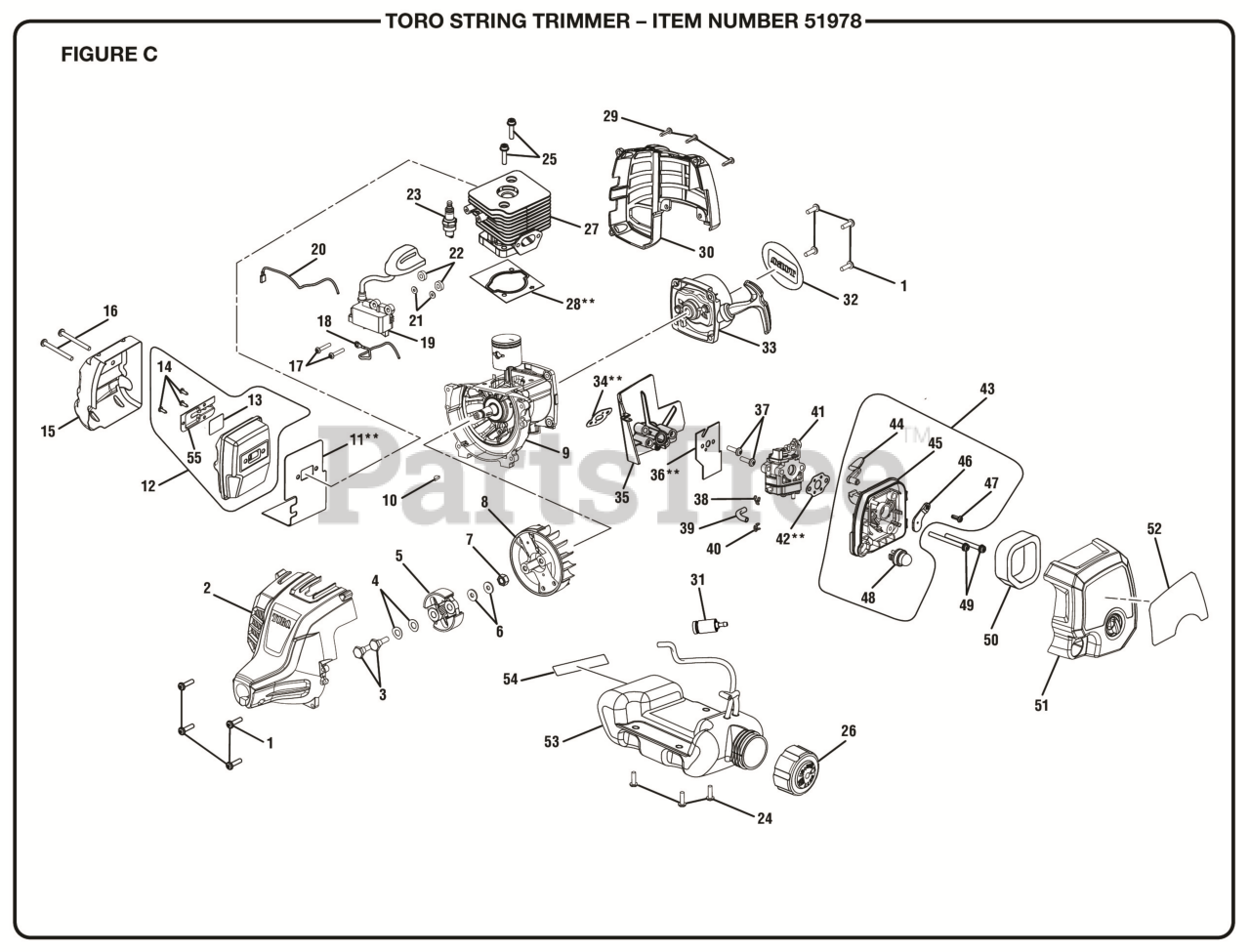

FIGURE C Parts Diagram

  • Title

1

Homelite 660344001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6634401)

$

$

Not available

2

Homelite 300754031

Front Housing Assembly

$

$

Not available

3

Homelite 660353001

Clutch Shoulder Bolt (M6 x 22.5 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 690696001

Washer (Curved)
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

5

Homelite 307091001

Clutch Assembly

$

$

Not available

6

Homelite 690695001

Washer (ID6 x OD15 x 1.2t)
(Superseded to 983788071)

$

$

Not available

7

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

8

Homelite 640574002

Flywheel

$18.99

$

Usually ships in 3-7 days

0

9

Homelite 300749010

Crankcase Assembly.

$72.99

$

Usually ships in 3-7 days

0

10

Homelite 690688001

WOODRUFF KEY (10 mm X 3 mm)
(Superseded to 983784006)

$

$

Not available

11

Homelite 630002032

Muffler Gasket

Note: Non-Reuseable Parts To locate a source for replacement parts, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

$3.99

$

In Stock, only 2 left!

0

12

Homelite 300748064

Muffler Assembly

$31.99

$

Usually ships in 3-7 days

0

13

Homelite 638268001

SCREEN
(Superseded to 984753001)

$2.99

$

In Stock, only 1 left!

0

14

Homelite 660870001

Screw (6-20 x 1/4 in., T20 Torx Pan Hd. S.T.)
(Superseded to 984759001)

$

$

Not available

15

Homelite 638027002

HEAT SHIELD

$

$

Not available

16

Homelite 660347001

Screw (M5 x 50 mm, Torx Slotted Recessed Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 660968004

Screw (M4 x 22 mm, T20 Torx Slotted Recessed Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 290143002

Lead Wire Assembly, Red
(Superseded to 2914302)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 290178024

Coil Boot Assembly

$47.99

$

In Stock, only 1 left!

0

20

Homelite 290143001

Lead Wire Assembly, Black
(Superseded to 2914301)

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 690969001

Flat Washer (OD10 x ID42 x 1t)

$1.99

$

In Stock, Qty 5

0

22

Homelite 590462001

Phenolic Spacer (Ignition Module)

$2.99

$

In Stock, only 2 left!

0

23

Homelite 870170001

SPARK PLUG (CHAMPION RCJ4)

Note: Standard Hardware Item - May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 4 left!

0

25

Homelite 660342001

Screw (M5 x 22 mm, T25 Torx Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 310816020

Fuel Cap Assembly

$

$

Not available

27

Homelite 642368001

Cylinder

$65.99

$

Usually ships in 3-7 days

0

28

Homelite 900709007

Gasket

Note: Non-Reuseable Parts To locate a source for replacement parts, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

$1.99

$

In Stock, only 4 left!

0

29

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 7

0

30

Homelite 591644002

Rear Engine Housing

$5.49

$

Usually ships in 3-7 days

0

31

Homelite 310976001

Fuel Filter

$

$

Not available

32

Homelite 940865001

Logo Label (Rear)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 308430016

Starter Recoil & Starter Cup Assembly

$

$

Not available

34

Homelite 903279002

Heat Dam Insulator

Note: Non-Reuseable Parts To locate a source for replacement parts, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

$

$

Not available

35

Homelite 532001001

Heat Dam

$9.99

$

Usually ships in 3-7 days

0

36

Homelite 901697001

Gasket

Note: Non-Reuseable Parts To locate a source for replacement parts, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

$1.99

$

In Stock, only 2 left!

0

37

Homelite T662210002

Screw w/Washers (M5 x 30 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 690700001

Clip-hose (Id 4.9)
(Superseded to 6970001)

$1.99

$

In Stock, Qty 9

0

39

Homelite 562967010

Fuel Line (45 mm)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 690699001

CLIP-HOSE (ID 4.9)
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 308480001

CARBURETOR ASSEMBLY

$

$

Not available

42

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

Note: Non-Reuseable Parts To locate a source for replacement parts, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

$

$

Not available

43

Homelite 308478004

Filter Housing Assembly

$12.99

$

Usually ships in 3-7 days

0

44

Homelite 590458001

CHOKE LEVER
(Superseded to 5945801)

$

$

Not available

45

Homelite 518130001

CARBURETOR PLATE

$3.99

$

In Stock, only 1 left!

0

46

Homelite 590946001

Screw (M4 x 12 mm, T20 Torx Pan Hd. S.T.)
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

47

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

48

Homelite 300780002

Primer Bulb Assembly
(Superseded to 01183)

$

$

Not available

49

Homelite 660454015

Screw (M5 x 44 mm,T25 Torx Hd. Carburetor)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 560873001

Air Filter (Element)
(Superseded to 5687301)

$

$

Not available

51

Homelite 308890002

Airbox Cover Assembly w/Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940686148

Starting Instructions Label

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 205309002

Fuel Tank & Cap Assembly

$

$

Not available

54

Homelite 941019010

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 638267001

Trimmer Outlet

$37.99

$

Usually ships in 3-7 days

0
