51978 (090309027) - Toro 18" Straight-Shaft String Trimmer, Revision 02 (SN: 317000001 - 317999999) (2017-11) Figure A Parts Diagram

18" Straight-Shaft String Trimmer, Revision 02

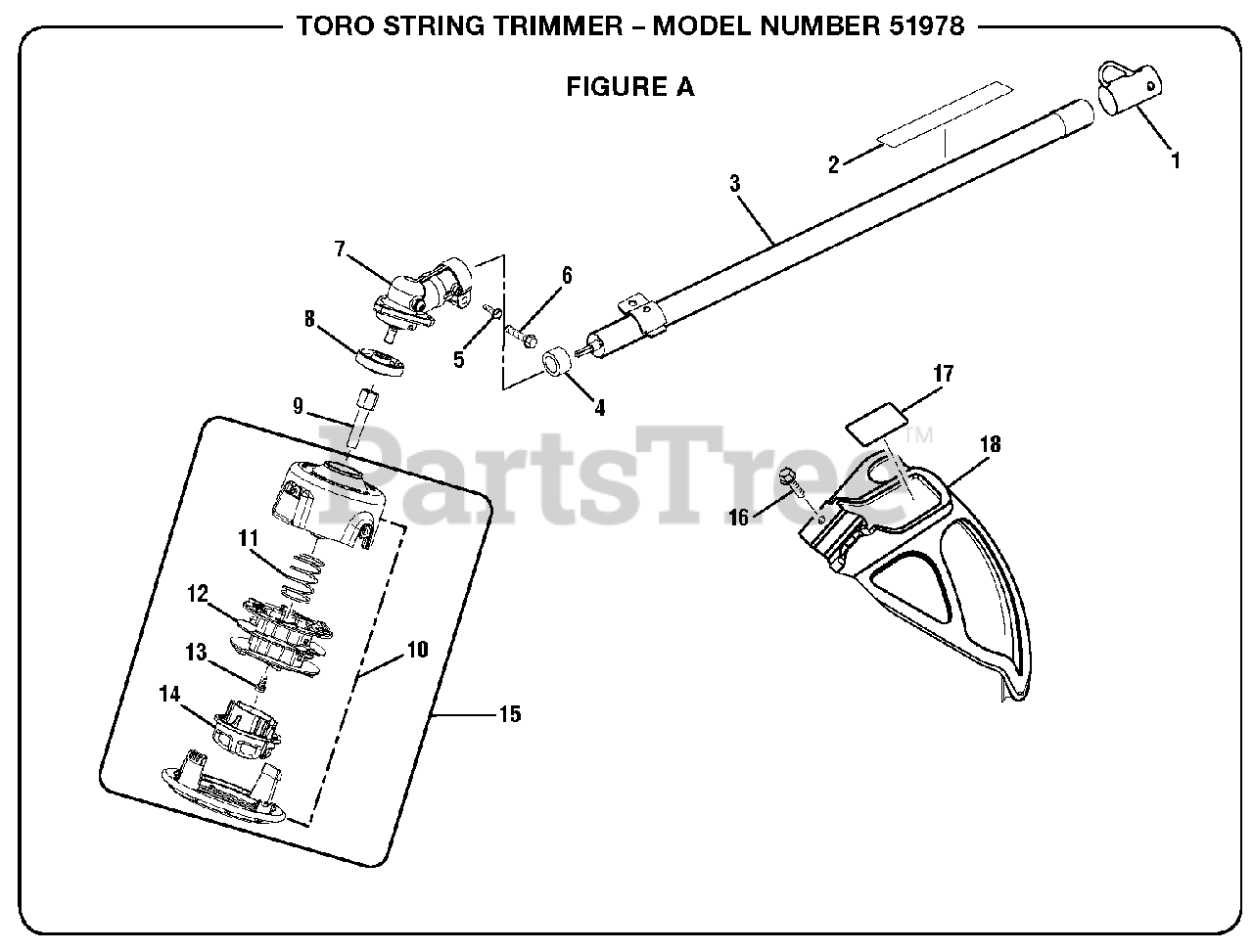

Figure A Parts Diagram

  • Title

1

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

2

Homelite 940657165

Warning Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 308035059

Straight Shaft Assembly

Note: (Inc. Key Nos.1-2)

$

$

Not available

4

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

5

Homelite 660736001

Screw (10-24 x 5/8 in., Hex Washer Hd.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

6

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

7

Homelite 308210008

Gear Head Assembly
(Superseded to 308210001)

$

$

Not available

8

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 678019004

Trimmer Head Shaft Adaptor

$4.99

$

In Stock, only 1 left!

0

10

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

12

Homelite 308924002

Spool
(Superseded to 308924001)

$

$

Not available

13

Homelite 660649001

Bolt (5/16-18 x 1/2 in., L.H.)

$1.99

$

In Stock, only 1 left!

0

14

Homelite 518803003

Bump Knob

$

$

Not available

15

Homelite 309034005

Trimmer Head Assembly

Note: (Inc. Key Nos. 10-14) (.095)

$

$

Currently unavailable

16

Homelite 660738002

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd.)
(Superseded to 983379078)

$

$

Not available

17

Homelite 940865002

Grass Deflector Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

$11.99

$

In Stock, only 1 left!

0
