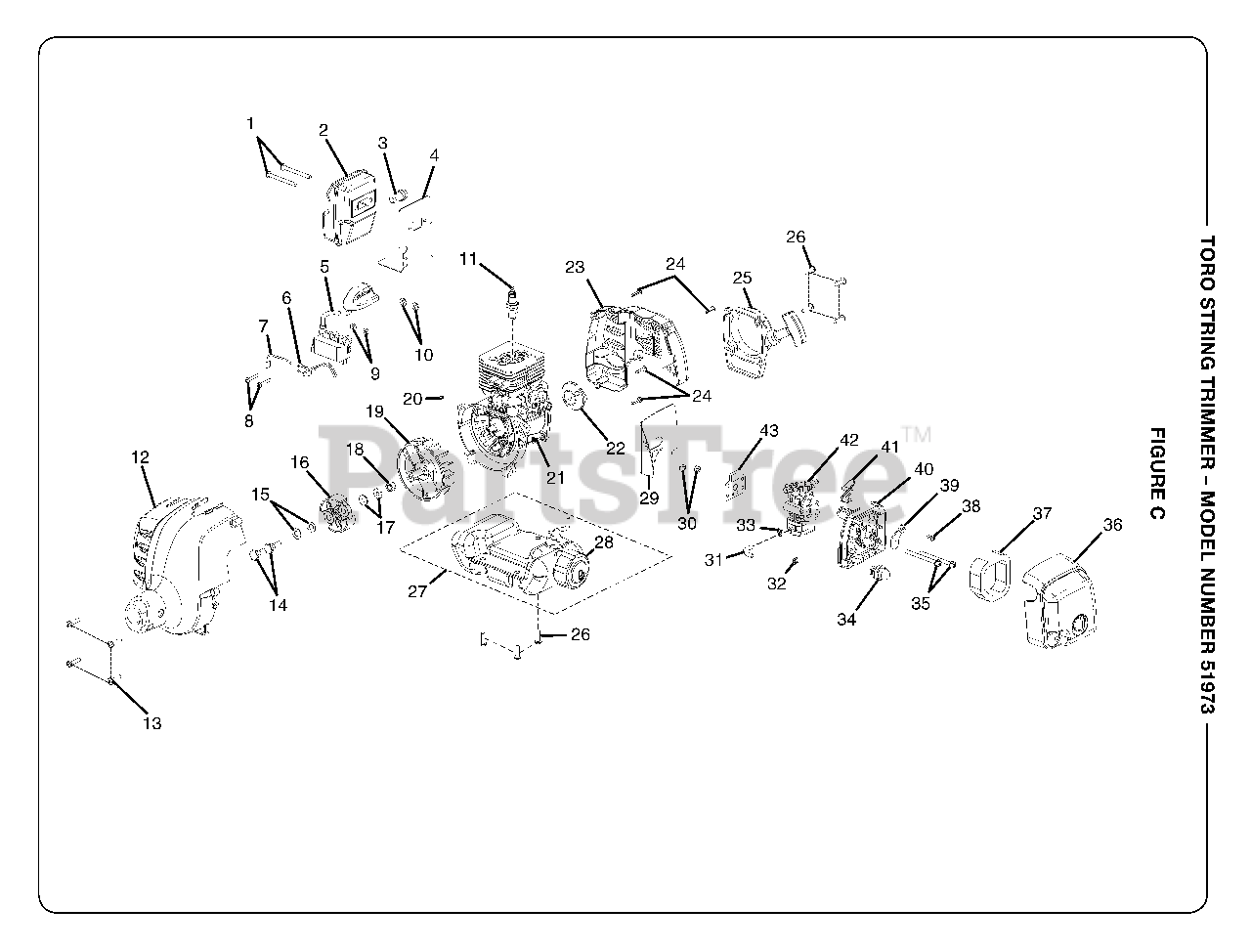

51973 - Toro String Trimmer (SN: 260000001 - 999999999) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Homelite 660347001

SCREW (M5 X 50 mm TORX SLOTTED RECESSED PAN HD.)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 308709001

MUFFLER ASSEMBLY

$

$

Currently unavailable

3

Homelite 6300210

SCREEN

$

$

Not available

4

Homelite 638183006

MUFFLER GASKET

$

$

Currently unavailable

5

Homelite 290178006

COIL BOOT ASSEMBLY

$

$

Not available

6

Homelite 290143002

LEAD ASSEMBLY, RED
(Superseded to 2914302)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290143001

LEAD ASSEMBLY, BLACK
(Superseded to 2914301)

$3.49

$

Usually ships in 3-7 days

0

8

Homelite 66034901

SCREW (M4 X 22 mm Torx SLOTTED RECESSED PAN HD.)

$

$

Currently unavailable

9

Homelite 590462001

SPACER

$2.99

$

In Stock, only 2 left!

0

10

Homelite 690969001

WASHER

$1.99

$

In Stock, Qty 5

0

11

Homelite 870217001

SPARK PLUG
(Superseded to 870301002)

$8.49

$

In Stock, only 1 left!

0

12

Homelite 300754010

FRONT HOUSING ASSEMBLY
(Superseded to 3075403)

$

$

Not available

13

Homelite 660344001

SCREW (M5 X 20 mm Torx SLOTTED RECESSED PAN HD.)
(Superseded to 6634401)

$

$

Not available

14

Homelite 660353001

CLUTCH SCREW

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 690696001

CURVED WASHER
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

16

Homelite 300756001

CLUTCH ASSEMBLY
(Superseded to 300756007)

$

$

Not available

17

Homelite 690695001

WASHER
(Superseded to 983788071)

$

$

Not available

18

Homelite 690689001

ROTOR NUT
(Superseded to 6968901)

$

$

Not available

19

Homelite 640574001

ROTOR
(Superseded to 6457401)

$

$

Not available

20

Homelite 690688001

WOODRUFF KEY (10 mm X 3 mm)
(Superseded to 983784006)

$

$

Not available

21

Homelite 308707001

SHORT BLOCK ASSEMBLY

$

$

Not available

22

Homelite 308004001

PULLEY ASSEMBLY

$17.99

$

Usually ships in 3-7 days

0

23

Homelite 590470001

ENGINE HOUSING, REAR
(Superseded to 5947001)

$3.99

$

Usually ships in 3-7 days

0

24

Homelite 660563001

SCREW (M4 X 16 mm Torx RECESSED PAN HD.)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

25

Homelite 308430001

STARTER RECOIL ASSEMBLY
(Superseded to 308430016)

$

$

Not available

26

Homelite 660351001

SCREW (M5 X 16 mm Torx SLOTTED)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 300757002

FUEL TANK ASSEMBLY
(Superseded to 3075702)

Note: (INC. KEY NO. 28)

$

$

Not available

28

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

29

Homelite 900711001

INSULATOR GASKET

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 690840001

NUT (M5 X .8 mm)
(Superseded to 983619014)

$

$

Not available

31

Homelite 570259008

FUEL LINE

$1.49

$

In Stock, only 4 left!

0

32

Homelite 690700001

HOSE CLIP
(Superseded to 6970001)

$1.99

$

In Stock, Qty 9

0

33

Homelite 690699001

HOSE CLIP
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 300780002

PRIMER ASSEMBLY
(Superseded to 01183)

$

$

Not available

35

Homelite 660346001

SCREW (M5 X 60 mm SLOTTED RECESSED PAN HD.MACHINE)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 300747001

COVER ASSEMBLY

$

$

Currently unavailable

37

Homelite 560873001

ELEMENT
(Superseded to 5687301)

$

$

Not available

38

Homelite 660345001

SCREW (M4 X 12 mm SLOTTED RECESSED PAN HD.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

39

Homelite 590459001

CHOKE PLATE

$

$

Currently unavailable

40

Homelite 590457001

CARBURETOR PLATE

$

$

Currently unavailable

41

Homelite 590458001

CHOKE LEVER
(Superseded to 5945801)

$

$

Not available

42

Homelite 308708001

CARBURETOR ASSEMBLY

$

$

Not available

43

Homelite 900758001

CARBURETOR GASKET

$

$

Not available
