51972 - Toro String Trimmer (SN: 260000001 - 999999999) Upper Boom / Handle Assembly Parts Diagram

String Trimmer

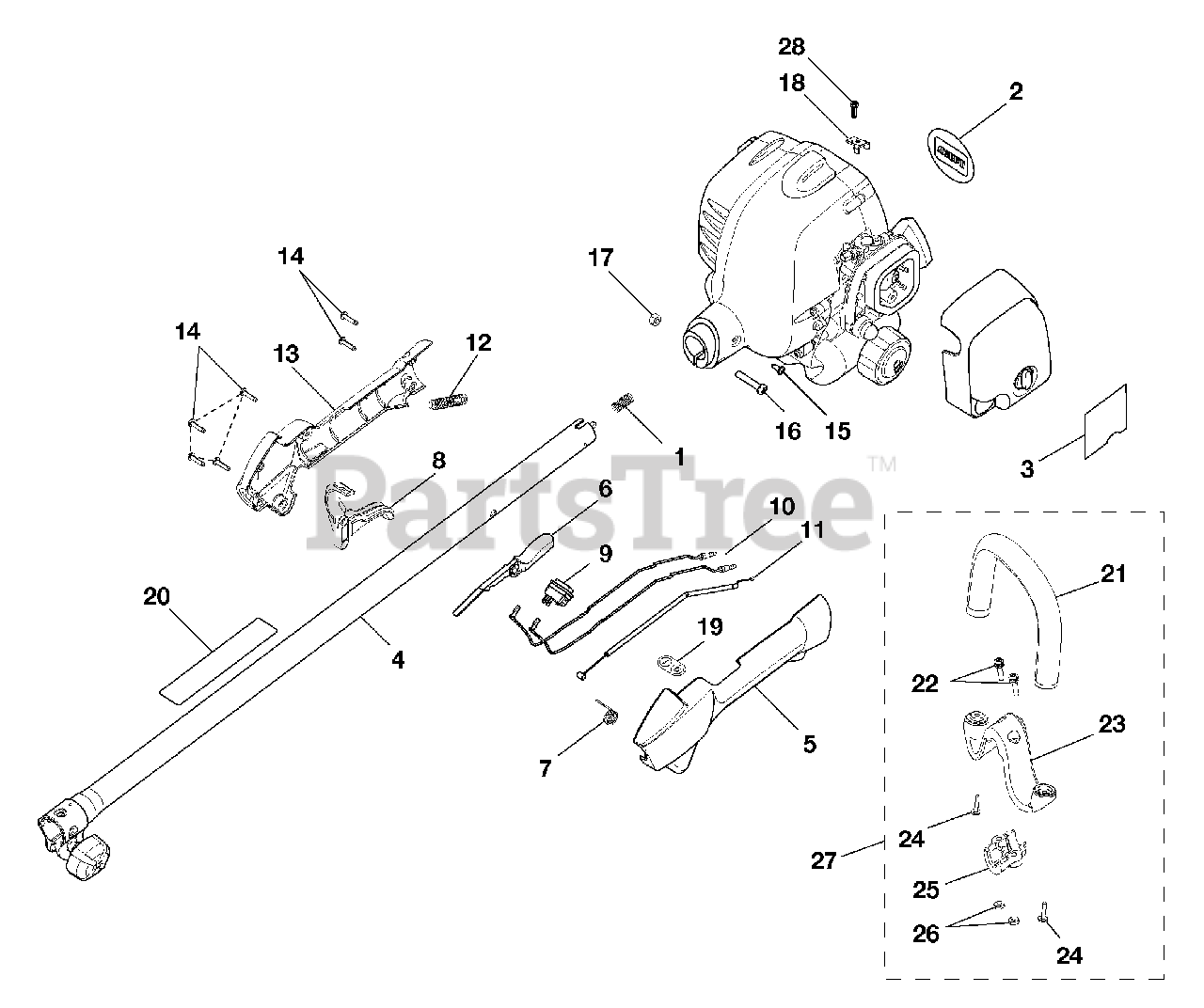

Upper Boom / Handle Assembly Parts Diagram

  • Title
1

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 950060008

LOGO PLATE
(Superseded to 983646001)

$

$

Not available

3

Homelite 940686004

LOWER START LABEL

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 000998234

UPPER SHAFT ASSEMBLY
(Superseded to 000998235)

Note: (INC. KEY NO. 20)

$

$

Not available

5

Homelite 518122001

REAR HANDLE SUPPORT
(Superseded to 983621001)

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 518125001

LOCK-OFF BUTTON
(Superseded to 983623001)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 690694002

TRIGGER SPRING

$1.99

$

In Stock, only 4 left!

0

8

Homelite 518124001

TRIGGER
(Superseded to 983620001)

$

$

Not available

9

Homelite 760394001

SWITCH WITH DUST SHIELD
(Superseded to 984236002)

$

$

Not available

10

Homelite 770670001

LEAD
(Superseded to 983782001)

$

$

Not available

11

Homelite 308225003

CABLE, THROTTLE

$2.99

$

In Stock, only 3 left!

0

12

Homelite 518210004

CORRUGATED TUBE
(Superseded to 983632003)

$

$

Not available

13

Homelite 518123001

REAR HANDLE COVER
(Superseded to 983622001)

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 660563002

SCREW (M4 X 16 mm)

$1.99

$

In Stock, Qty 6

0

15

Homelite 660669001

SCREW (#8-16 X 1/2 in. TRI-LOBULAR)

$1.49

$

In Stock, only 3 left!

0

16

Homelite T660697001

SCREW (M6 X 1-30 mm)

$1.99

$

Usually ships in 3-7 days

0

17

$1.99

$

In Stock, Qty 6

0

18

Homelite 638133001

THROTTLE CABLE CLAMP
(Superseded to 985255001)

$

$

Not available

19

Homelite 940627017

ON/OFF LABEL
(Superseded to 984240001)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940230129

WARNING LABEL
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 000998217

ASSIST HANDLE W/GRIP

$

$

Not available

22

Homelite 660653001

SCREW (#12-24 X 1 in.)
(Superseded to PS04159)

$2.49

$

In Stock, only 3 left!

0

23

$3.99

$

Usually ships in 3-7 days

0

24

Homelite 660637001

SLOTTED TORX SCREW
(Superseded to 82620)

$1.99

$

In Stock, Qty 6

0

25

Homelite 518020001

CLAMP
(Superseded to PS04072)

$4.99

$

In Stock, only 2 left!

0

26

Homelite 678106001

HEX NUT (12-24)
(Superseded to 81068)

$

$

Not available

27

Homelite 308056001

ASSIST HANDLE ASSEMBLY

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 660734001

SCREW (M4 X 16 mm)

$1.99

$

In Stock, only 3 left!

0

Homelite 983000854

OPERATOR'S MANUAL

$

$

Not available

Homelite NLA

REPAIR SHEET

$

$

Currently unavailable
