51972 - Toro String Trimmer (SN: 260000001 - 999999999) Lower Boom / Spool Assembly Parts Diagram

String Trimmer

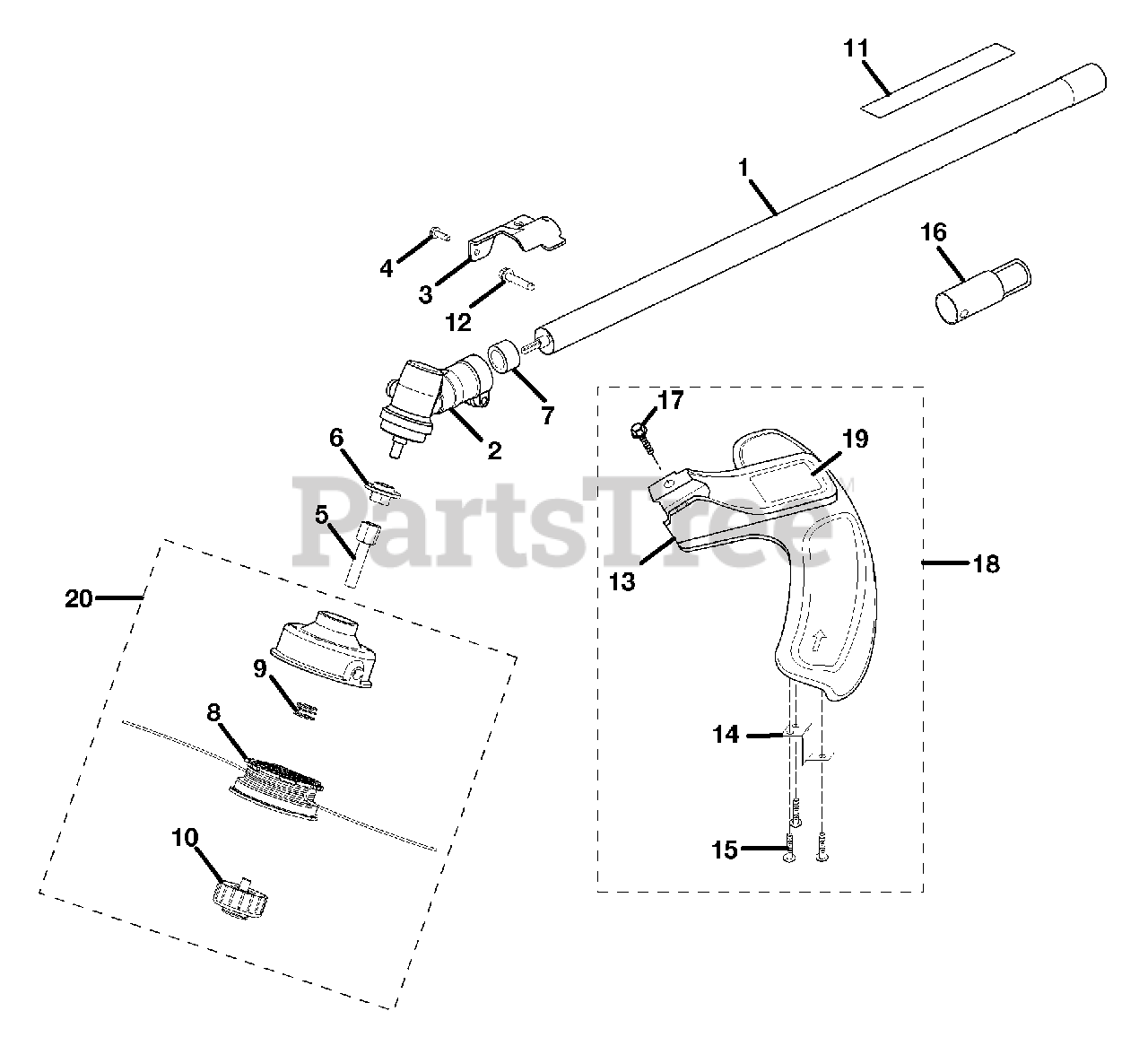

Lower Boom / Spool Assembly Parts Diagram

  • Title

1

Homelite 000998232

STRAIGHT SHAFT ASSEMBLY
(Superseded to 985570001)

Note: (INC. KEY NO. 11)

$

$

Not available

2

Homelite 308053004

GEAR CASE ASSEMBLY
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

3

Homelite 638125001

GRASS DEFLECTOR CLAMP
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

4

Homelite 660736001

SCREW
(Superseded to 983774003)

Note: (#10-24 X 5/8 in. HEX WASHER HD.)

$2.49

$

In Stock, Qty 5

0

5

Homelite 678019002

TRIMMER HEAD SHAFT ADAPTOR

$

$

Not available

6

Homelite 678011002

FLANGED WASHER

$

$

Not available

7

Homelite 518367001

SPACER

$1.99

$

In Stock, only 3 left!

0

8

Homelite 308044003

SPOOL WITH LINE (.095)

$

$

Not available

9

Homelite 678022001

COMPRESSION SPRING
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

10

Homelite 308042003

RETAINING CAP, LEFT-HANDED THREAD

$7.49

$

In Stock, Qty 5

0

11

Homelite 940230129

WARNING LABEL
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 660642001

SCREW (1/4-20 X 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

13

Homelite 518126001

GRASS DEFLECTOR
(Superseded to 984099001)

$

$

Not available

14

Homelite 638020002

LINE CUTTING BLADE
(Superseded to PS04379)

$

$

Not available

15

Homelite 660669001

SCREW

$1.49

$

In Stock, only 3 left!

0

16

Homelite 518019001

HANGER CAP
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

17

Homelite 660738002

SCREW
(Superseded to 983379078)

Note: (#1/4-20 X 1-1/4 in. HEX WASHER HD.)

$

$

Not available

18

Homelite 308467001

GRASS DEFLECTOR ASSEMBLY
(Superseded to 308473004)

Note: (INC. KEY NOS. 13-15, 17, AND 19)

$11.99

$

In Stock, only 1 left!

0

19

Homelite 940627020

GRASS DEFLECTOR LABEL

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 000998265

TRIMMER HEAD ASSEMBLY

Note: (INC. KEY NOS. 8, 9, AND 10);(.095)

$103.99

$

In Stock, only 1 left!

0
