51958 - Toro 17" Curved-Shaft String Trimmer (SN: 322000001 - 322999999) (2022) Trimmer Head, Shaft and Guard Assembly Parts Diagram

17" Curved-Shaft String Trimmer

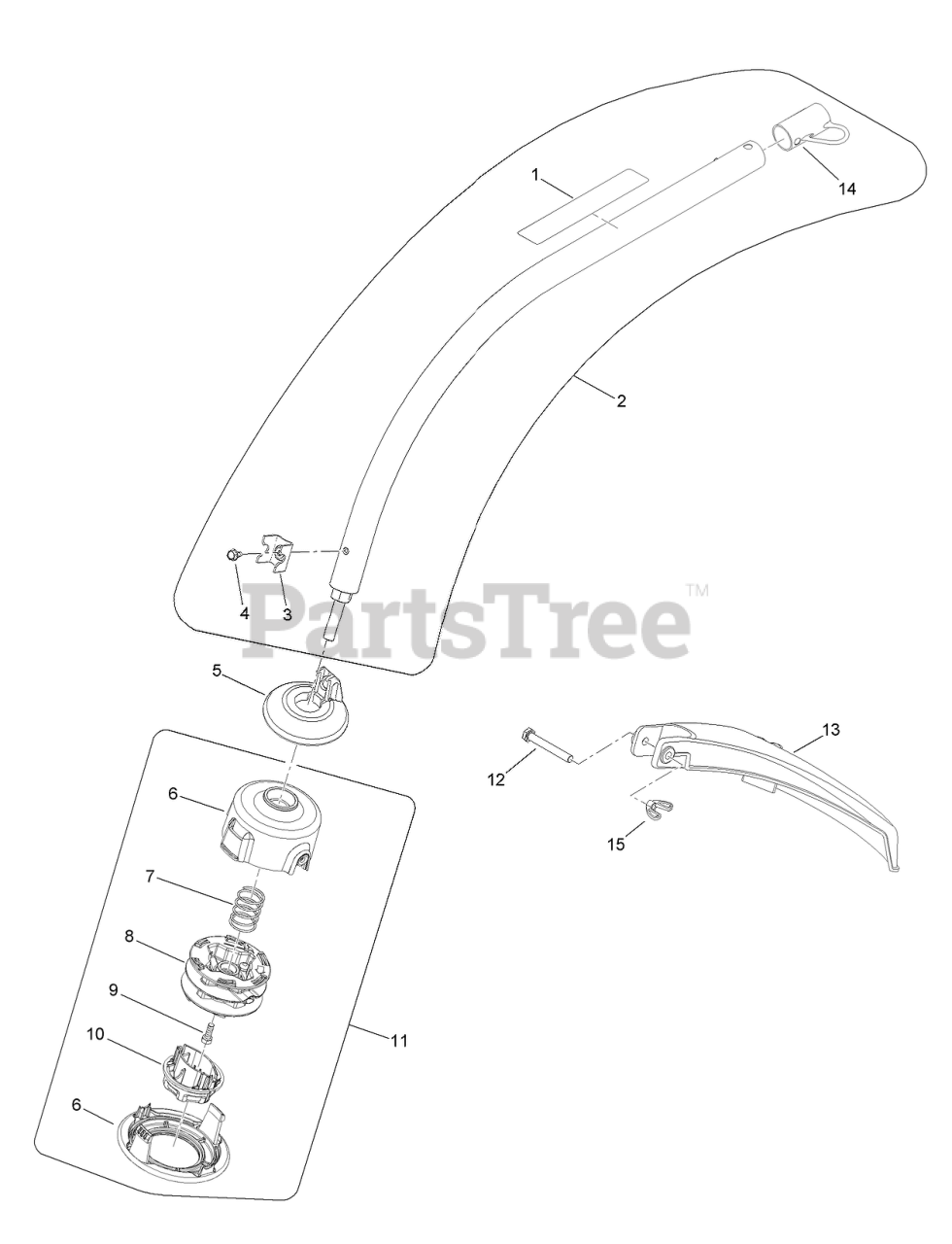

Trimmer Head, Shaft and Guard Assembly Parts Diagram

  • Title

1

Toro 940657165

DECAL-WARNING

$3.49

$

Usually ships in 3-6 days

0

2

Toro 308841018

SHAFT ASM

$49.99

$

Usually ships in 3-6 days

0

3

Toro 638001001

DISCONTINUED

$

$

Not available

4

Toro 660647001

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 522702001

SHIELD-GRASS

$1.99

$

In Stock, Qty 5

0

6

Toro 308827003

See Supercession: 308827002
(Superseded to 308827002)

$27.99

$

Usually ships in 3-6 days

0

7

Toro 678749001

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 20+

0

8

Toro 308924001

SPOOL ASM

$9.49

$

Usually ships in 3-6 days

0

9

Toro 660650001

BOLT

$1.99

$

In Stock, only 1 left!

0

10

Toro 518803003

KNOB-BUMP

$

$

Not available

11

Toro 309034006

See Supercession: 308923014
(Superseded to 308923014)

$91.99

$

In Stock, only 2 left!

0

12

Toro 660643009

SCREW

$2.99

$

Usually ships in 3-6 days

0

13

Toro 308052010

GUARD-SHIELD, GRASS

$11.99

$

Usually ships in 3-6 days

0

14

Toro 519019004

HANGER CAP

$

$

Currently unavailable

15

Toro 518949001

NUT-WING

$2.99

$

In Stock, only 1 left!

0
