51958 - Toro 17" Curved-Shaft String Trimmer (SN: 314000001 - 314999999) (2014) TRIMMER HEAD, SHAFT AND GUARD ASSEMBLY Parts Diagram

17" Curved-Shaft String Trimmer

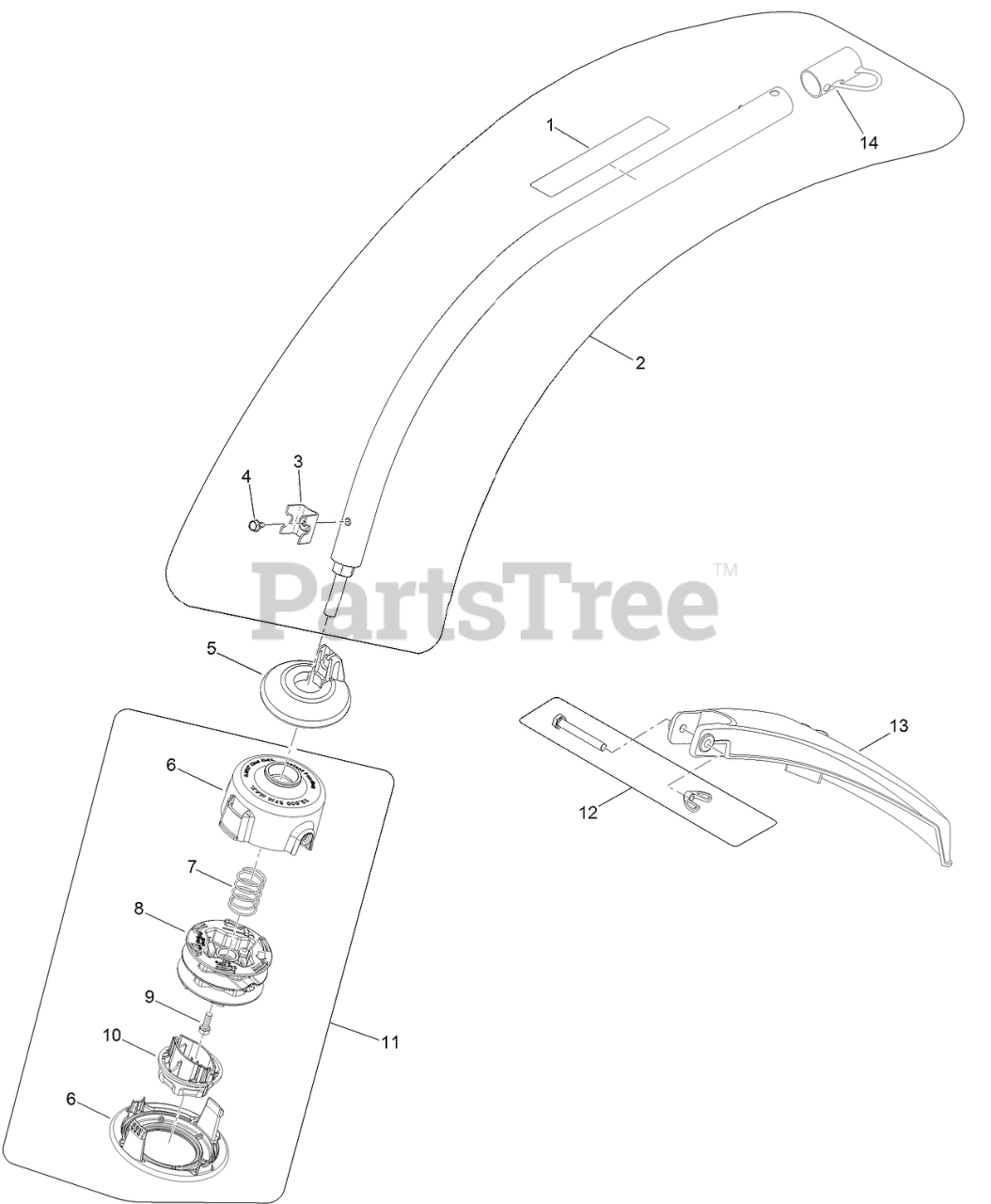

TRIMMER HEAD, SHAFT AND GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 940657032

DECAL-LABEL, WARNING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 308841013

CURVED SHAFT ASM

$51.99

$

Usually ships in 3-6 days

0

3

Toro 638001001

CLAMP

$

$

Not available

4

Toro 660647001

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 522702001

SHIELD-GRASS

$1.99

$

In Stock, Qty 5

0

6

Toro 308827003

HOUSING-STRINGHEAD
(Superseded to 308827002)

$27.99

$

Usually ships in 3-6 days

0

7

Toro 678749001

SPRING-COMPRESSION

$1.99

$

In Stock, Qty 20+

0

8

Toro 308924002

SPOOL
(Superseded to 308924001)

$9.49

$

Usually ships in 3-6 days

0

9

Toro 660650001

BOLT

$1.99

$

In Stock, only 1 left!

0

10

Toro 518803003

KNOB-BUMP

$

$

Not available

11

Toro 309034001

TRIMMER HEAD ASM

$73.99

$

In Stock, Qty 7

0

12

Toro 120650007

GRASS SHIELD HARDWARE KIT

$2.99

$

In Stock, only 2 left!

0

13

Toro 308052005

GUARD-TRIMMER

$3.99

$

Usually ships in 3-6 days

0

14

Toro 518019002

CAP-HANGER

$2.99

$

Usually ships in 3-6 days

0
