51958 (090309022) - Toro 17" Curved-Shaft String Trimmer (SN: 314000001 - 314999999) (2014) Figure A Parts Diagram

17" Curved-Shaft String Trimmer

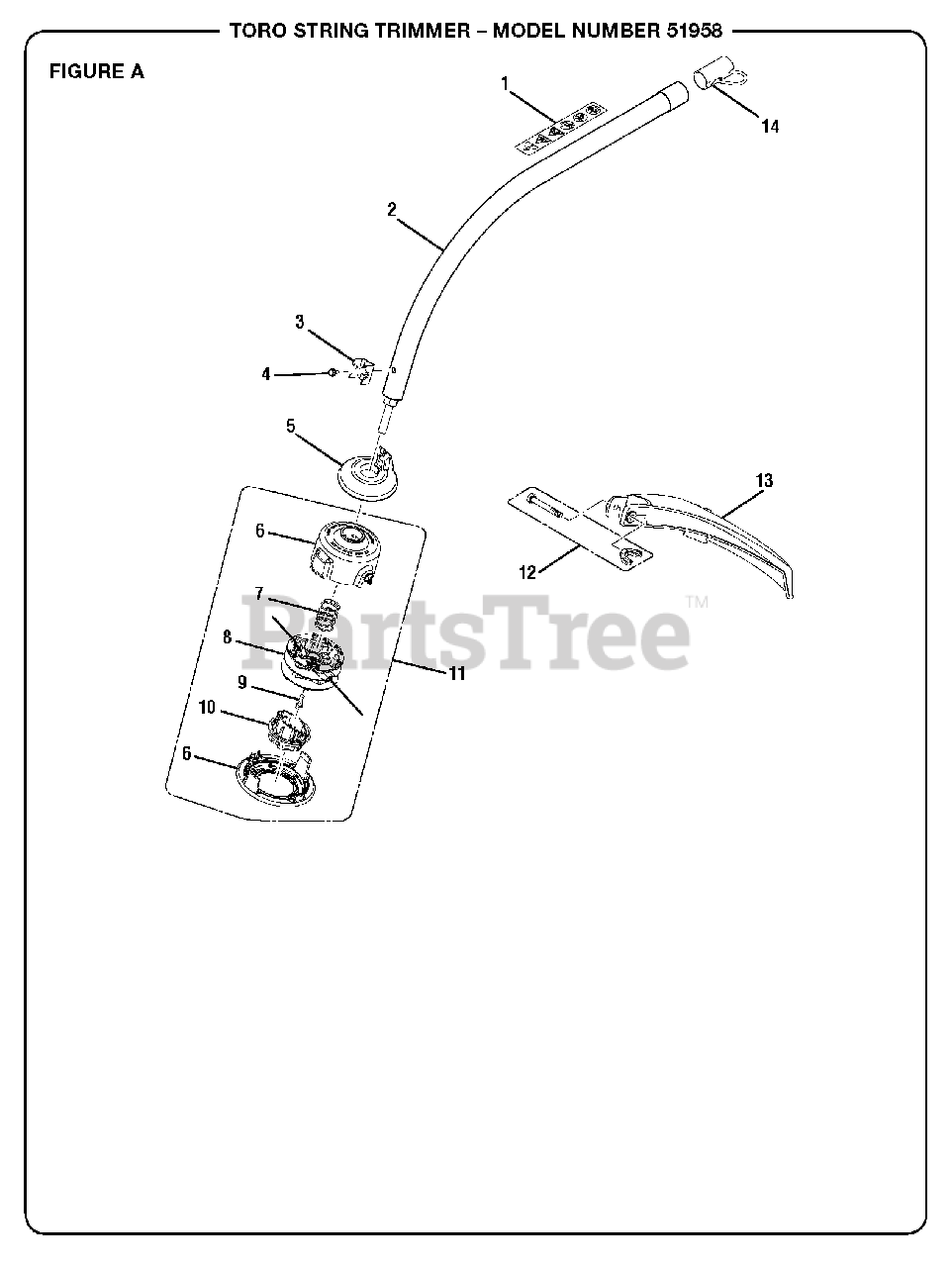

Figure A Parts Diagram

  • Title

1

Homelite 940657032

Warning Label
(Superseded to 940657165)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 308841018

Curved Shaft Assembly

Note: (Inc. Key Nos. 1, 3-4 and 14)

$22.99

$

Usually ships in 3-7 days

0

3

Homelite 638001001

Clamp

$1.99

$

In Stock, Qty 5

0

4

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd.)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 522702001

Grass Shield

$1.99

$

In Stock, Qty 5

0

6

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

8

Homelite 308924002

Spool
(Superseded to 308924001)

$

$

Not available

9

Homelite 660650001

Bolt (5/16-18 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518803003

Bump Knob

$

$

Not available

11

Homelite 309034001

Trimmer Head Assembly (.095)

Note: (Inc. Key Nos. 6-10)

$

$

Not available

12

Homelite 120650007

Fastener Parts Kit

$

$

Not available

13

Homelite 308052010

Guard

Note: (Inc. Key No. 12)

$

$

Not available

14

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0
