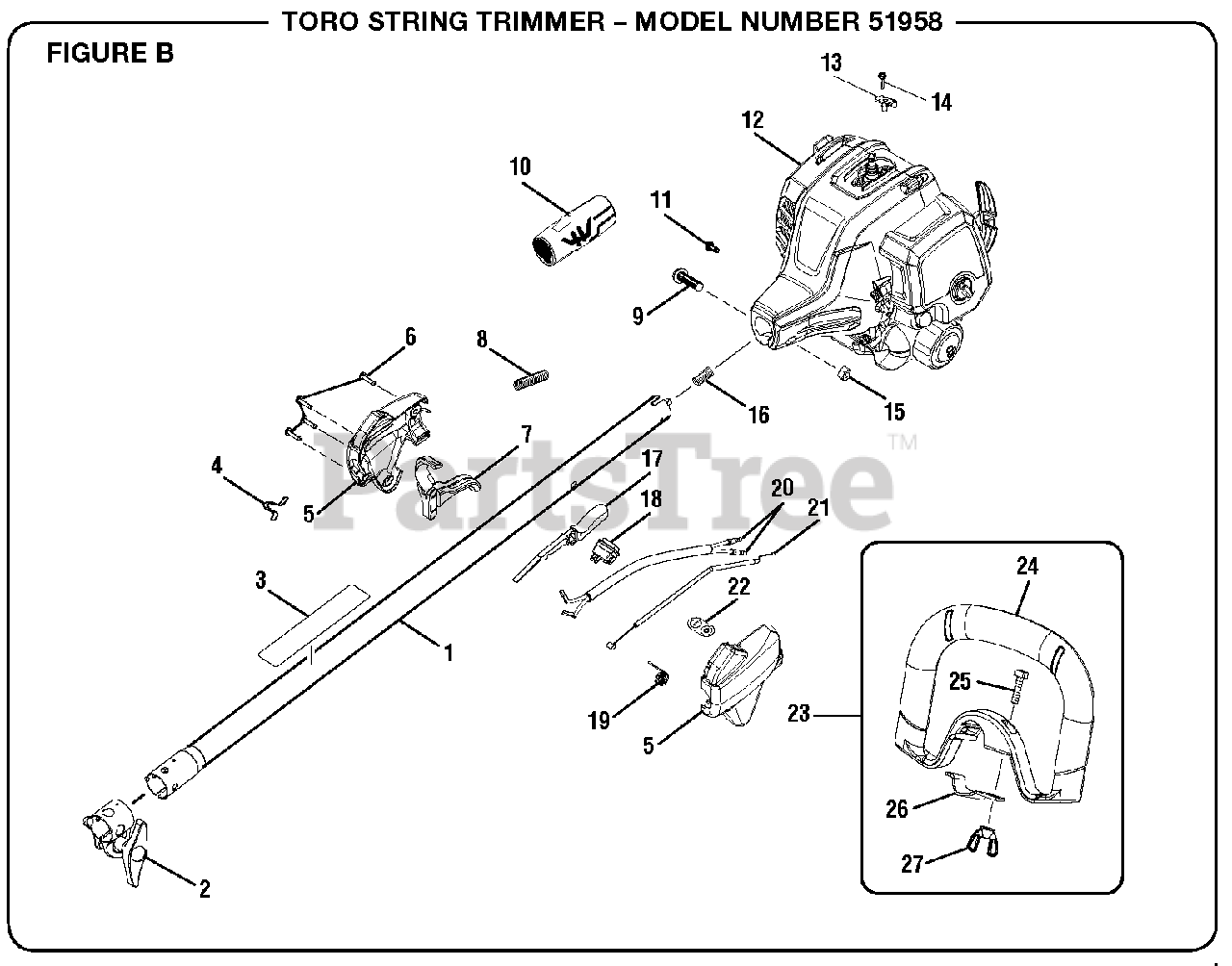

51958 (090309019) - Toro 17" Curved-Shaft String Trimmer (SN: 314000001 - 314999999) (2014) Figure B Parts Diagram

17" Curved-Shaft String Trimmer

Figure B Parts Diagram

  • Title
1

Homelite 308159025

Upper Boom Assembly

Note: (Inc. Key Nos. 2-3)

$

$

Not available

2

Homelite 308045014

Boom Clamp Assembly

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 940657034

Warning Label

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 638431001

Shoulder Strap Clip

$1.99

$

In Stock, only 2 left!

0

5

Homelite 308869003

Control Handle Assembly

$9.99

$

Usually ships in 3-7 days

0

6

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Hd.)

$1.99

$

In Stock, Qty 6

0

7

$

$

Not available

8

Homelite 518210004

Corrugated Tube
(Superseded to 983632003)

$

$

Not available

9

Homelite T660697001

Screw (M6 x 30 mm)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 570234009

Rear Handle Grip
(Superseded to 570234016)

$3.99

$

In Stock, only 4 left!

0

11

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Hd.)

$1.99

$

In Stock, only 3 left!

0

12

Powerhead Assembly

$

$

Not available

13

Homelite 638133001

Throttle Cable Clamp
(Superseded to 985255001)

$

$

Not available

14

Homelite 660734001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 3 left!

0

15

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

16

Homelite 678906001

Compression Spring

$1.49

$

In Stock, only 2 left!

0

17

Homelite 518695017

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 760961005

On/Stop Switch

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 690694002

Throttle Cable Spring

$1.99

$

In Stock, only 4 left!

0

20

Homelite 308863029

Lead Assembly

$5.49

$

Usually ships in 3-7 days

0

21

Homelite 308225011

Throttle Cable

$2.99

$

In Stock, only 3 left!

0

22

Homelite 940864003

On/Stop Label

$

$

Not available

23

Homelite 308056009

Front Handle Assembly

Note: (Inc. Key Nos. 26-29)

$22.99

$

In Stock, only 1 left!

0

24

Homelite 526760001

Front Handle w/Grip

$17.99

$

In Stock, only 1 left!

0

25

Homelite 660857001

Screw (1/4-20 x 1 in., Sq. Hd.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

26

Homelite 639167001

Front Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

27

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

Homelite 120900107

High Altitude Kit (Walbro)

Note: Not Shown

$15.99

$

Usually ships in 3-7 days

0

Homelite 000998216

Spark Arrestor Kit
(Superseded to 986179001)

$

$

Not available

Homelite 991000428

Operator's Manual

$

$

Not available
