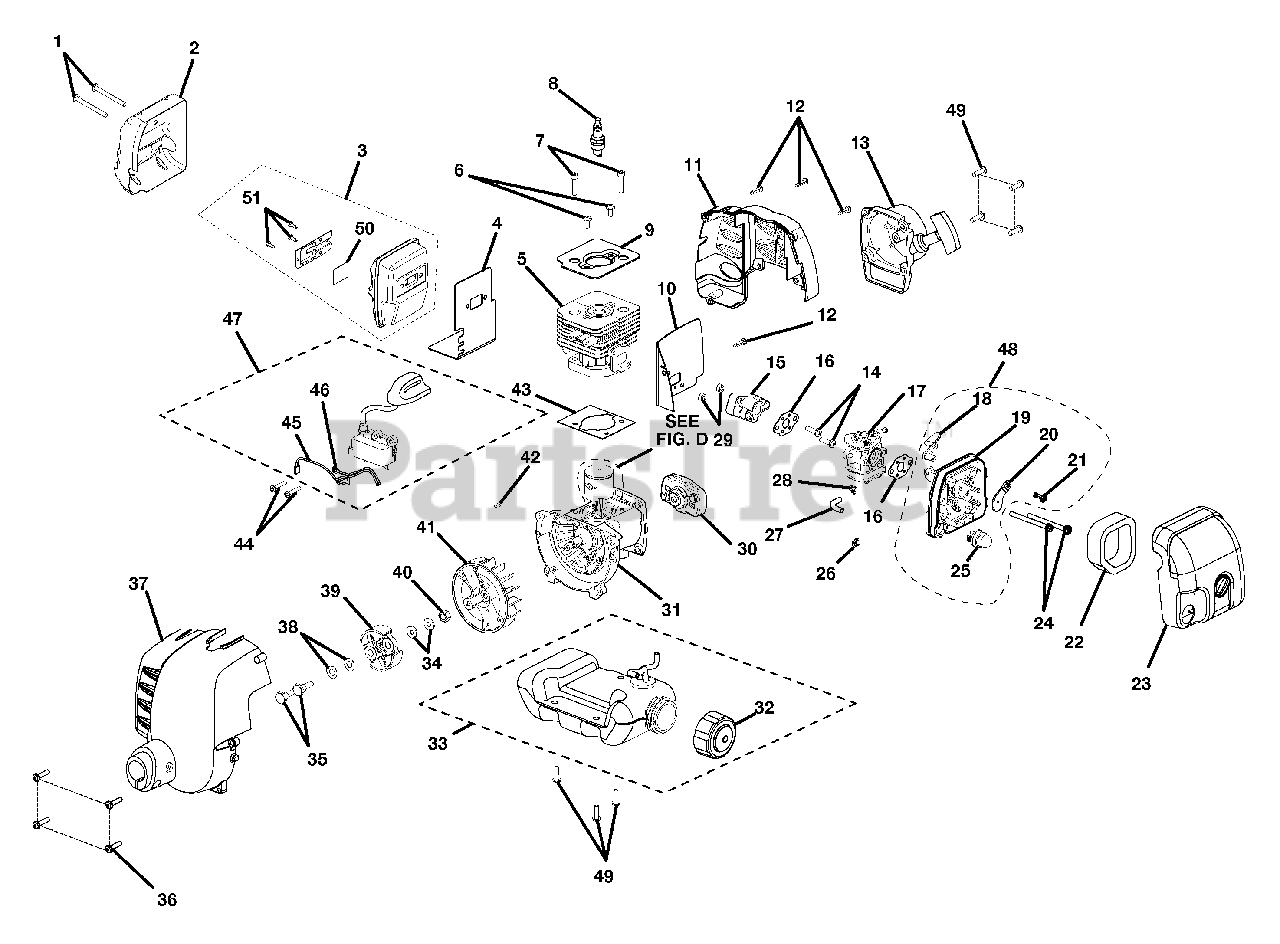

51952 - Toro String Trimmer (SN: 260000001 - 999999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Homelite 660347001

SCREW (M5 X 50 mm TORX SLOTTED RECESSED PAN HD.)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 638027002

HEAT SHIELD

$

$

Not available

3

Homelite 300748015

MUFFLER ASSEMBLY
(Superseded to 300748021)

$93.99

$

Usually ships in 3-7 days

0

4

Homelite 630002006

MUFFLER GASKET
(Superseded to 6300206)

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 640570016

CYLINDER
(Superseded to 640570026)

$35.99

$

In Stock, only 1 left!

0

6

Homelite 660351002

SCREW (M5 X 10 in. TORX RECESSED PAN HD.)
(Superseded to 983660005)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660342001

SCREW (M5 X 22 mm SOCKET HD.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 870170001

SPARK PLUG

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 630002021

CYLINDER PLATE

$1.49

$

In Stock, only 3 left!

0

10

Homelite 900711006

INSULATOR GASKET

$

$

Not available

11

Homelite 590470001

ENGINE HOUSING, REAR
(Superseded to 5947001)

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 660563001

SCREW (M4 X 16 mm TORX RECESSED PAN HD.)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 308430001

STARTER RECOIL ASSEMBLY
(Superseded to 308430016)

$

$

Not available

14

Homelite 660344003

SCREW (M5 X 31 mm Torx SLOTTED RECESSED PAN HD.)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 518329001

HEAT DAM INSULATOR

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 900711003

CARBURETOR GASKET
(Superseded to 9071103)

$

$

Not available

17

Homelite 308480001

CARBURETOR ASSEMBLY

$

$

Not available

18

Homelite 590458001

CHOKE LEVER
(Superseded to 5945801)

$

$

Not available

19

Homelite 518130001

CARBURETOR PLATE

$3.99

$

In Stock, only 1 left!

0

20

Homelite 590946001

CHOKE PLATE
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

21

Homelite 660345001

SCREW (M4 X 12 mm SLOTTED RECESSED PAN HD.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 560873001

ELEMENT
(Superseded to 5687301)

$

$

Not available

23

Homelite 308207004

COVER ASSEMBLY
(Superseded to 308207002)

$

$

Not available

24

Homelite 660346001

SCREW (M5 X 60 mm, SLOTTED RECESSED PAN HD. MACHINE)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 300780002

PRIMER ASSEMBLY
(Superseded to 01183)

$

$

Not available

26

Homelite 690700001

HOSE CLIP
(Superseded to 6970001)

$1.99

$

In Stock, Qty 6

0

27

Homelite 560880002

FUEL LINE
(Superseded to 5688002)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 690699001

HOSE CLIP
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 690840001

NUT (M5 x .8 mm)
(Superseded to 983619014)

$

$

Not available

30

Homelite 308004001

PULLEY ASSEMBLY

$17.99

$

Usually ships in 3-7 days

0

31

Homelite 300749004

CRANKCASE ASSEMBLY

$113.99

$

Usually ships in 3-7 days

0

32

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

33

Homelite 300757002

FUEL TANK ASSEMBLY
(Superseded to 3075702)

Note: (INCLUDES KEY NO. 32)

$

$

Not available

34

Homelite 690695001

WASHER
(Superseded to 983788071)

$

$

Not available

35

Homelite 660353001

CLUTCH SCREW

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 660344001

SCREW (M5 X 20 mm TORX SLOTTED RECESSED PAN HD.)
(Superseded to 6634401)

$

$

Not available

37

Homelite 300754010

FRONT HOUSING ASSEMBLY
(Superseded to 3075403)

$

$

Not available

38

Homelite 690696001

CURVED WASHER
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

39

Homelite 300756001

CLUTCH ASSEMBLY
(Superseded to 300756007)

$

$

Not available

40

Homelite 690689001

ROTOR NUT
(Superseded to 6968901)

$

$

Not available

41

Homelite 640574001

ROTOR
(Superseded to 6457401)

$

$

Not available

42

Homelite 690688001

WOODRUFF KEY (10 mm X 3 mm)
(Superseded to 983784006)

$

$

Not available

43

Homelite 900709001

GASKET
(Superseded to 9070901)

$

$

Not available

44

Homelite 660349001

SCREW (M4 X 22 mm TORX SLOTTED RECESSED PAN HD.)

$1.99

$

In Stock, Qty 5

0

45

Homelite 290143001

LEAD ASSEMBLY, BLACK
(Superseded to 2914301)

$3.49

$

Usually ships in 3-7 days

0

46

Homelite 290143002

LEAD ASSEMBLY, RED
(Superseded to 2914302)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 290178004

COIL BOOT ASSEMBLY
(Superseded to 290178003)

Note: (INCLUDES KEY NOS. 45 & 46)

$

$

Not available

48

Homelite 308478001

FILTER HOUSING ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

49

Homelite 660351001

SCREW (M5 X 16 MM TORX SLOTTED)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

50

Homelite 638268001

SCREEN
(Superseded to 984753001)

$2.99

$

In Stock, only 1 left!

0

51

Homelite 660870001

SCREW (RECESS PAN HD)
(Superseded to 984759001)

$

$

Not available

52

Homelite 000998216

SPARK ARRESTOR KIT
(Superseded to 986179001)

Note: (NOT SHOWN INC. KEY NOS. 4, 50, AND 51)

$

$

Not available
