51945 - Toro Multi-Tool Powerhead (SN: 311000001 - 999999999) Figure A Parts Diagram

Multi-Tool Powerhead

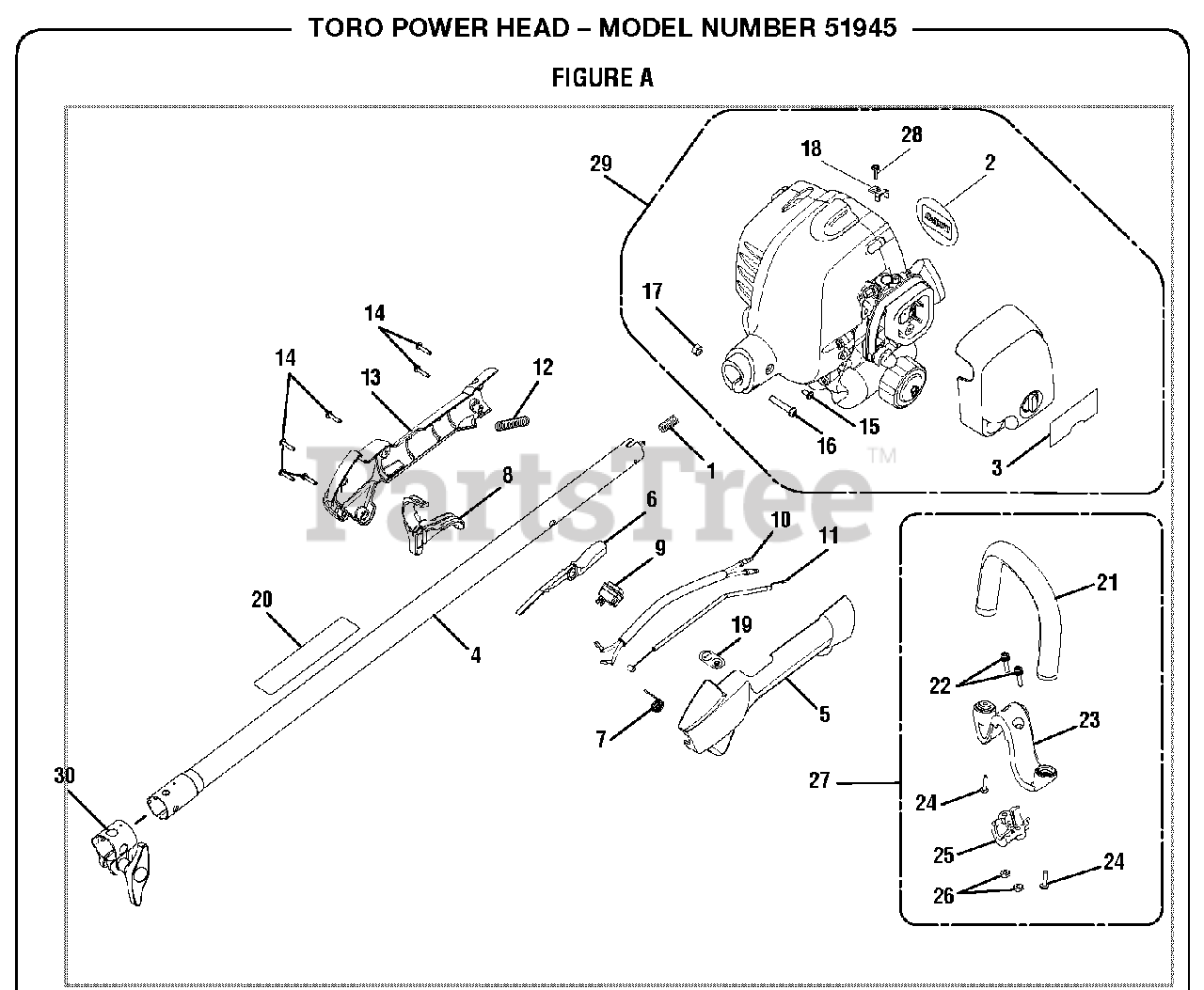

Figure A Parts Diagram

  • Title
1

Homelite 678906001

Compression Spring

$1.49

$

In Stock, only 2 left!

0

2

Homelite 940865001

Logo Plate

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 940686099

Lower Start Label

$

$

Not available

4

Homelite 308159015

Upper Shaft Assembly

Note: (Inc. Key Nos. 20 and 30)

$

$

Not available

5

Homelite 518122001

Rear Handle Support
(Superseded to 983621001)

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 518125001

Lock-off Button
(Superseded to 983623001)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 690694002

Trigger Spring

$1.99

$

In Stock, only 4 left!

0

8

Homelite 518124001

Trigger
(Superseded to 983620001)

$

$

Not available

9

Homelite 760700001

On/Stop Switch

$4.49

$

In Stock, only 1 left!

0

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 308225003

Throttle Cable

$2.99

$

In Stock, only 3 left!

0

12

Homelite 518210004

Corrugated Tube
(Superseded to 983632003)

$

$

Not available

13

Homelite 518123001

Rear Handle Cover
(Superseded to 983622001)

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 660563002

Screw (M4 x 16 mm)

$1.99

$

In Stock, Qty 6

0

15

Homelite 660669001

Screw (#8-16 x 1/2 in., Tri-Lobular)

$1.49

$

In Stock, only 3 left!

0

16

Homelite T660697001

Screw (M6 x 1-30 mm)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

18

Homelite 638133001

Throttle Cable Clamp
(Superseded to 985255001)

$

$

Not available

19

Homelite 940864003

On/Stop Label

$

$

Not available

20

Homelite 940657034

Warning Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 000998535

Front Handle w/Grip
(Superseded to 000998217)

$

$

Not available

22

Homelite 660653005

Screw (#12-24 x 1 in., Slotted Torx)

$

$

Not available

23

$3.99

$

Usually ships in 3-7 days

0

24

Homelite 660637002

Screw (10-14 x 1 in.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 518020001

Clamp
(Superseded to PS04072)

$4.99

$

In Stock, only 2 left!

0

26

Homelite 678106001

Hex Nut (12-24)
(Superseded to 81068)

$

$

Not available

27

Homelite 308056003

Front Handle Assembly

$

$

Not available

28

Homelite 660734001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 3 left!

0

29

Homelite 308466012

Powerhead Assembly

$

$

Not available

30

Homelite 308045008

Boom Clamp

$

$

Not available

Homelite 988000574

Operator's Manual

$

$

Not available
