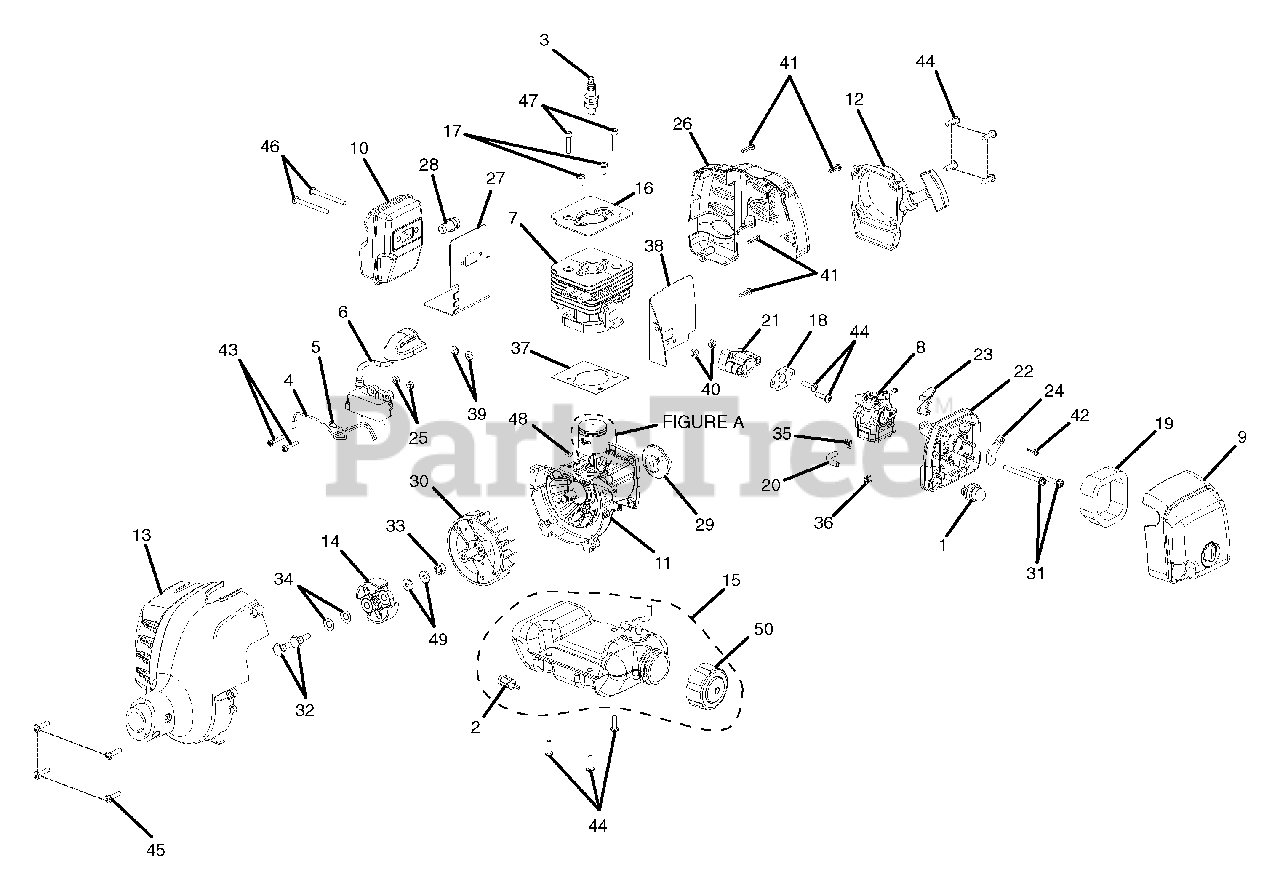

51930 - Toro String Trimmer (SN: 230000001 - 999999999) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Homelite 3078001

Primer Assembly
(Superseded to 01183)

$

$

Not available

2

Homelite PS03380

Fuel Filter
(Superseded to 300759003)

$

$

Not available

3

Homelite 8714402

Spark Plug
(Superseded to 98217S)

$4.49

$

In Stock, Qty 20+

0

4

Homelite 2914301

Lead Assembly,Black

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 2914302

Lead Assembly,Red

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 2917801

Coil, Boot, Assembly

$

$

Not available

7

Homelite 6457003

Cylinder
(Superseded to 640570023)

$35.99

$

In Stock, only 1 left!

0

8

Homelite 3074502

Carburetor Assembly

$

$

Not available

9

Homelite 3074701

Cover Assembly

$2.99

$

In Stock, Qty 5

0

10

Homelite 3074802

Muffler Assembly

$

$

Not available

11

Homelite 3074902

Crankcase Assembly

$

$

Not available

12

Homelite 3075301

Starter Recoil Assembly

$

$

Not available

13

Homelite 3075403

Front Housing Assembly

$

$

Not available

14

Homelite 3075601

Clutch Assembly
(Superseded to 300756007)

$

$

Not available

15

Homelite 3075702

Fuel Tank Assembly
(Superseded to 308675063)

$

$

Not available

16

Homelite 6300221

Cylinder Plate
(Superseded to 630002021)

$1.49

$

In Stock, only 3 left!

0

17

Homelite 983660005

Screw, (M5 x 0.8x 10 in.Torx Recessed Pan HD., Machine)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 9071103

Carburetor Gasket

$

$

Not available

19

Homelite 5687301

Element

$

$

Not available

20

Homelite 5688002

Tubing, Plastic Rubber

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 5994701

Insulator, Heat Dam

$

$

Not available

22

Homelite 5994501

Carburetor Plate

$

$

Not available

23

Homelite 5945801

Choke Lever
(Superseded to 590458001)

$

$

Not available

24

Homelite 5994601

Choke Plate

$1.99

$

In Stock, only 1 left!

0

25

Homelite 5946201

Ignition Coil Spacer

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 5947001

Engine Housing, Rear

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 6300206

Muffler Gasket

$4.99

$

Usually ships in 3-7 days

0

28

Homelite 6300210

Spark Arrester

$

$

Not available

29

Homelite 6300217

Pulley

$4.49

$

Usually ships in 3-7 days

0

30

Homelite 6457401

Rotor, Permanent Magnet

$

$

Not available

31

Homelite 6634601

Screw (M5 x 0.8 x 60 mm, Slotted Recessed Pan HD. Machine)
(Superseded to 660346001)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 6635301

Clutch Screw

$2.49

$

In Stock, only 3 left!

0

33

Homelite 6968901

Rotor Nut

$

$

Not available

34

Homelite 6969601

Curved Washer

$1.99

$

In Stock, only 3 left!

0

35

Homelite 6969901

Hose Clip

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 6970001

Hose Clip

$1.99

$

In Stock, Qty 6

0

37

Homelite 9070901

Gasket

$

$

Not available

38

Homelite 9071102

Insulator Gasket

$

$

Not available

39

Homelite 982719005

Type A, Plain Washer (3/16 x 7/16 x 3/64, Steel Zink)

$1.49

$

In Stock, only 1 left!

0

40

Homelite 983619014

Nut, (M5 x .8 mm) Black Oxide

$

$

Not available

41

Homelite 983638009

Screw (M4 x 1.75 x 16 mm, Type TT, Slotted Recessed Pan)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

42

Homelite 983645005

Screw (M4 x 1.75 x 12 mm, Type TT, Slotted Recessed Pan)

$1.99

$

In Stock, only 4 left!

0

43

Homelite 6634901

Screw (M4 x 0.7 x 22 mm, Torx Recessed Pan HD. Machine)

$

$

Not available

44

Homelite 6635101

Screw (M5 x 0.8 x 16 mm, Torx Recessed Pan HD. Machine)

$1.99

$

In Stock, only 3 left!

0

45

Homelite 6634401

Screw (M5 x 0.8 x 20 mm, Torx Recessed Pan HD. Machine)

$

$

Not available

46

Homelite 983660057

Screw (M5 x 0.8 x 50 mm, Torx Recessed Pan HD. Machine)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 6634201

Screw (M5 x 0.8 x 22 mm, Socket Head Cap, Black Oxide)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 983784006

Woodruff Key (10 mm x 3.7 mm x 3 mm)

$

$

Not available

49

Homelite 983788071

Washer

$

$

Not available

50

Homelite A09116

Fuel Cap
(Superseded to 300758006)

$

$

Not available
